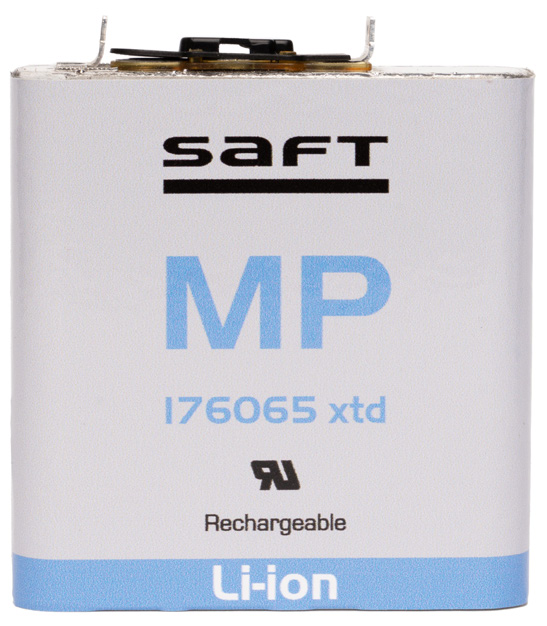

MP 176065 xtd Li-ion Cell
3.65 V, 5.6 Ah (20.4 Wh) medium prismatic Li-ion cell for -40 °C to +85 °C; the ExoMars Rover battery is built from MP 176065 xtd cells.
Typed specifications24 values
Discloses 6 of 8 fields engineers filter by in this category (category median 3).
- Energy
- 20.4 Wh Nominal energy · datasheet p.1
- Mass
- 135 g typical weight · datasheet p.1 135 g typ.
- Capacity
- 5.6 Ah typical, at C/5 rate, +25°C, 2.5V cut-off · datasheet p.1
- Cell chemistry
- Li-ion (unspecified) Rechargeable Li-ion cell · datasheet p.1
- Envelope (L×W×H)
- 18.65 x 60.5 x 68.7 mm datasheet p.1 18.65 x 60.5 x 68.7 thickness x width x height (sleeved cell)
- Supply voltage
- 3.65 V nom. · datasheet p.1
- Operating temperature
- -40–85 °C product page -40–85 °C operating temperatures, discharge
- Max continuous discharge current
- 11 A continuous, Continuous · datasheet p.1 22 A pulse, Pulses | 11 A max · recommended maximum discharge current, continuous
- Nominal voltage
- 3.65 V nom. · Nominal voltage · datasheet p.1
- Survival temperature
- -40–85 °C storage & transportation, allowable · datasheet p.1
- Cell model
- MP 176065 xtd datasheet p.1
- Max charge current
- 5.6 A continuous, Maximum continuous · datasheet p.1 5.6 A max · maximum continuous charge current
- Pulse discharge current
- 22 A recommended maximum discharge current, pulses · datasheet p.1
- Specific energy
- 150 Wh/kg datasheet p.1
- Protections
- over-charge (OV) datasheet p.2 over-discharge (UV) | short circuit
- Charge temperature range
- -30–85 °C operating temperatures, charge · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Chemistry
- Li-ion
- Typical capacity
- 5.6 Ah
- Nominal voltage
- 3.65 V
- Nominal energy
- 20.4 Wh
- Max continuous discharge current
- 11 A
- Pulse discharge current
- 22 A
- Dimensions
- 18.65 x 60.5 x 68.7 mm
- Mass
- 135 g
- Energy density
- 264 Wh/l, 150 Wh/kg
- Charging voltage
- 4.2 V
- Max continuous charge current
- 5.6 A
- Operating temperature (discharge)
- -40 to +85 °C
- Charge temperature
- -30 to +85 °C
- Casing
- Aluminium, hermetically sealed
- IEC cell designation
- INP19/61/69
About
Saft MP 176065 xtd is a medium prismatic rechargeable lithium-ion cell in an aluminium, hermetically sealed casing, designed for long calendar, cycling and float life in unregulated temperature environments from -40 °C to +85 °C. Saft states that the ExoMars Rover battery system is based on MP 176065 Integration xtd cells, and lists the MP range for launcher batteries. Cells are supplied integrated into battery assemblies with electronic protection; Saft designs the battery system for the application. Figures below are from the Saft product datasheet.
