MP 176065 xlr Li-ion Cell

Saft

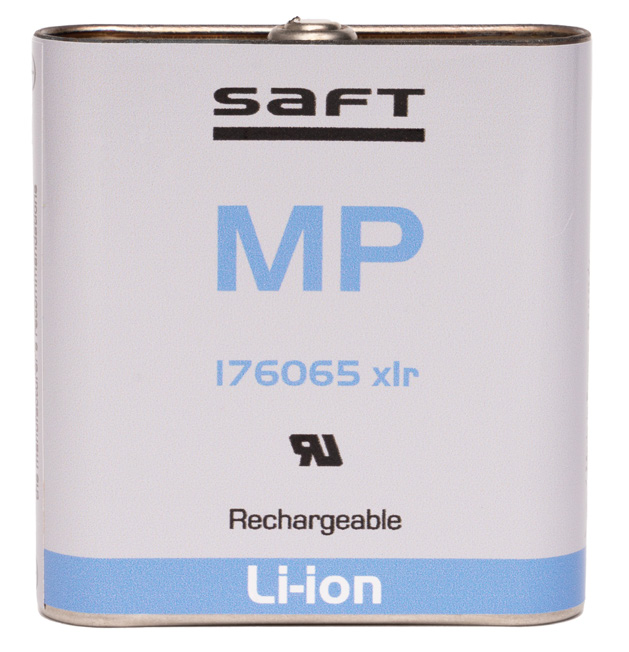

MP 176065 xlr Li-ion Cell

3.65 V, 6.8 Ah (24.8 Wh) high-energy medium prismatic Li-ion cell with more than 1800 cycles at 100% DoD.

Typed specifications28 values

Discloses 7 of 8 fields engineers filter by in this category (category median 3).

Energy
24.8 Wh
Nominal energy · datasheet p.1
Mass
150 g
typical weight, ~150 g · datasheet p.1 150 g typ.
Capacity
6.8 Ah
typical, at C/5 rate, +25°C, 2.5V cut-off · datasheet p.1
Cell chemistry
Li-ion (unspecified)
Rechargeable Li-ion cell · datasheet p.1
Envelope (L×W×H)
19.6 x 60.1 x 65.2 mm
datasheet p.1 19.6 x 60.1 x 65.2 thickness x width x height (sleeved cell)
Cycle life
1 800
more than 1800 cycles at 100% DoD at C/2 discharge · datasheet p.1
Supply voltage
3.65 V
nom. · datasheet p.1
Operating temperature
-30–60 °C
Charge · datasheet p.1 -35–60 °C operating temperatures, discharge
Max continuous discharge current
14 A
Continuous · datasheet p.1 27 A Pulses  |  14 A max · recommended maximum discharge current, continuous
Nominal voltage
3.65 V
nom. · Nominal voltage · datasheet p.1
Survival temperature
-40–60 °C
Allowable Storage & transportation · datasheet p.1 10–30 °C Recommended Storage & transportation  |  -40–60 °C storage & transportation, allowable
Cell model
MP 176065 xlr
datasheet p.1
Max charge current
6.8 A
Maximum continuous charge · datasheet p.1 6.8 A max · maximum continuous charge current
Pulse discharge current
27 A
recommended maximum discharge current, pulses · datasheet p.1
Depth of discharge (for the cycle life)
100 %
more than 1800 cycles at 100% DoD at C/2 discharge · datasheet p.1
Specific energy
165 Wh/kg
datasheet p.1
Protections
over-charge (OV)
datasheet p.2 over-discharge (UV)  |  short circuit
Charge temperature range
-30–60 °C
operating temperatures, charge · datasheet p.1

Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.

As published by the supplier15 lines, in the manufacturer's own wording
Chemistry
Li-ion
Typical capacity
6.8 Ah
Nominal voltage
3.65 V
Nominal energy
24.8 Wh
Max continuous discharge current
14 A
Pulse discharge current
27 A
Dimensions
19.6 x 60.1 x 65.2 mm
Mass
150 g
Cycle life
> 1800 cycles at 100% DoD
Charging voltage
4.2 V
Max continuous charge current
6.8 A
Operating temperature (discharge)
-35 to +60 °C
Charge temperature
-30 to +60 °C
Casing
Stainless steel, hermetically sealed
IEC cell designation
INP20/61/66

About

Saft MP 176065 xlr is a high-energy medium prismatic rechargeable lithium-ion cell in a stainless steel, hermetically sealed casing, designed for long operating life under cycling in temperature environments from -35 °C to +60 °C. Saft lists the MP range for launcher batteries. Cells are supplied integrated into battery assemblies with electronic protection. Figures below are from the Saft product datasheet.
