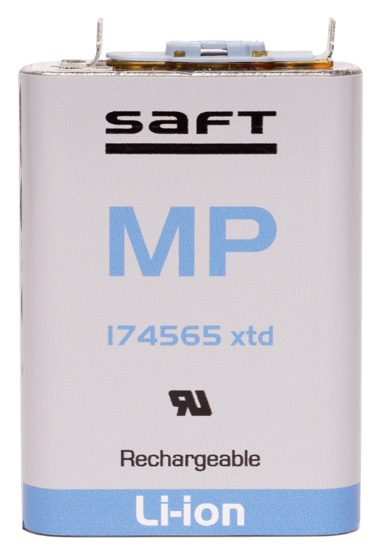

MP 174565 xtd Li-ion Cell
3.65 V, 4.0 Ah (14.6 Wh) medium prismatic Li-ion cell with an operating range of -40 °C to +85 °C.
Typed specifications26 values
Discloses 6 of 8 fields engineers filter by in this category (category median 3).
- Energy
- 14.6 Wh Nominal energy · datasheet p.1 14.6 Wh nom.
- Mass
- 97 g typical weight · datasheet p.1 97 g sleeved cell | 97 g typ.
- Capacity
- 4 Ah typical, at C/5 rate, +25°C, 2.5V cut-off · datasheet p.1
- Cell chemistry
- Li-ion (unspecified) Rechargeable Li-ion cell · datasheet p.1
- Envelope (L×W×H)
- 19.6 mm (Thickness) x 45.3 mm (Width) x 68.5 mm (Height) datasheet p.1 19.6 x 45.3 x 68.5 thickness x width x height (sleeved cell)
- Supply voltage
- 3.65 V nom. · datasheet p.1
- Operating temperature
- -40–85 °C product page -40–85 °C operating temperatures, discharge
- Max continuous discharge current
- 8 A Continuous · datasheet p.1 16 A Pulses | 8 A max · recommended maximum discharge current, continuous
- Nominal voltage
- 3.65 V nom. · Nominal voltage · datasheet p.1
- Survival temperature
- -40–85 °C storage & transportation, allowable · datasheet p.1
- Cell model
- MP 174565 xtd datasheet p.1
- Max charge current
- 4 A Maximum continuous · datasheet p.1 4 A max · maximum continuous charge current
- Pulse discharge current
- 16 A recommended maximum discharge current, pulses · datasheet p.1
- Specific energy
- 150 Wh/kg datasheet p.1
- Protections
- over-charge (OV) datasheet p.2 over-discharge (UV) | short circuit
- Charge temperature range
- -30–85 °C operating temperatures, charge · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Chemistry
- Li-ion
- Typical capacity
- 4.0 Ah
- Nominal voltage
- 3.65 V
- Nominal energy
- 14.6 Wh
- Max continuous discharge current
- 8 A
- Pulse discharge current
- 16 A
- Dimensions
- 19.6 x 45.3 x 68.5 mm
- Mass
- 97 g
- Energy density
- 264 Wh/l, 150 Wh/kg
- Charging voltage
- 4.2 V
- Max continuous charge current
- 4 A
- Operating temperature (discharge)
- -40 to +85 °C
- Charge temperature
- -30 to +85 °C
- Casing
- Aluminium, hermetically sealed
- Saft part number
- 07946G
About
Saft MP 174565 xtd is a medium prismatic rechargeable lithium-ion cell in an aluminium, hermetically sealed casing, designed for long calendar, cycling and float life in unregulated temperature environments from -40 °C to +85 °C. Saft lists the MP range for launcher batteries. Cells are supplied integrated into battery assemblies with electronic protection. Figures below are from the Saft product datasheet.
