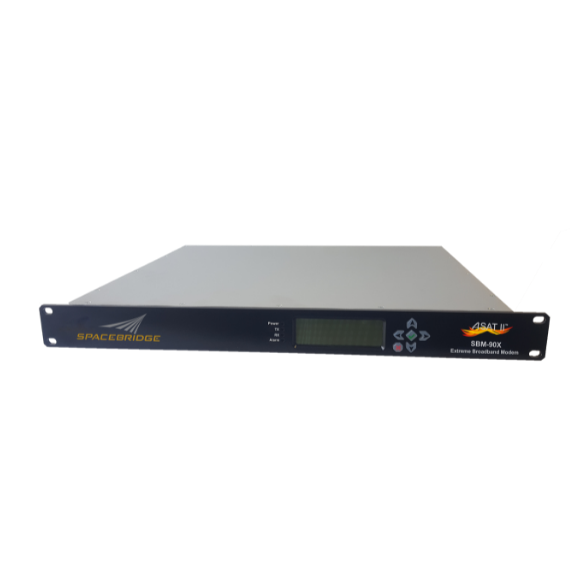

SBM-90X Wideband GEO SCPC Professional Modem
SpaceBridge Inc.
The SBM-90X is a telco-grade, 19-inch rack-mountable modem offering high-throughput for demanding satellite communication applications, supporting Software Defined Networks and DVB-S2X.
Typed specifications54 values
Discloses 7 of 11 fields engineers filter by in this category (category median 6).
- Mass
- 5 000 g nom. · ~5Kg · datasheet p.2 5 000 g
- Link protocols and waveforms
- DVB-S2X EN 302 307-2 · datasheet p.2 DVB-S2X (EN 302 307-2) RX | DVB-S2X (EN 302 307-2) TX
- Frequency range
- 950–2 150 MHz RX L-band · datasheet p.2 950–2 150 MHz RX, terminal IFL input | 950–2 150 MHz TX L-band | 950–2 150 MHz TX, terminal IFL output
- Envelope (L×W×H)
- 435 x 45 (1RU) x 292 mm (W x H x D) datasheet p.2 435 x 45 x 292 W x H x D, 1RU
- Data rate
- 738 000 kbps RX · datasheet p.2 738 000 kbps TX | 1 470 000 kbps max · aggregate throughput | 738 000 kbps max · RX forward link | 738 000 kbps max · TX return link
- Modulation
- QPSK DVB-S2X ACM, QPSK up to 256APSK · datasheet p.2 QPSK up to 256APSK LDPC/ BCH RX | QPSK up to 256APSK LDPC/ BCH TX | 32APSK RX | 64APSK RX +11
- Power consumption
- 150 W AC · datasheet p.2 150 W power input AC
- Data interface
- Ethernet 2 x 1GbT user data Eth RJ-45 ports · datasheet p.2 Ethernet 2 x 1GbT user data RJ-45 + 1 management | Ethernet modem management | Ethernet user data
- Function
- modem datasheet p.1
- Link use
- ground modem SCPC trunking modem · datasheet p.1
- Frequency band
- L datasheet p.1 C Matching variety of outdoor / RF options | X Matching variety of outdoor / RF options | Ku Matching variety of outdoor / RF options | Ka Matching variety of outdoor / RF options
- RF connector
- N RX IFL input, 50 Ohm · datasheet p.2 N Terminal IFL Input | N Terminal IFL Output | N TX IFL output, 50 Ohm
- Connector
- N type RX IFL Input · datasheet p.2 N type TX IFL Output
- Channel coding (FEC)
- LDPC datasheet p.2 BCH
- Data interface speed
- 1 000 Mbps 1GbT Ethernet RJ-45 · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Aggregate throughput
- Up to 1.47 Gbps (Symmetric 723Mbs)
- Packet per second symmetric
- Over 1 million (2M pps total)
- Symbol rates
- Up to 125 Msymbols/second
- Mass
- ~5Kg
- Dimensions
- 435 x 45 (1RU) x 292 mm (W x H x D)
- Power
- 150 W AC
- Frequency
- 950 – 2150 MHz
- Data rate
- Up to 738 Mbps
- Interface
- 2 x 1GbT user data Eth RJ-45 ports, 1x out-of-band modem management Eth port
About
The SBM-90X is a telco-grade professional modem designed to provide unparalleled high-throughput for the most demanding applications, supporting Software Defined Networks. This 19-inch rack-mountable unit features an Active LCD front panel for easy configuration, making it suitable for environments requiring vast deployments for both hub-less point-to-point and point-to-multipoint topologies. The SBM-90X offers enormous flexibility and dynamism.
It is SpaceBridge’s Advanced Ethernet L2 Trunking Modem, offering wideband symbol rates up to 125 Msymbols/second. The SBM-90X was engineered with minimal implementation loss to deliver near-theoretical performance for DVB-S2X (EN 302 307-2) across the full range of available high-efficiency MODCOD selections. It can prioritize traffic based on IP DSCP markings, which, in conjunction with its two-way Adaptive Coding Modulation (ACM), ensures high-priority traffic is delivered robustly and efficiently.
Key features include up to 1.47 Gbps aggregate throughput (symmetric 723 Mbps), Ethernet Jumbo frame support, over 1 million packets per second symmetric (2M pps total), Software Defined Network support, indoor 19-inch rack-mountable design, LCD Active Front panel for easy configuration, Layer-2 transparent support, L3 DSCP Quality of Service (QoS) support within L2 stream, and Point-to-Point DVB-S2/S2X with Adaptive Coding and Modulation (ACM).
Use cases include satisfying low to high bandwidth trunks with ACM-enabled S2X carriers, ideal for broadband Internet trunks, community Internet Access Distribution, 3G/4G/LTE/5G aggregation cellular backhaul, mission-critical backup or disaster recovery links, surveillance, government, defense and military applications, GEO applications, dynamic video-stream contribution, and fiber mission-critical backup links.
