EDDIE
Spacemanic s.r.o.

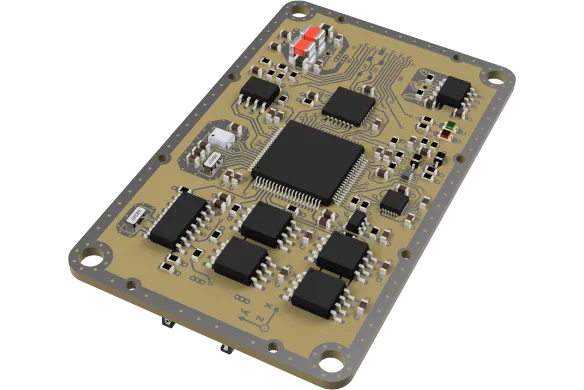

EDDIE is a compact, low-power on-board computer module designed for space applications, featuring an MSP430 microcontroller, FreeRTOS, and a variety of interfaces.
Typed specifications49 values
Discloses 7 of 13 fields engineers filter by in this category (category median 5).
- Processor
- MSP430FR5994 mixed-signal microcontroller datasheet p.4 MSP430FR5996 product overview states MSP430FR5994 mixed-signal microcontro…
- Mass
- 25 g datasheet p.4
- CPU clock
- 16 MHz HF crystal (LF crystal 32.768 kHz) · datasheet p.5
- Envelope (L×W×H)
- 67 x 42 x 7.5 mm datasheet p.4
- Mass storage
- 0.001 GB data storage external FRAM, 6x1 MiB (6 FRAM ICs CY15B108QN, e… · datasheet p.5 0.006 GB external FRAM
- Operating system
- FreeRTOS datasheet p.5 other alt. Custom | Custom alternative
- Supply voltage
- 5 V nom. · for CAN · datasheet p.4 5 V for CAN | 3.3 V Power Supply | -0.2–3.6 V power input, min / max (typ. 3.3 V) | 3.3 V nom. · power supply
- Power consumption
- 0.06 W nom. · average · datasheet p.4 0.06 W average | 0.1 W peak | 0.1 W max · peak
- Data interface
- other ADC · datasheet p.5 CAN CSP CAN | I2C CSP I2C | I2C CSP I2C up to 400 kHz; isolated plain I2C (I2C-1) up to 400 kHz | CAN CSP over CAN, up to 1 Mbit/s, interfaced over SPI CAN IC +12
- Operating temperature
- -40 °C min · datasheet p.4 85 °C max | -40–85 °C
- Processor architecture
- MSP430 / AVR / PIC MSP430FR5996 · datasheet p.5
- Flight software support
- CSP (CubeSat Space Protocol) over I2C, over RS485 KISS and over CAN datasheet p.5
- Connector
- Main J1 board-to-board Molex SlimStack 55650-0688 (motherboard 54363-0689); programming Molex PicoLock 503763-0691 (motherboard 503764-0601) datasheet p.7
- Flight heritage
- on 10+ missions (e.g. LASARsat, CroCube, GRBBeta and external customers) datasheet p.4
- Missions flown
- 10 datasheet p.4 10 min · flight heritage on 10+ missions
- GPIO lines
- 18 up to, 3.3 V range, shares pins with SPI-0, ADC, PWM · datasheet p.5
- RAM type
- FRAM external FRAM data storage · datasheet p.5
- Data interface speed
- 1 Mbps max · CSP CAN, speed up to · datasheet p.5
- Analog inputs
- 5 ADC 5 x 12bit with 3.3 V range · datasheet p.5
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier22 lines, in the manufacturer's own wording
- Operating temperature
- -40°C to +85°C
- Dimensions
- 67 x 42 x 7.5 mm
- Mass
- 25 g
- Power supply
- 3.3 V
- Power supply (2)
- 5 V (for CAN)
- Power consumption
- 60 mW average
- Power consumption (peak)
- 100 mW peak
- Operating system
- FreeRTOS based
- On-board sensors
- Gyro, accelerometer, magnetometer, temperature
- Microcontroller
- MSP430
- Clock speeds
- 32.768 kHz (low power mode)
- Clock speeds (2)
- 16 MHz (standard mode)
- Memory
- 6×1 MiB external FRAM for data storage
- Interfaces (CSP v1)
- 1x I2C & 1x isolated I2C
- Interfaces (CSP v1) (2)
- 1x RS485
- Interfaces (CSP v1) (3)
- 1x UART
- Interfaces (CSP v1) (4)
- 1x CAN
- Interfaces (CSP v1) (5)
- 1x SPI
- Interfaces (CSP v1) (6)
- 3x PWM
- Interfaces (CSP v1) (7)
- 8x GPIO (4x ADC: 12-bit, 3.3 V range)
- Flight heritage
- Yes
- ITAR
- Free
About
EDDIE is an on-board computer module specifically designed for space applications, offering a compact form factor and low power consumption. It is built around an MSP430 microcontroller and runs on a FreeRTOS-based operating system. The module includes integrated on-board sensors such as a gyroscope, accelerometer, magnetometer, and temperature sensor, making it suitable for various satellite subsystems. It provides extensive connectivity options, including multiple I2C, RS485, UART, CAN, SPI, PWM, and GPIO interfaces, with some I2C and ADC channels being isolated. The module comes with 6×1 MiB external FRAM for data storage. The product package includes the module with an aluminum cover, a USS Module for testing and development, a debug cable, one hour of engineering support, and shipping in a hardcase. Software development is supported through an open-source SDK. EDDIE is designed to operate in extreme temperatures ranging from -40°C to +85°C and is ITAR-free.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
