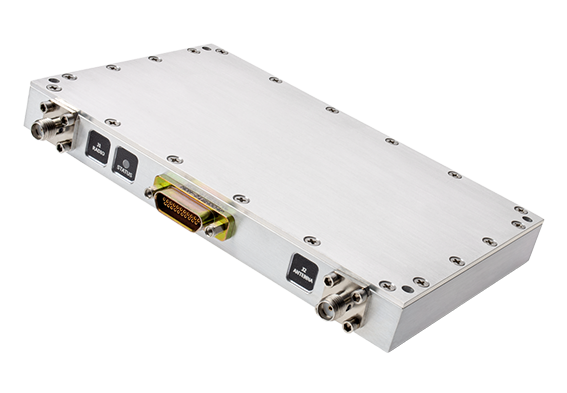

TA4010
Triad RF Systems
4400-5000 MHz, 50 W GaN power amplifier for C-band military and commercial radio systems.
Typed specifications31 values
Discloses 6 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- C datasheet p.1
- Mass
- 369 g 13 oz · datasheet p.2
- Frequency range
- 4 400 MHz product page 4 400 MHz min | 5 000 MHz max | 4 400–5 000 MHz operating frequency | 5 000 MHz
- Envelope (L×W×H)
- 5.3 x 3.25 x 0.6 in product page 134.6 x 82.6 x 15.2 L x W x H; 5.3 x 3.25 x 0.6 in
- TX RF output power
- 50.12 W nom. · saturated power output, CW sweep at design limit, typ. · datasheet p.2 10 W 64QAM Power Output | 39.81 W BPSK Power Output | 50 W headline rating | 50.12 W Saturated Power Output +2
- Modulation
- 64QAM datasheet p.2 BPSK
- Supply voltage
- 28 V nom. · typ. · datasheet p.2 12 V min | 32 V max | 12–32 V supply voltage range
- Operating temperature
- -40–85 °C housing temperature · datasheet p.3
- Function
- other power amplifier (class AB GaN) · datasheet p.1
- Link use
- other military or commercial radio systems, unmanned systems, vehic… · datasheet p.1
- RF connector
- SMA RF input, SMA-F · datasheet p.3 SMA RF output, SMA-F
- Connector
- Power/signal: MDM-21SH016P-A174 (mating M83513/03-C03C) datasheet p.3
- Survival temperature
- -55–85 °C storage temperature · datasheet p.3
- RF gain
- 26 dB nom. · small signal gain, typ. · datasheet p.2 23 dB min · small signal gain
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Frequency low
- 4400 MHz
- Frequency high
- 5000 MHz
- P1db dbm (Typ)
- 46
- Tx gain
- 26 dB
- Supply voltage (Vdc)
- 12-32
- Psat (Typ)
- 47
- Dimensions
- 5.3 x 3.25 x 0.6 in
About
The TA4010 Power Amplifier is a class AB GaN module with an operating frequency range of 4400 to 5000 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +12 to +32 VDC and a saturated RF output power of +47 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are key. Features: Temperature Monitor Output, Over-Temperature Protection, Amplifier Status Output. Applications: Military or Commercial Radio Systems, Unmanned Systems, Vehicle Systems, Aircraft Systems, Fixed Site Infrastructure.
