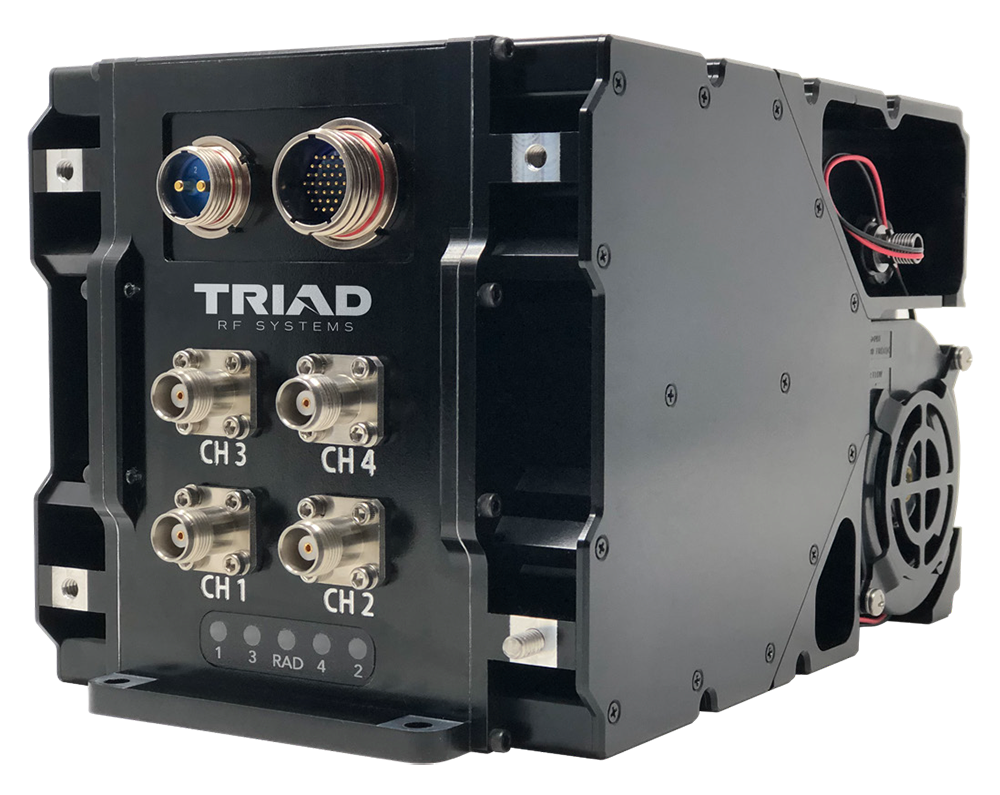

THPR1060
Triad RF Systems
Range Enhanced Silvus StreamCaster S-Band radio system, 4-channel MIMO with 120 W total amplified Tx power.
Typed specifications49 values
Discloses 6 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- S 2200 - 2500 MHz S-Band coverage · datasheet p.1 S TX and RX
- Mass
- 3 912 g datasheet p.4 3 912 g 138 oz
- Frequency range
- 2 200 MHz min · datasheet p.3 2 500 MHz max | 2 200–2 500 MHz operating frequency
- Envelope (L×W×H)
- 233.93 x 146.55 x 135.89 datasheet p.4 233.93 x 146.55 x 135.89 L x W x H; 9.21 x 5.77 x 5.35 in
- TX RF output power
- 120 W overall · datasheet p.1 30 W per channel | 30 W per channel amplified Tx power | 10 W Per MIMO Stream (20+ Mbps) | 50 W Per MIMO Stream (5 Mbps) +5
- Data rate
- 5 000 kbps power output per MIMO stream 50 W min · datasheet p.3 20 000 kbps min · 20+ Mbps, power output per MIMO stream 10 W min
- Supply voltage
- 28 V nom. · typ. · datasheet p.3 22 V min | 32 V max | 22–32 V supply voltage range
- Power consumption
- 120 W product page 369.6 W 20+ Mbps, max operating (calculated from 13.2 A @ 28V) | 112 W 20+ Mbps, min operating (calculated from 4 A @ 28V) | 510.4 W 5 Mbps, max operating (calculated from 18.2 A @ 28V) | 126 W 5 Mbps, min operating (calculated from 4.5 A @ 28V) +1
- Data interface
- USB datasheet p.2 USB for internal microcontroller | RS-232 for Radio | USB for radio USB0 | USB for radio USB1 +2
- Operating temperature
- -40 °C min · datasheet p.3 55 °C max | -40–55 °C ambient operating temperature
- Function
- transceiver amplified radio with integrated Silvus StreamCaster SC4410-23… · datasheet p.1
- Link use
- other long distance ISR links; UAS, UGV and USV video/data links; m… · datasheet p.1
- RF connector
- TNC antenna RF connectors, TNC-F · datasheet p.4 other Antenna RF, TNC-F
- Connector
- DC: Glenair 801-011-07M10-2PA (mating 801-007-16M10-2SA); Signal: Glenair 801-011-07M13-37PA (mating 801-007-16M13-37SA) datasheet p.4 TNC-F Antenna RF Connectors | 801-011-07M10-2PA DC Connector | 801-011-07M13-37PA Signal Connector
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Radio core
- Silvus
- Band
- S
- Mimo streams
- 4
- Frequency low
- 2200 MHz
- Frequency hi
- 2500 MHz
- Total thpr power
- 120 W
- Dimensions
- 9.21 x 5.77 x 5.35 in
About
The THPR1060 Triad High Power Radio (THPR) contains a Silvus StreamCaster SC4410-235-O radio at its core and combines with Triad’s high-power RF subsystems in a low SWaP package. This 4 channel, S-Band amplified radio integrates the necessary Silvus radio, RF amplification, control circuitry, and interfaces to achieve higher RF output power, greater throughput, and longer link distances than the stand-alone radio. Offering +22 to +32 VDC input voltage, this THPR contains BDAs, RF filtering, and innovative SoC-based monitoring and controls, with real-time power measurement and link diagnostics. Features: 2200-2500 MHz S-Band coverage, 120W (30W per channel) amplified Tx power, integrated Silvus SC4410-235-O MIMO radio, compatible with other Silvus radios and networks, optional cooling fans. Applications: Long distance high data rate ISR links, UAS/UGV/USV video and data links, military MANET, maritime high-throughput LOS/NLOS systems, point-to-point and mesh networking.
