THPR1070
Triad RF Systems
Range Enhanced Silvus StreamCaster C-Band radio system, 4-channel MIMO with 80 W total amplified Tx power.
Typed specifications40 values
Discloses 6 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- C datasheet p.1 C 4700-5000 MHz C-Band coverage
- Mass
- 3 912 g datasheet p.4 3 912 g 138 oz
- Frequency range
- 4 700–5 000 MHz datasheet p.1 4 700–5 000 MHz operating frequency
- Envelope (L×W×H)
- 233.9 x 146.6 x 135.9 L x W x H · datasheet p.4 233.9 x 146.6 x 135.9 LxWxH; 9.21 x 5.77 x 5.35 in
- TX RF output power
- 20 W per channel · datasheet p.1 5 W Per MIMO Stream (20+ Mbps) | 20 W Per MIMO Stream (5 Mbps) | 80 W total | 80 W total, 4x20 W amplified Tx power +2
- Data rate
- 5 000 kbps power output per MIMO stream 20 W · datasheet p.3 20 000 kbps min · 20+ Mbps, power output per MIMO stream 5 W
- Supply voltage
- 28 V nom. · typ. · datasheet p.3 22–32 V Input | 22–32 V Supply | 22–32 V supply voltage range +22 to +32
- Power consumption
- 80 W product page
- Data interface
- Ethernet datasheet p.7 RS232 From Radio | USB Internal Microcontroller | USB Internal Microntoller USB | USB Radio USB0 +4
- Operating temperature
- -45–70 °C Ambient · datasheet p.3 -45–70 °C ambient operating temperature
- Function
- transceiver datasheet p.1
- Link use
- other UAS, UGV and USV video/data links; military MANET; point-to-p… · datasheet p.1
- RF connector
- TNC TNC-F antenna RF connectors · datasheet p.4
- Connector
- DC: Glenair 801-011-07M10-2PA; Signal: Glenair 801-011-07M13-37PA datasheet p.4 TNC-F Antenna RF Connectors | 801-011-07M10-2PA DC Connector | 801-011-07M13-37PA Signal Connector
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Radio core
- Silvus
- Band
- C
- Mimo streams
- 4
- Frequency low
- 4700 MHz
- Frequency hi
- 5000 MHz
- Total thpr power
- 80 W
- Dimensions
- 9.21 x 5.77 x 5.35 in
About

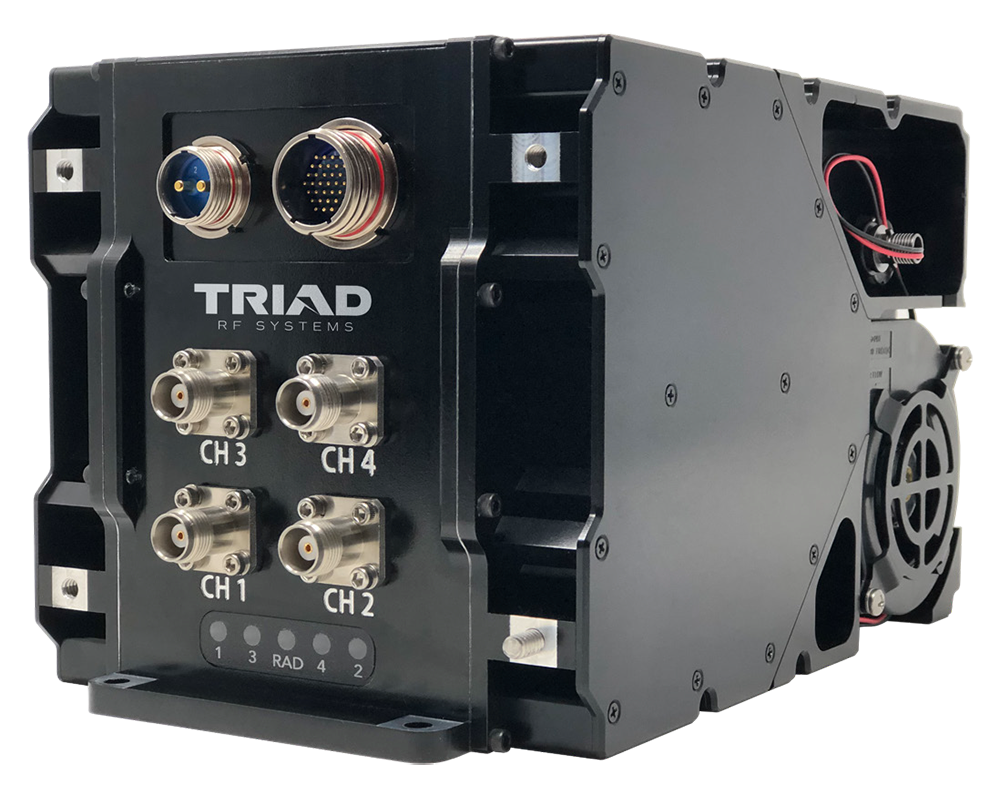

The THPR1070 Triad High Power Radio (THPR) contains a Silvus StreamCaster SC4410-467-O radio at its core and combines with Triad’s high-power RF subsystems in a low SWaP package. This 4 channel, C-Band amplified radio integrates the necessary Silvus radio, RF amplification, control circuitry, and interfaces to achieve higher RF output power, greater throughput, and longer link distances than the stand-alone radio. Offering +22 to +32 VDC input voltage, this THPR contains BDAs, RF filtering, and innovative SoC-based monitoring and controls, with real-time power measurement and link diagnostics. Features: 4700-5000 MHz C-Band coverage, 80W (20W per channel) amplified Tx power, integrated Silvus SC4410-467-O MIMO radio, compatible with other Silvus radios and networks, integrated heatsink and fan. Applications: Long distance high data rate ISR links, UAS/UGV/USV video and data links, military MANET, maritime high-throughput LOS/NLOS systems, point-to-point and mesh networking.
