THPR1080
Triad RF Systems

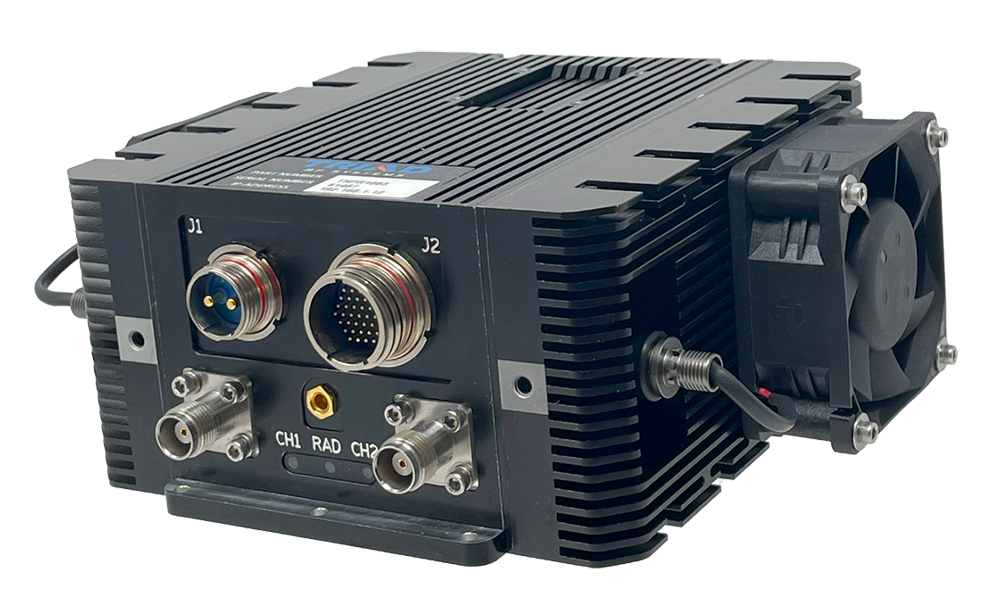

Range Enhanced Silvus StreamCaster C-Band radio system, 2-channel MIMO with 40 W total amplified Tx power.
Typed specifications36 values
Discloses 7 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- C 4400-5000 MHz C-Band coverage · datasheet p.1 C TX and RX
- Mass
- 1 474 g datasheet p.4 1 474 g 52 oz
- Frequency range
- 4 400 MHz min · datasheet p.3 5 000 MHz max | 4 400–5 000 MHz operating frequency
- Envelope (L×W×H)
- 139.7 x 137.7 x 71.1 datasheet p.4 139.7 x 137.7 x 71.1 LxWxH; 5.5 x 5.42 x 2.8 in
- TX RF output power
- 5 W per MIMO Stream (20+ Mbps) · datasheet p.3 20 W per MIMO Stream (5 Mbps) | 40 W total, 2x20 W amplified Tx power | 5 W min · per MIMO stream, 20+ Mbps | 20 W min · per MIMO stream, 5 Mbps
- Data rate
- 5 000 kbps power output per MIMO stream 20 W · datasheet p.3 20 000 kbps min · 20+ Mbps, power output per MIMO stream 5 W
- Supply voltage
- 28 V nom. · typ. · datasheet p.3 16 V min | 32 V max | 16–32 V supply voltage range +16 to +32
- Power consumption
- 40 W product page
- Data interface
- USB datasheet p.2 RS232 | Ethernet
- Operating temperature
- -45 °C min · datasheet p.3 70 °C max | -45–70 °C ambient operating temperature
- Function
- transceiver datasheet p.1
- Link use
- other UAS, UGV and USV video/data links; military MANET; point-to-p… · datasheet p.1
- Link protocol
- proprietary datasheet p.1
- RF connector
- other TNC-F · datasheet p.4 TNC TNC-F antenna RF connectors
- Connector
- DC: Glenair 801-011-07M10-2PA; Signal: Glenair 801-011-07M13-37PA datasheet p.4 TNC-F Antenna RF Connectors | 801-011-07M10-2PA DC Connector | 801-011-07M13-37PA Signal Connector
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Radio core
- Silvus
- Band
- C
- Mimo streams
- 2
- Frequency low
- 4400 MHz
- Frequency hi
- 5000 MHz
- Total thpr power
- 40 W
- Dimensions
- 5.5 x 5.42 x 2.8 in
About
The THPR1080 Triad High Power Radio (THPR) contains a Silvus StreamCaster SC4210P-467-O radio at its core and combines with Triad’s high-power RF subsystems in a low SWaP package. This 2 channel, C-Band amplified radio integrates the necessary Silvus radio with Triad’s RF amplification, control circuitry, and interfaces to achieve higher RF output power, greater throughput, and longer link distances than the stand-alone radio. Offering +16 to +32 VDC input voltage, this THPR contains BDAs, RF filtering, and innovative SoC-based monitoring and controls, with real-time power measurement and link diagnostics. Features: 4400-5000 MHz C-Band coverage, 40W (20W per channel) amplified Tx power, integrated Silvus SC4210P-467-O MIMO radio, compatible with other Silvus radios and networks, optional cooling fans for extended operating temperature range. Applications: Long distance high data rate ISR links, UAS/UGV/USV video and data links, military MANET, maritime high-throughput LOS/NLOS systems, point-to-point and mesh networking.
