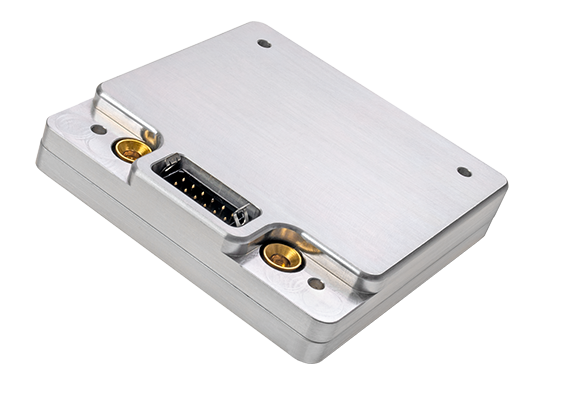

TTRM2002
Triad RF Systems
2200-2500 MHz, 10 W GaN bi-directional amplifier with internal bypass relay and status monitoring.
Typed specifications76 values
Discloses 7 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- S TX/RX · datasheet p.1
- Mass
- 85.05 g datasheet p.2
- Frequency range
- 2 200 MHz min · TX/RX · datasheet p.1 2 500 MHz max · TX/RX | 2 200–2 500 MHz | 2 200–2 500 MHz operating frequency | 2 200–2 500 MHz RX +1
- Envelope (L×W×H)
- 2.3 x 2.3 x 0.45 in datasheet p.2 2.3 x 2.3 x 0.45 L x W x H
- TX RF output power
- 10 W nom. · TX PSat, typ. · datasheet p.1 4 W 16QAM, 36 Mbps | 2 W 64QAM, 54 Mbps | 10 W BPSK, 9 Mbps | 10 W headline rating +6
- Data rate
- 36 000 kbps OFDM MODULATION 16QAM · datasheet p.3 54 000 kbps OFDM MODULATION 64QAM | 9 000 kbps OFDM MODULATION BPSK | 12 000 kbps OFDM MODULATION QPSK | 36 000 kbps TX, 16QAM +7
- Modulation
- 3-4G telecom, WLAN, OFDM, DVB, CW/AM/FM datasheet p.1 64QAM 802.11g OFDM power table | other DVB | OFDM listed among supported signal types; 802.11g power table | 64QAM +7
- Supply voltage
- 28 V nom. · typ. · datasheet p.1 10 V min · Operating | 30 V max · Operating | 10–30 V | 10–30 V operating voltage
- Power consumption
- 0.28 W RX (28V, 100mA) · datasheet p.1 33.04 W TX (28V, 1.18A)
- Data interface
- GPIO 12 Pin Rectangular Locking Connector · datasheet p.2 other DC / Control Connector, 12 Pin Rectangular Locking | other DC / Control Connector, TTL signals
- Operating temperature
- -40 °C min · Housing Temp. · datasheet p.2 85 °C max · Housing Temp. | -40–85 °C | -40–85 °C housing temperature
- Function
- transceiver datasheet p.1 other bi-directional amplifier (class AB GaN, PA + LNA with Tx/Rx s…
- Link use
- other military and commercial applications · datasheet p.1
- RF connector
- SMPM Input / Output · datasheet p.2 SMP RF input, SMP-M | SMP RF output, SMP-M
- Connector
- DC/control: 12 pin rectangular locking (Triad cable CBL64) datasheet p.2 12 Pin Rectangular Locking DC / Control Connector | SMP-M / SMP-M RF Connectors (Input / Output)
- Random vibration
- MIL-STD-810 and equivalents datasheet p.2
- Duplex
- half manual or automatic Tx/Rx switching · datasheet p.1
- Channel bandwidth
- 20 000 kHz 802-11G · datasheet p.3 20 000 kHz 802.11g test signal bandwidth
- RF gain
- 15 dB nom. · RX gain, typ. · datasheet p.1 24 dB min · TX gain | 25 dB nom. · TX gain, typ.
- Noise figure
- 2.5 dB nom. · RX, typ. · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Frequency low
- 2200 MHz
- Frequency high
- 2500 MHz
- Tx gain
- 25 dB
- Supply voltage (Vdc)
- 10-30
- Rx noise figure
- 2.5 dB
- Rx gain
- 15 dB
- Output freq lo
- 2200 MHz
- Output freq hi
- 2500 MHz
- Psat (Typ)
- 40
- Dimensions
- 2.3 x 2.3 x 0.45 in
About
The TTRM2002 BDA module has been engineered to support any signal type, from simple CW/FM signals to complex, highly modulated carriers such as 64 and 256QAM. This module uses the latest GaN transistor technology to achieve highly linear power with low distortion, or peak power at high efficiencies to meet any radio system’s requirements. Triad employs the latest RF simulation and design methods to offer products with the lowest size, weight, and DC power consumption in the industry. Features: Under Voltage Protection, Temp. Monitor Output, Over-Temperature Protection, Manual or Automatic Tx/Rx Switching Available, Amplifier Status Output, Internal Bypass Relay. Applications: Simple CW to Highly Modulated Signals, Commercial / Military Radio Systems, Software Defined Radios, General Purpose RF Amplification.
