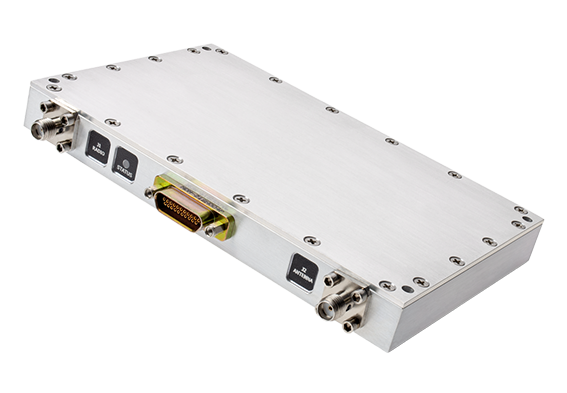

TTRM4310
Triad RF Systems
5000-6000 MHz, 50 W GaN bi-directional amplifier with forward power measurement and Tx/Rx status monitor.
Typed specifications58 values
Discloses 7 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- C datasheet p.1
- Mass
- 992.23 g with heatsink · datasheet p.2 368.54 g without heatsink
- Frequency range
- 5 000 MHz min · TX Operating · datasheet p.1 6 000 MHz max · TX Operating | 5 000–6 000 MHz Operating Frequency
- Envelope (L×W×H)
- 5.3 x 3.25 x 0.6 in datasheet p.2 5.3 x 3.25 x 0.6 L x W x H
- TX RF output power
- 39.81 W nom. · TX PSat, typ. · datasheet p.1 40 W headline rating | 16 W OFDM modulation, 16QAM, 36 Mbps | 10 W OFDM modulation, 64QAM, 54 Mbps | 40 W OFDM modulation, BPSK, 9 Mbps +6
- Data rate
- 36 000 kbps OFDM modulation 16QAM · datasheet p.3 54 000 kbps OFDM modulation 64QAM | 9 000 kbps OFDM modulation BPSK | 12 000 kbps OFDM modulation QPSK | 36 000 kbps TX, 16QAM +7
- Modulation
- 64QAM 802.11g OFDM power table · datasheet p.3 OFDM listed among supported signal types; 802.11g power table | 64QAM | 16QAM 802.11g OFDM power table | 16QAM +4
- Supply voltage
- 12 V nom. · typ. · datasheet p.1 10 V min | 30 V max | 10–30 V Operating Voltage
- Operating temperature
- -40 °C min · Housing Temp. · datasheet p.2 85 °C max · Housing Temp.
- Function
- transceiver datasheet p.1 other bi-directional amplifier (class AB GaN, PA + LNA with Tx/Rx s…
- Link use
- other military and commercial applications · datasheet p.1
- RF connector
- SMA RF input, SMA-F · datasheet p.2 SMA RF output, SMA-F
- Connector
- DC/control: 21 pin Micro-D (Triad cable CBL45) datasheet p.2 21 Pin Micro-D (DC / Control)
- Duplex
- half manual or automatic Tx/Rx switching · datasheet p.1
- Channel bandwidth
- 20 000 kHz 802.11g test signal bandwidth · datasheet p.3
- RF gain
- 12 dB nom. · RX gain, typ. · datasheet p.1 28 dB nom. · TX gain, typ.
- Noise figure
- 3 dB nom. · RX, typ. · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Frequency low
- 5000 MHz
- Frequency high
- 6000 MHz
- Tx gain
- 28 dB
- Supply voltage (Vdc)
- 10-30
- Rx noise figure
- 3 dB
- Rx gain
- 12 dB
- Output freq lo
- 5000 MHz
- Output freq hi
- 6000 MHz
- Psat (Typ)
- 47
- Dimensions
- 5.3 x 3.25 x 0.6 in
About
The TTRM4310 BDA module has been engineered to support any signal type, from simple CW/FM signals to complex, highly modulated carriers such as 64 and 256QAM. This module uses the latest GaN transistor technology to achieve highly linear power with low distortion, or peak power at high efficiencies to meet any radio system’s requirements. Triad employs the latest RF simulation and design methods to offer products with the lowest size, weight, and DC power consumption in the industry. Features: Forward Power Measurement, Over-Temperature Protection, Temp. Monitor Output, Optional Heatsink, Manual or Automatic Tx/Rx Switching Available, Tx / Rx Status Monitor. Applications: Simple CW to Highly Modulated Signals, Commercial / Military Radio Systems, Software Defined Radios, General Purpose RF Amplification.
