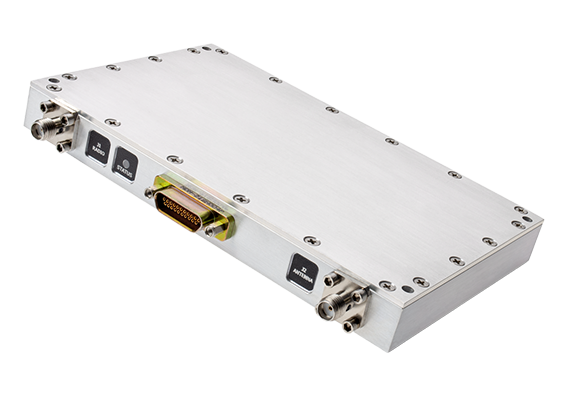

TTRM4510
Triad RF Systems
5300-5900 MHz, 50 W GaN bi-directional amplifier with forward power measurement and optional heatsink.
Typed specifications61 values
Discloses 7 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- C RX · datasheet p.1 C TX
- Mass
- 368.54 g datasheet p.2 992.23 g with heatsink | 368.54 g without heatsink
- Frequency range
- 5300-5900 datasheet p.1 5 300–5 900 MHz RX Operating Frequency (inferred) | 5 300–5 900 MHz TX Operating Frequency
- Envelope (L×W×H)
- 5.3 x 3.25 x 0.6 in datasheet p.2 5.3 x 3.25 x 0.6 L x W x H
- TX RF output power
- 50.12 W nom. · TX PSat, typ. · datasheet p.1 50 W | 50 W headline rating | 0.003 W P1dB Power Output | 50.12 W PSat Power Output +4
- Data rate
- 36 000 kbps 16QAM · datasheet p.3 54 000 kbps 64QAM | 9 000 kbps BPSK | 12 000 kbps QPSK | 36 000 kbps TX, 802.11g 20 MHz BW, OFDM 16QAM +3
- Modulation
- any signal type and modulation format, including but not limited to 3-4G telecom, WLAN, OFDM, DVB, and CW/AM/FM datasheet p.1 64QAM 802.11g OFDM power table | OFDM listed among supported signal types; 802.11g power table | 64QAM | 16QAM 802.11g OFDM power table +6
- Supply voltage
- 10–14 V datasheet p.1 10–14 V operating voltage
- Power consumption
- 100 W RX current · datasheet p.1 7 W TX max current
- Data interface
- other DC / Control · datasheet p.2 other RF Input / Output
- Operating temperature
- -40–85 °C datasheet p.2 -40–85 °C housing temperature
- Function
- transceiver datasheet p.1 other bi-directional amplifier (class AB GaN, PA + LNA with Tx/Rx s…
- Link use
- other military and commercial applications · datasheet p.1
- RF connector
- SMA Input / Output · datasheet p.2 SMA RF input, SMA-F | SMA RF output, SMA-F
- Connector
- DC/control: 21 pin Micro-D female (Triad cable CBL45) datasheet p.2 21 Pin Micro-D DC / Control | SMA-F / SMA-F RF Input / Output
- Duplex
- half manual or automatic Tx/Rx switching · datasheet p.1
- Channel bandwidth
- 20 000 kHz 802.11g test signal bandwidth · datasheet p.3
- Board format
- custom datasheet p.2
- RF gain
- 12 dB nom. · RX gain, typ. · datasheet p.1 28 dB nom. · TX gain, typ.
- Noise figure
- 3 dB nom. · RX, typ. · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Frequency low
- 5300 MHz
- Frequency high
- 5900 MHz
- Tx gain
- 28 dB
- Supply voltage (Vdc)
- 10-14
- Rx noise figure
- 3 dB
- Rx gain
- 12 dB
- Output freq lo
- 5300 MHz
- Output freq hi
- 5900 MHz
- Psat (Typ)
- 47
- Dimensions
- 5.3 x 3.25 x 0.6 in
About
The TTRM4510 BDA module has been engineered to support any signal type, from simple CW/FM signals to complex, highly modulated carriers such as 64 and 256QAM. This module uses the latest GaN transistor technology to achieve highly linear power with low distortion, or peak power at high efficiencies to meet any radio system’s requirements. Triad employs the latest RF simulation and design methods to offer products with the lowest size, weight, and DC power consumption in the industry. Features: Forward Power Measurement, Over-Temperature Protection, Temp. Monitor Output, Optional Heatsink, Manual or Automatic Tx/Rx Switching Available, Tx / Rx Status Monitor. Applications: Simple CW to Highly Modulated Signals, Commercial / Military Radio Systems, Software Defined Radios, General Purpose RF Amplification.
