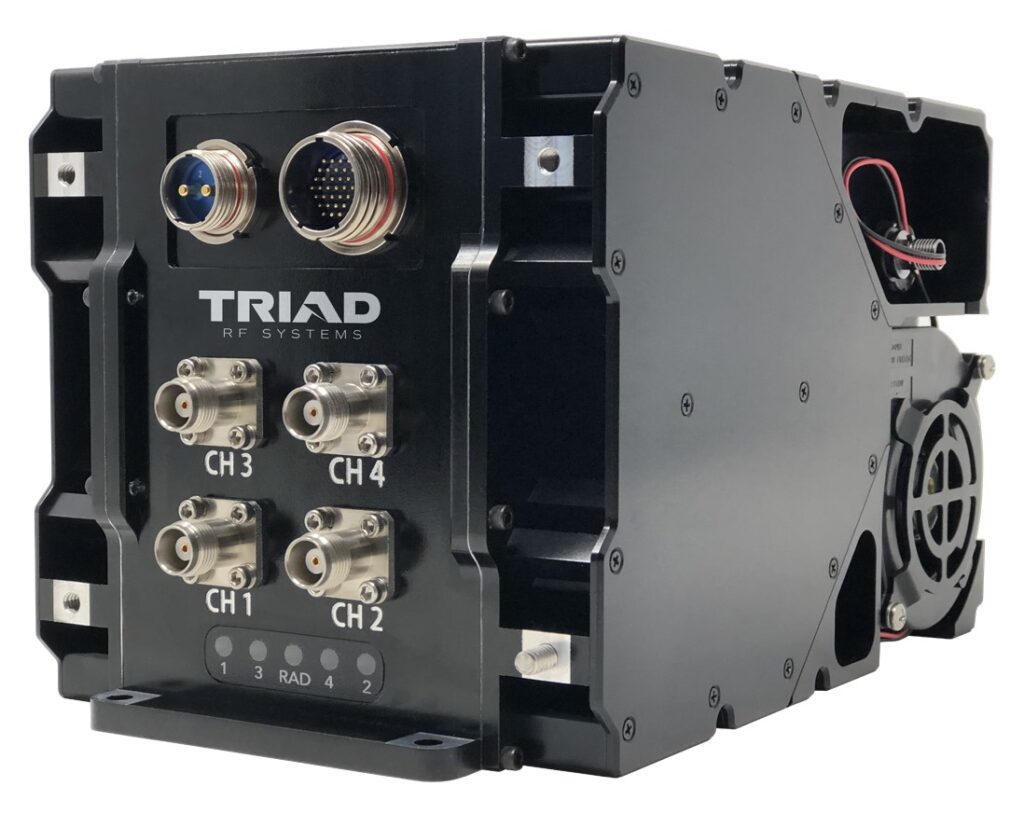

Triad THPR1060 Range Enhanced Silvus StreamCaster Radio System
Triad RF Systems
A high-power S-Band radio system integrating a Silvus StreamCaster SC4410-235-O radio with RF amplification and control circuitry for extended range and higher data rates.
Typed specifications8 values
Discloses 1 of 13 fields engineers filter by in this category (category median 3).
- Frequency range
- 2 200–2 500 MHz product page
- Envelope (L×W×H)
- 9.21 x 5.77 x 5.35 in (233.93 x 146.55 x 135.89 mm) product page
- Power consumption
- 50 W product page 10 W
- Operating temperature
- -40–55 °C product page
- Connector
- TNC-F product page 801-011-07M10-2PA | 801-011-07M13-37PA
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Operating frequency
- 2200 - 2500 MHz
- Amplified tx power
- 120 W (30 W per channel)
- Power output per mimo stream (5 Mbps)
- 50 W
- Power output per mimo stream (20+ Mbps)
- 10 W
- Supply voltage range
- +22 to +32 VDC
- Average operating current draw (Idle)
- 0.9 A
- Average operating current draw (5 Mbps)
- 4.5 - 18.2 A
- Average operating current draw (20+ Mbps)
- 4 - 13.2 A
- Ambient operating temperature
- -40 to 55 °C
- Altitude
- 0 - 50000 ft.
- Ingress protection rating
- IP67
- Dimensions (L x W x H)
- 9.21 x 5.77 x 5.35 in (233.93 x 146.55 x 135.89 mm)
- Antenna RF connectors
- TNC-F
- DC connector
- 801-011-07M10-2PA
- Signal connector
- 801-011-07M13-37PA
- Mass
- 138 oz (3912 g)
About
The THPR1060 Triad High Power Radio (THPR) is a 4-channel, S-Band amplified radio system designed to provide higher RF output power, greater throughput, and longer link distances compared to a standalone radio. It integrates a Silvus StreamCaster SC4410-235-O radio with high-power RF subsystems, control circuitry, and interfaces in a low SWaP (Size, Weight, and Power) package. The system operates on a +22 to +32 VDC input voltage and includes BDAs, RF filtering, and innovative SoC-based monitoring and controls, offering real-time power measurement and link diagnostics. It features an internal microcontroller for enhanced control and monitoring via USB, including independent RF power control per stream, transmit and reflected power measurements and alarms, temperature monitoring and protection, LED controls, power circuit monitoring and alarms, RF power calibration, and cooling fan controls and alarms. The THPR1060 is compatible with other Silvus radios and networks and is designed for easy installation into vehicles, aircraft, and unmanned systems. It also offers an RF Blanking option for EMCON / No Emissions State and a 5V/1A auxiliary supply for external accessories.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
