THPR1060 Triad High Power Radio
Triad RF Systems

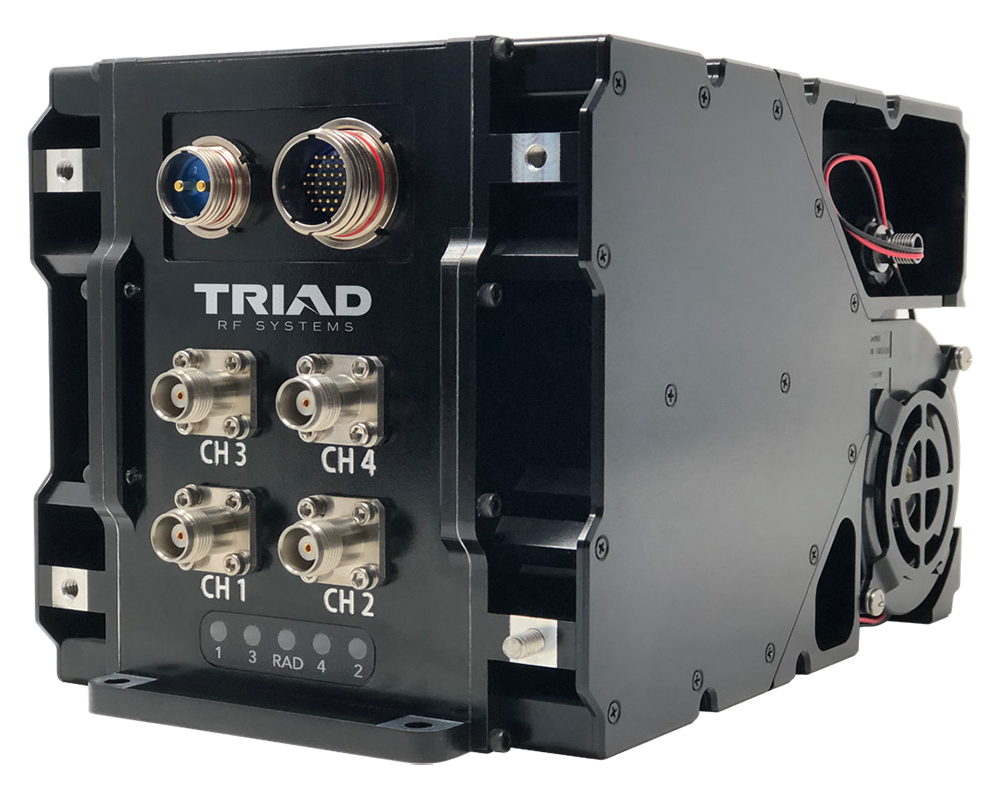

A 4-channel, S-Band amplified radio system built around a Silvus StreamCaster SC4410-235-O MIMO radio core paired with high-power RF amplification for extended range and throughput in a low-SWaP package.
Typed specifications40 values
Discloses 5 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- S TX/RX · datasheet p.1
- Mass
- 3 912 g datasheet p.4 3 912.23 g 138 (3912) oz (g) | 3 912 g 138 (3912) oz (g)
- Frequency range
- 2 200–2 500 MHz datasheet p.3
- Envelope (L×W×H)
- 233.93 x 146.55 x 135.89 mm datasheet p.4
- TX RF output power
- 120 W datasheet p.1 30 W per channel | 10 W Per MIMO Stream (20+ Mbps) | 50 W Per MIMO Stream (5 Mbps) | 120 W Total amplified Tx power (4x30W) +3
- Supply voltage
- 28 V nom. · typ · datasheet p.3 22–32 V | 22–32 V
- Power consumption
- 112 W Average Operating, 20+ Mbps, 28V supply · datasheet p.3 126 W Average Operating, 5 Mbps, 28V supply | 25.2 W Idle, +28V supply voltage (0.9A * 28V) | 25.2 W Idle, 28V supply | 126–510 W Average Operating, +28V supply voltage, RF power set to minim… +1
- Data interface
- USB datasheet p.2 USB Internal Microcontroller USB | RS-232 Radio RS232 | USB Radio USB0 | USB Radio USB1 +3
- Operating temperature
- -40–55 °C datasheet p.3 -40–55 °C ambient
- Function
- transceiver 4 channel S-Band amplified radio with integrated Silvus SC441… · datasheet p.1
- Link use
- other terrestrial ISR / UAS video/data links, military MANET · datasheet p.1
- RF connector
- TNC antenna RF connectors, TNC-F · datasheet p.4
- Connector
- DC: 801-011-07M10-2PA (mating 801-007-16M10-2SA); Signal: 801-011-07M13-37PA (mating 801-007-16M13-37SA) datasheet p.4 TNC-F Antenna RF Connectors | 801-011-07M10-2PA DC Connector | 801-011-07M13-37PA Signal Connector
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Model
- THPR1060
- Radio core
- Silvus
- Band
- S
- Mimo streams
- 4
- Frequency low
- 2200 MHz
- Frequency hi
- 2500 MHz
- Total thrp power
- 120 W
- Dimensions
- 9.21 x 5.77 x 5.35 in
- Supply voltage
- +22 to +32 VDC
About
The THPR1060 Triad High Power Radio (THPR) integrates a Silvus StreamCaster SC4410-235-O radio core with Triad RF’s high-power RF subsystems in a single low size, weight, and power (SWaP) package. The system combines the Silvus MIMO radio, RF amplification (bi-directional amplifiers/BDAs), RF filtering, and control circuitry with interfaces designed to achieve higher RF output power, greater throughput, and longer link distances than the stand-alone Silvus radio alone. It features innovative SoC-based monitoring and control circuitry providing real-time power measurement and link diagnostics. The unit operates on a wide input voltage range of +22 to +32 VDC. The THPR1060 is a 4-channel, S-Band configuration delivering up to 120 W total THRP power output over the 2200-2500 MHz frequency range, housed in a compact 9.21 x 5.77 x 5.35 inch enclosure. It is positioned for applications such as ISR data links, counter-UAS, electronic warfare, and NewSpace use cases requiring longer range, higher data rates, and minimized SWaP.
