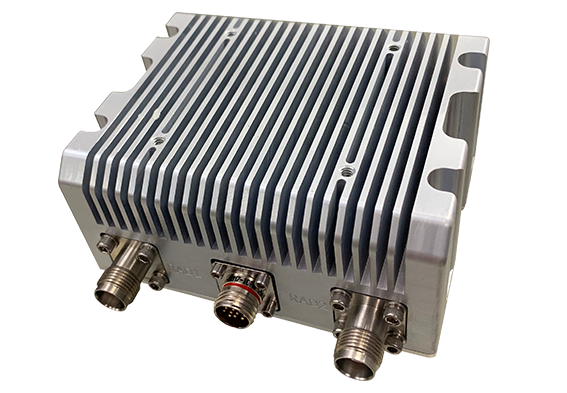

TTRM2005DR
Triad RF Systems
A 2200-2500 MHz, 25 W dual bi-directional solid-state power amplifier (SSPA) module supporting high-order modulation for S-band radio links.
Typed specifications44 values
Discloses 6 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- S 2200-2500 MHz · datasheet p.1 S RX | S TX
- Mass
- 566.99 g datasheet p.2
- Frequency range
- 2 200 MHz min · TX · datasheet p.1 2 500 MHz max · TX | 2 200–2 500 MHz RX
- Envelope (L×W×H)
- 3.25 x 3.75 x 1.9 in datasheet p.2
- TX RF output power
- 25 W 2200-2500 MHZ · datasheet p.1 25.12 W PSat | 25.12 W PSat Power Output | 25.12 W PSat, per channel, typ | 25 W rated +1
- Data rate
- 36 000 kbps 16QAM OFDM modulation · datasheet p.3 54 000 kbps 64QAM OFDM modulation | 9 000 kbps BPSK OFDM modulation | 36 000 kbps OFDM, 16QAM modulation, 20 MHz BW | 54 000 kbps OFDM, 64QAM modulation, 20 MHz BW +3
- Modulation
- 3-4G telecom, WLAN, OFDM, DVB, CW/AM/FM datasheet p.1 64QAM | other 3-4G telecom, WLAN, OFDM, DVB, CW/AM/FM | 16QAM | QPSK +1
- Supply voltage
- 28 V nom. · datasheet p.1 12 V min | 30 V max
- Operating temperature
- -20 °C min · datasheet p.2 85 °C max
- Function
- transceiver datasheet p.1 other dual bi-directional SSPA (amplifier with Tx PA and Rx LNA)
- RF connector
- TNC input, TNC-F · datasheet p.2 TNC Input/Output | TNC output, TNC-F
- Connector
- TNC-F / TNC-F (RF) datasheet p.2 Circular Locking (DC / Control)
- Duplex
- half Manual or Automatic Tx/Rx Switching · datasheet p.1
- RF gain
- 11 dB RX, per channel · datasheet p.1 25 dB TX, per channel
- Noise figure
- 2.5 dB RX, per channel · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Model
- TTRM2005DR
- Frequency low
- 2200 MHz
- Frequency high
- 2500 MHz
- Tx gain
- 25 dB
- Supply voltage (Vdc)
- 12-30
- Rx noise figure
- 2.5 dB
- Rx gain
- 15 dB
- Output freqlo
- 2200 MHz
- Output freqhi
- 2500 MHz
- Psat (Typ)
- 44
- Dimensions
- 3.25 x 3.75 x 1.9 in
About
The TTRM2005DR is a Dual Bi-Directional Amplifier (BDA) module engineered to support any signal type, ranging from simple CW/FM signals to complex, highly modulated carriers such as 64QAM and 256QAM. It uses the latest LDMOS transistor technology to achieve highly linear power output with low distortion, or peak power at high efficiency, to meet radio system requirements. Triad RF Systems applies advanced RF simulation and design methods to deliver a product with low size, weight, and DC power consumption. The module operates across 2200-2500 MHz with 25 dB of transmit gain, a typical saturated output power (Psat) of 44, a receive path with 15 dB gain and 2.5 dB noise figure, and operates from a 12-30 Vdc supply. It is housed in a compact 3.25 x 3.75 x 1.9 inch package. The amplifier is part of Triad’s broader bi-directional amplifier product family, which also includes the related TTRM2002 S-Band BDA (2200-2500 MHz, up to 10 W output).
