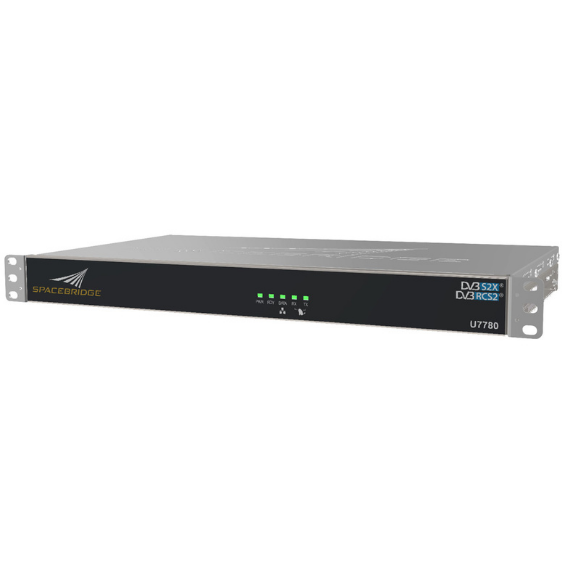

U7780 – ESTELLA System Professional MF-TDMA Satellite Modem
SpaceBridge Inc.
Advanced rackmount enterprise and cellular backhaul satellite modem offering high-performance CBH traffic optimization for service providers and MNOs.
Typed specifications54 values
Discloses 9 of 11 fields engineers filter by in this category (category median 6).
- Mass
- 3 400 g datasheet p.2 3 400 g 7.5 lbs
- Link protocols and waveforms
- DVB-S2 forward link · datasheet p.2 other OpenAMIP (optional license) | DVB-RCS2 TDMA return channels | proprietary WaveSwitch return link | DVB-S2X forward link
- Frequency range
- 950–2 150 MHz Terminal IF RX · datasheet p.2 950–2 400 MHz Terminal IFL TX
- Envelope (L×W×H)
- 435 x 45 x 272 mm datasheet p.2 435 x 45 x 272 WxHxD, 1U rack mount
- TX RF output power
- 0 W min · datasheet p.2 0.001 W max | 0.001 W max · Tx power (IF)
- Data rate
- 120 000 kbps Download speed · datasheet p.2 25 000 kbps Upload Speed | 25 000 kbps Upload Speed (WaveSwitch) | 40 000 kbps max · download and upload (garbled sentence on p.1) | 120 000 kbps max · RX download speed +1
- Modulation
- other 32QAM, TX return link · datasheet p.2 256APSK RX forward link (QPSK to 256APSK) | QPSK RX forward link DVB-S2/S2X (QPSK to 256APSK); TX return | other SS-BPSK, TX return link | 8PSK TX return link +2
- Supply voltage
- 24 V nom. · 24VDC input · datasheet p.2 24 V input | 48 V Option: DIN Rail mounted | 100–240 V Option: DIN Rail mounted
- Power consumption
- 120 W Option: DIN Rail mounted 100-240VAC to 24VDC · datasheet p.2 120 W Option: DIN Rail mounted 48VDC to 24VDC | 30 W supported to U7780 modem and LNB (24VDC input) | 100 W to the BUC | 30 W to U7780 modem and LNB +2
- Data interface
- other 1000BaseT Ethernet; MGMT ports · datasheet p.2 Ethernet 4x1000BaseT user + 1x1000BaseT MGMT
- Operating temperature
- 0–60 °C datasheet p.2 0–60 °C printed -4В°F to 140В°F (0В°C to 60В°C)
- Export status
- controlled AES-256 IPVPN option · datasheet p.2
- Function
- modem VSAT satellite modem/router · datasheet p.1
- Link use
- ground modem Estella VSAT platform · datasheet p.1
- Frequency band
- L L-band IF, satellite/band independent · datasheet p.2
- RF connector
- F IF RX, 75 Ohm · datasheet p.2 F IFL TX, 75 Ohm | F Terminal IF RX | F Terminal IFL TX
- Encryption
- other cellular traffic encryption/decryption, algorithm not stated · datasheet p.1 AES-256 export restricted, Optional License | AES-256 optional license, AES256 IPVPN (export restricted)
- Data interface speed
- 1 000 Mbps Ethernet 1000BaseT · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Form factor
- Rack-mount
- Ethernet ports
- 2 GbE ports
- Forward link
- DVB-S2X
- Return link
- MF-TDMA
- Maximum download
- Up to 100 Mbps
- Maximum upload
- 12.5 Mbps
- Packet processing
- 50K PPS
- Layer support
- Layer-2 and layer-3
- Optional features
- L2/L3 header-compression, payload-compression, GTP/GRE acceleration, Encryption
About
The U7780 is an advanced enterprise and cellular backhaul (CBH) satellite modem providing high-performance traffic optimization and unparalleled value for service providers and mobile network operators (MNOs). It uses a rack-mount form factor for easy integration into telco cabinets and leverages a state-of-the-art software-defined architecture together with an embedded single-board computer. Operating with a DVB-S2X forward link and MF-TDMA return link, it delivers up to 100Mbps download and 12.5Mbps upload, with packet processing up to 50K PPS across layer-2 and layer-3 traffic. Optional features include L2/L3 header-compression, payload-compression, GTP/GRE acceleration, and encryption. It is competitively priced for value-driven 2.5G/3G/4G rural cellular backhaul markets and telecoms in developing countries, offering broadband capability for applications ranging from office productivity Internet access to rural community connectivity. Typical use cases include rural/USO cellular backhaul, small/medium enterprise connectivity, broadband and rural Internet access, retail/point-of-sale systems, banking/ATM networks, and secure or terrestrial backup communications.
