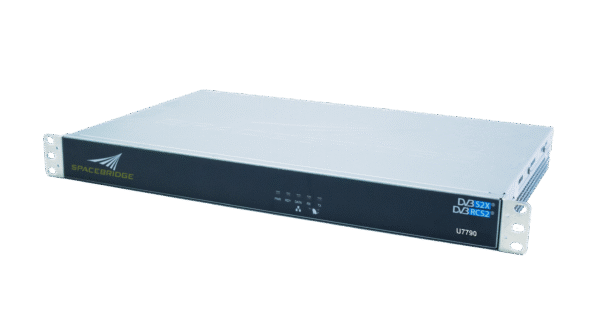

U7790 – High-Performance Satellite MESH Modem
SpaceBridge Inc.
Professional satellite MESH modem supporting DVB-S2X/DVB-RCS2 with direct remote-to-remote connectivity, bypassing the ESTELLA Core HUB for MESH and Star-in-Star networks.
Typed specifications85 values
Discloses 9 of 11 fields engineers filter by in this category (category median 6).
- Mass
- 3 400 g max · datasheet p.2 3 400 g max · <7.5 lbs
- Link protocols and waveforms
- DVB-RCS2 EN 301 545-2-V1.2.1, return link · datasheet p.1 DVB-S2/S2X ACM forward link | MF-TDMA and WaveSwitch return link | proprietary WaveSwitch dynamic SCPC, 3D TDMA, MESH carriers | DVB-S2X forward link +2
- Frequency range
- 950 MHz min · RX · datasheet p.2 950 MHz min · TX | 2 150 MHz max · RX | 2 400 MHz max · TX | 950–2 150 MHz RX L-band +3
- Envelope (L×W×H)
- 482.6 x 153.4 x 44.4 mm U7790-60 · datasheet p.2 482.6 x 153.4 x 44.4 U7790-60 WxLxH; printed as 19 x 12 x 1.75 inches (inch and mm…
- TX RF output power
- 0.001 W max · Tx power (IF) · datasheet p.2 0–0.001 W
- Data rate
- 100 000 kbps download · datasheet p.2 25 000 kbps upload | 100 000 kbps max · RX download speed | 25 000 kbps max · TX upload / MESH uplink speed
- Modulation
- other 32QAM, TX return link · datasheet p.2 QPSK to 256APSK forward link | QPSK forward link/RX | SS-BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM return link | 256APSK RX forward link (QPSK to 256APSK) +21
- Supply voltage
- 90 V min · AC PS · datasheet p.2 260 V max · AC PS | 90–260 V | 90–260 V AC power supply (U7790-60 / U7790-120)
- Power consumption
- 120 W U7790-120 AC PS · datasheet p.2 100 W U7790-120 to power RF/BUC | 120 W U7790-120, AC PS | 100 W U7790-120, to power RF/BUC | 60 W U7790-60 AC PS +3
- Data interface
- Ethernet 1000BaseT user + MGMT (4x user on U7790-120) · datasheet p.2 Ethernet U7790-120, management | Ethernet U7790-120, user | Ethernet U7790-60/SA/ODU, management | Ethernet U7790-60/SA/ODU, user
- Operating temperature
- 0–50 °C datasheet p.2 0–50 °C indoor rack mount
- Export status
- controlled AES-256 IPSec encryption option · datasheet p.2
- Function
- modem satellite MESH modem/router · datasheet p.1
- Link use
- ground modem ESTELLA VSAT, MESH remote · datasheet p.1
- Frequency band
- L L-band IF, satellite/band independent · datasheet p.2 L RX | L TX
- RF connector
- F IF RX, 75 Ohm · datasheet p.2 F IFL TX, 75 Ohm | other RX, F-type 75 Ohm
- Survival temperature
- -40–85 °C datasheet p.2 -40–85 °C storage
- Encryption
- AES-256 optional, IPSec up to AES256 (export controlled) · datasheet p.2 IPsec optional, up to AES256 (export controlled) | AES-256
- Data interface speed
- 1 000 Mbps Ethernet 1000BaseT · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier17 lines, in the manufacturer's own wording
- Forward link
- DVB-S2X
- Return link
- DVB-RCS2 (EN 301 545-2-V1.2.1)
- IP throughput
- 100 Mbps from HUB or pool of 16 MESH carriers
- Uplink/mesh capability
- Up to 25 Mbps per carrier
- Modulation support (Star)
- SS-BPSK to 64QAM
- Modulation support (MESH)
- SS-BPSK to 16QAM
- Forward link symbol rate
- From 256Ksps to 125Msps
- Return link symbol rate
- From 160KHz to 20 MHz
- Channel roll-off/spacing (Forward link)
- 5%, 10%, 15%, 20%, 25%
- Channel roll-off/spacing (Return link)
- 5%, 10%, 15%, 20%, 25%, 35%
- Dimensions
- 19 x 12 x 1.75 inches (482.6 x 153.4 x 44.4 mm)
- Weight
- <7.5 lbs (3.4 kg)
- Power
- 60 W AC PS (90-260VAC)
- Operating temperature
- 32°F-122°F (0°C-50°C)
- Storage Conditions
- -40° to +85°C (-40° to +185°F)
- Altitude
- < 2000 meters
- Interface
- 1 User 1000BaseT/ 1 MGMT 1000BaseT Ethernet
About
The U7790 is a powerful professional satellite modem supporting the open standards DVB-S2X and DVB-RCS2 (EN 301 545-2-V1.2.1), enhanced with SpaceBridge’s proprietary return link optimized waveforms. It delivers direct remote-to-remote connectivity without requiring traffic to traverse the ESTELLA Core HUB, processing IP throughput of 100Mbps from either the HUB or a pool of 16 MESH carriers, with uplink/MESH capability of up to 25 Mbps per carrier. The modem integrates seamlessly within SpaceBridge’s multi-service ESTELLA Core environment for both Overlay MESH and Full MESH network topologies, and features simultaneous multi-carrier reception enabling regional hub functionality for Star-in-Star applications. Key features include a DVB-S2X forward link with highly granular MODCODs, low roll-off rates and Adaptive Coding and Modulation (ACM); dynamic return carrier creation via Dynamic Waveform Assignment (DWA); extended DVB-RCS2 return channels supporting SS-BPSK up to 64QAM in Star mode and SS-BPSK up to 16QAM in MESH mode; WaveSwitch return link waveforms for highest Dynamic SCPC efficiency; MESH remote-to-remote ACM for high resilience; and compatibility with most COTS BUCs. Applications include rural/USO cellular backhaul, small/medium enterprise and corporate connectivity, broadband access, rural Internet and online learning, retail/point-of-sale and digital signage, banking/ATM, and secure or terrestrial/wireless backup communications.
