NSR-SDR-S/S
Vulcan Wireless

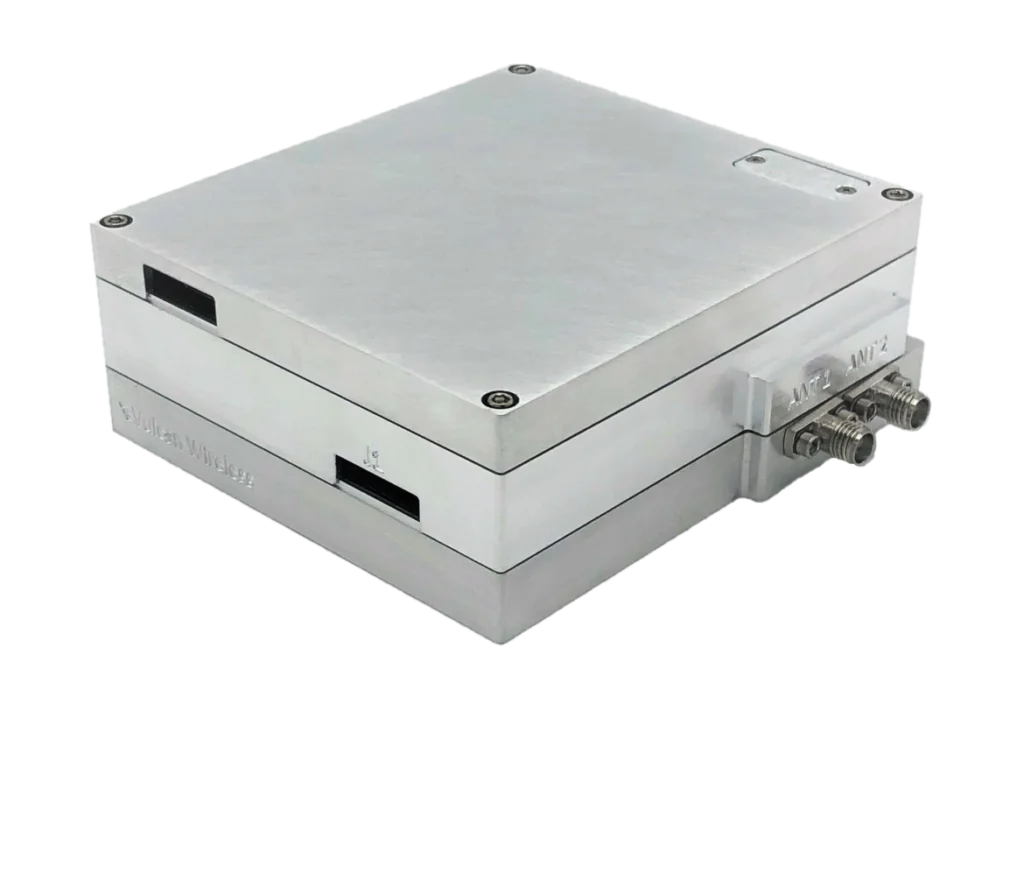

Full-duplex S-band software-defined radio transponder in a 1/3U CubeSat form factor.
Typed specifications69 values
Discloses 6 of 13 fields engineers filter by in this category (category median 5).
- Mass
- 340 g datasheet p.1
- Link protocols and waveforms
- CCSDS Proximity-1 datasheet p.1 CCSDS CCSDS TM/TC (NEN) | CCSDS Data Framing | CCSDS NEN DTE | other TDRS-MA +5
- Frequency range
- 2 025 MHz min · RX · datasheet p.1 2 200 MHz min · TX | 2 118 MHz max · RX | 2 300 MHz max · TX | 2 025–2 118 MHz RX +1
- Envelope (L×W×H)
- 82x92x34mm datasheet p.1
- TX RF output power
- 1 W 1W RF / 8W DC · datasheet p.1 4 W 2200-2300MHz | 4 W 4W RF / 18.5W DC | 1 W | 1 W 2200-2300MHz
- Data rate
- 2 kbps min · TX OQPSK/BPSK (printed 2K-4Mbps) · datasheet p.1 4 000 000 kbps max · Tx | 4 000 kbps max · TX OQPSK/BPSK (printed 2K-4Mbps) | 2K-4M OQPSK/BPSK
- RX sensitivity
- -130 dBm datasheet p.1
- Modulation
- other AM, Direct Carrier and PCM/PM, ITU Mask · datasheet p.1 other direct carrier modulation and PCM/PM/PSK | other PCM/PM/PSK, FSK/AM, direct carrier | OQPSK Tx | BPSK Tx +3
- Supply voltage
- 24 V min · 28Volt option · datasheet p.1 8 V min · Standard input | 33.6 V max · 28Volt option | 16 V max · Standard input | 24–33.6 V 28Volt option +1
- Power consumption
- 4 W Rx · datasheet p.1 8 W Tx (1W RF) | 18.5 W Tx (4W RF)
- Data interface
- RS-422 datasheet p.1 UART 4Mbps | Ethernet TCP/IP | UART | UART
- Operating temperature
- -25 °C min · datasheet p.1 65 °C max | -25–65 °C full specs
- Radiation tolerance (TID)
- 55 krad min · datasheet p.1
- Design lifetime
- 5 years datasheet p.1 5 years 5-year mission
- Export status
- ITAR-free version without encryption · datasheet p.1
- Function
- SDR transceiver datasheet p.1
- Link use
- TT&C datasheet p.1
- Frequency band
- S RX · datasheet p.1 S TX
- Power draw, receive
- 4 W Rx · datasheet p.1
- Power draw, transmit
- 8 W at 1W RF · datasheet p.1 18.5 W at 4W RF
- Duplex
- full datasheet p.1
- Encryption
- none datasheet p.1 NSA Type 1 Hardware Based | AES-256-GCM Software based
- Data interface speed
- 4 Mbps UART · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Form factor
- 1/3U CubeSat
- Frequency band
- S-band
- RF power output
- up to 4 W
- Duplex
- Full-duplex
- Mission life
- 5 years
- Encryption
- Software-based; optional integrated TSAB (Type-1)
- Supported waveforms/services
- NASA NEN, TDRS-MA, USB, coherent turnaround/ranging, PROXIMITY-1, crosslink
About
The NSR-SDR-S/S is a fully integrated, full-duplex software-defined radio transponder built for small satellite applications with a flight-proven design. It packages S-band transmit and receive into a compact 1/3U CubeSat form factor with a built-in antenna switch for nadir and space-facing antennas.
The radio is fully programmable in frequency, waveform, and SSPA power level, and supports NASA NEN, TDRS-MA, USB waveforms, coherent turnaround/ranging, PROXIMITY-1, and crosslink operation. It is rated for a 5-year mission life and is suited to LEO, GTO, and cislunar/lunar missions.
Security is handled via embedded software-based encryption, with an optional integrated TSAB (Type-1) encryption module for higher-assurance missions. The transponder is compatible with a broad range of ground segments including AWS Ground Station, SSC, KSAT, Atlas Space, MC3, CCSDS-standard systems, NASA NEN, TDRS-MA, and DSN.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
