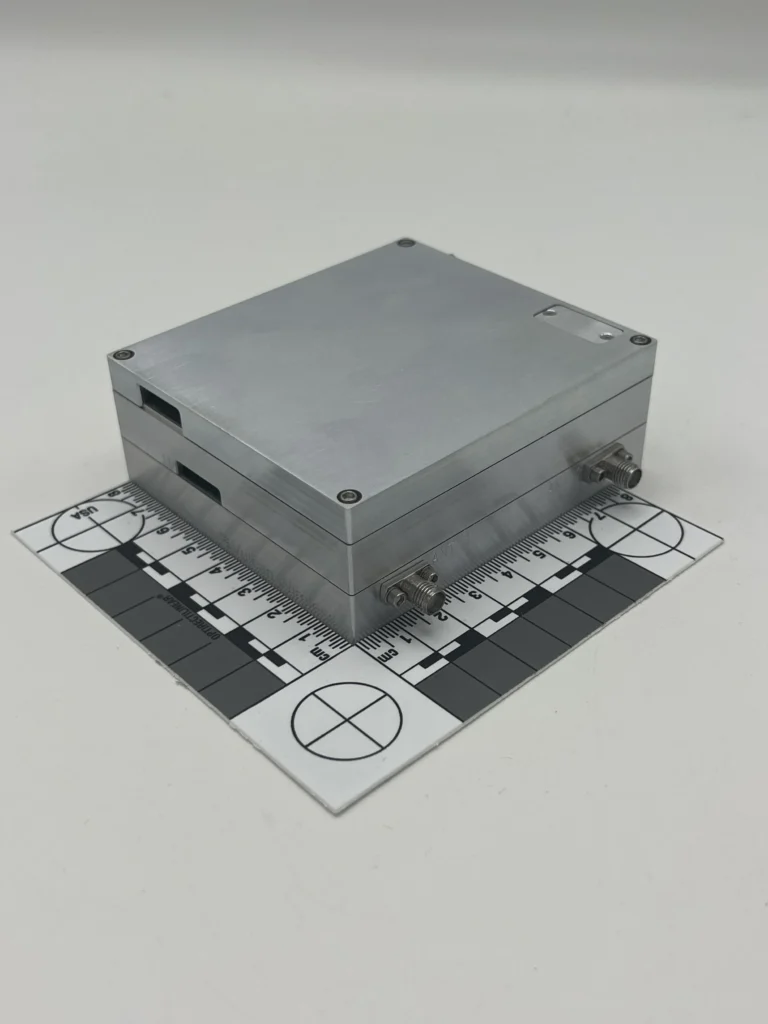

NSR-SDR-X/S
Vulcan Wireless
Full-duplex X/S-band SDR transponder for high-rate downlink/uplink on LEO, GTO, and cislunar missions.
Typed specifications68 values
Discloses 6 of 13 fields engineers filter by in this category (category median 5).
- Mass
- 350 g datasheet p.0
- Link protocols and waveforms
- CCSDS CCSDS TC/TM (NEN) · datasheet p.1 other compatible ground networks: NASA NEN, SSC (USN), KSAT | CCSDS TC/TM TX | CCSDS TM/TC (NEN) | DVB-S2 TX +3
- Frequency range
- X-band description 2025-2118MHz RX | 7900-8400MHz TX | 2 025 MHz min · Rx | 7 900 MHz min · Tx +4
- Envelope (L×W×H)
- 82x92x31mm datasheet p.0
- TX RF output power
- 5 W datasheet p.0 5 W RF | 5 W SSPA
- Data rate
- 40 000 kbps TX · datasheet p.0 6 000 kbps UART | low Mbps to >500 Mbps max · Downlink | 40 000 kbps max · TX OQPSK | low Mbps to >500 Mbps max · Uplink
- RX sensitivity
- -127 dBm datasheet p.0
- Modulation
- BPSK RX · datasheet p.0 OQPSK TX | QPSK RX
- Supply voltage
- 12 V nom. · Input · datasheet p.0 12 V Input | 28 V Option | 28 V nom. · Option | 12 V nom. · standard input
- Data interface
- Ethernet datasheet p.0 RS-422 | UART
- Operating temperature
- -25 °C min · datasheet p.0 61 °C max | -25–61 °C full specs
- Radiation tolerance (TID)
- 30 krad datasheet p.1
- Design lifetime
- 5 years datasheet p.0 5 years 5 year mission
- Export status
- ITAR-free version without encryption · datasheet p.1
- Function
- SDR transceiver datasheet p.0
- Link use
- TT&C datasheet p.0 payload data downlink
- Frequency band
- S RX · datasheet p.0 X TX
- Power draw, receive
- 4 W RX · datasheet p.0
- Power draw, transmit
- 20 W 5W RF · datasheet p.1 20 W TX
- Channel coding (FEC)
- LDPC datasheet p.1 convolutional (Viterbi) CC1/2 | LDPC TX | convolutional (Viterbi) TX (CC1/2) | turbo +1
- Duplex
- full datasheet p.0
- Encryption
- none datasheet p.0 NSA Type 1 Hardware Based | NSA Type 1 hardware based, NSA TSAB option | AES-256-GCM Software based | AES-256-GCM +1
- Data interface speed
- 6 Mbps UART · datasheet p.0
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Frequency band
- X-band
- Downlink data rate
- low Mbps to >500 Mbps
- Uplink data rate
- low Mbps to >500 Mbps
- Modulation/coding
- DVB-S2, variable modulation and coding
- RF power output
- 5 W SSPA (variable)
- Duplex
- Full-duplex
- Encryption
- Software-based; optional integrated TSAB (Type-1)
About
The NSR-SDR-X/S is a fully integrated, full-duplex software-defined radio transponder operating on X-band, designed for LEO, GTO, and cislunar/lunar missions requiring high-rate data return.
Downlink and uplink speeds range from low Mbps up to greater than 500 Mbps using DVB-S2 with variable modulation and coding. It provides 5 W of variable SSPA RF output power and supports on-orbit reprogramming and coherent turnaround.
Security is provided through embedded software-based encryption, with an optional integrated TSAB (Type-1) encryption module. The radio interoperates with ground networks including AWS Ground Station, SSC, KSAT, Atlas Space, MC3, CCSDS, NASA NEN, and SCN.
