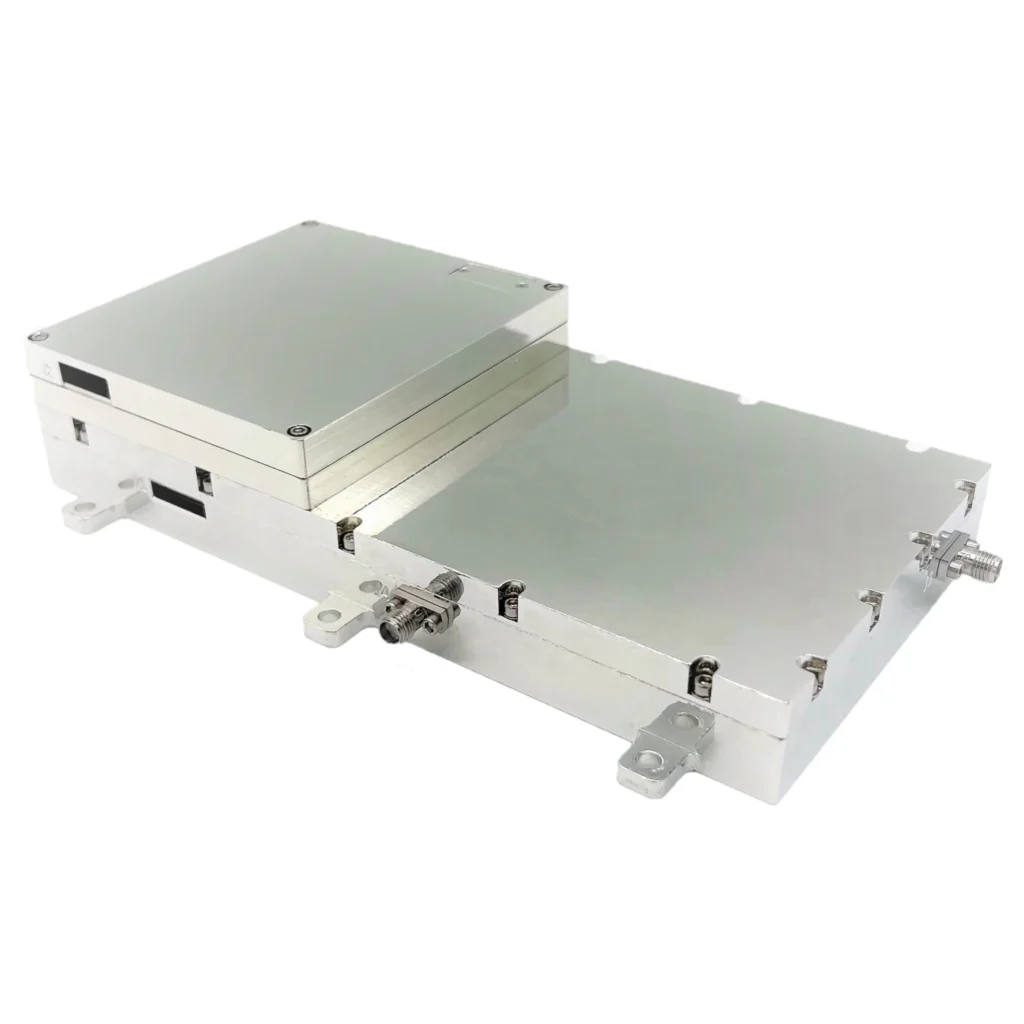

NSR-SDR-X/S HP
Vulcan Wireless
High-power variant of the X/S-band transponder with >10 W linear RF output for CubeSat missions.
Typed specifications60 values
Discloses 5 of 13 fields engineers filter by in this category (category median 5).
- Mass
- 700 g datasheet p.1
- Link protocols and waveforms
- CCSDS CCSDS TM/TC (NEN) · datasheet p.1 other compatible ground networks: NASA NEN, SSC (USN), KSAT | CCSDS TM/TC (NEN)
- Frequency range
- 2 025 MHz min · RX · datasheet p.1 7 900 MHz min · TX | 2 118 MHz max · RX | 8 400 MHz max · TX | 2 025–2 118 MHz RX +1
- Envelope (L×W×H)
- 92x183x36mm datasheet p.1
- TX RF output power
- 10 W datasheet p.1 10 W linear RF | 10 W min
- Data rate
- 2 kbps min · RX BPSK · datasheet p.1 20 kbps min · TX OQPSK | 2 000 kbps max · RX BPSK | 20 000 kbps max · TX OQPSK | 2Kbps-2Mbps Rx BPSK +1
- RX sensitivity
- -127 dBm datasheet p.1 -127 dBm Full Duplex
- Modulation
- BPSK RX · datasheet p.1 OQPSK TX
- Supply voltage
- 28 V nom. · datasheet p.1 28 V Input | 12 V nom. · Option | 28 V nom. · standard input
- Power consumption
- 10 W min · product page
- Data interface
- Ethernet datasheet p.1 other Ethernet | RS-422 | UART
- Operating temperature
- -25 °C min · datasheet p.1 65 °C max | -25–65 °C full specs
- Radiation tolerance (TID)
- 30 krad datasheet p.1
- Design lifetime
- 5 years datasheet p.1 5 years 5 year mission
- Export status
- ITAR AES-256 software or NSA Type-1 encryption versions · datasheet p.1 ITAR-free version without encryption
- Function
- SDR transceiver datasheet p.1
- Link use
- TT&C datasheet p.1
- Frequency band
- S RX · datasheet p.1 X TX
- Power draw, receive
- 1 W Rx · datasheet p.1
- Satellite class
- GEO LEO, MEO, GEO, cislunar and lunar surface application · datasheet p.1
- Channel coding (FEC)
- LDPC datasheet p.1 convolutional (Viterbi) CC1/2 | turbo
- Duplex
- full datasheet p.1
- Encryption
- none datasheet p.1 none Non-ITAR | NSA Type 1 NSA TSAB (Type-1) Embedment, ITAR | NSA Type 1 NSA TSAB embedment (ITAR) | AES-256 software based (ITAR) +3
- Data interface speed
- 6 Mbps UART · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Frequency bands
- X/S-band
- RF power output
- >10 W (linear)
- Form factor
- CubeSat-compatible
- Mission life
- 5 years
- Data protocol
- DVB-S2
- Applications
- Cislunar navigation, lunar surface communications
About
The NSR-SDR-X/S HP is an integrated, full-duplex X/S-band software-defined radio transponder in a CubeSat-compatible form factor, built as a higher-power version of the standard NSR-SDR-X/S for missions needing greater link margin.
It delivers more than 10 W of linear RF power output and supports DVB-S2 high-speed data along with programmable frequency, waveform, and power level settings. Mission life is projected at 5 years.
The transponder supports NASA NEN and USB waveforms with coherent turnaround and ranging, and is aimed at cislunar navigation and lunar surface communications applications. Optional integrated TSAB (Type-1) encryption is available.
