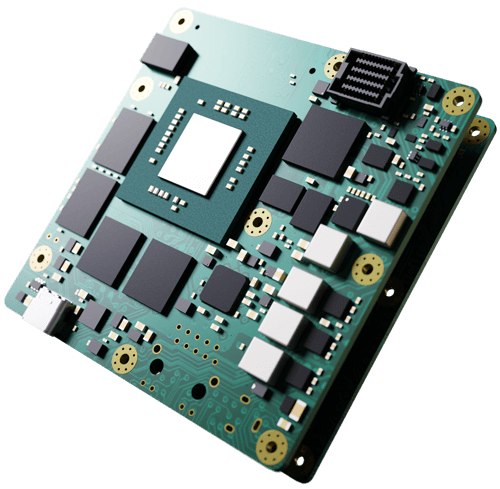

Q8 SDR Dock Daughterboard
Xiphos Technologies
The Xiphos Q8 SDR Dock is a daughterboard for the Q8 processor board that integrates an Analog Devices AD9361 RF agile transceiver module, enabling the Q8 to interface with high-bandwidth radio or RF streams. It allows customers to execute high-performance software-defined radio algorithms on either the Q8’s ARM processors or its programmable FPGA fabric. The […]
Typed specifications44 values
Discloses 3 of 13 fields engineers filter by in this category (category median 5).
- Mass
- 116 g datasheet p.3
- Envelope (L×W×H)
- 80 x 80 x 34.7 mm (with SDR module) datasheet p.3 80 x 80 x 34.7 mm with SDR module
- Supply voltage
- 5 V nom. · datasheet p.3 12 V +12V | 5 V +5V | 12 V nom. · +12V input | 5 V nom. · +5V input +1
- Power consumption
- 7.5 W typical (SDR active) · datasheet p.3 4 W idle | 7.5 W SDR active
- Data interface
- RS422 datasheet p.3 UART (3.3V) | USB 2.0 | LVDS 2x LVDS Out + 2x LVDS In (1.8V) | UART 3.3V +11
- Function
- other daughterboard for Q8 hosting SDR module (GOMSPACE NanoCom TR-… · datasheet p.3
- TX chains
- 2 datasheet p.4 2 2x Tx Out via SDR module
- RF connector
- other coax (4) · datasheet p.4 other SDR Module
- RX chains
- 2 datasheet p.4 2 2x Rx In via SDR module
- Connector
- J1 30 pins (LVDS, CAN, PPS, UART, RS422); J2 6 pins (12V, 5V In); J3, J4 100 pins to SDR module; J5 4 pins USB 2.0; SDR module 4 coax (2x RF Transmit, 2x RF Receive) datasheet p.4 J3 – (100 pins) | J4 – (100 pins) | J5 – (4 pins) | SDR Module – (4 coax)
- TX/RX chains (as printed)
- 2x Tx Out, 2x Rx In datasheet p.3
- FPGA / SoC
- Xilinx Zynq UltraScale+ XCZU7EG MPSoC (on Q8 processor) datasheet p.2
- Processor
- Quad-core ARM Cortex-A53 @ 1.2 GHz (on Q8 processor) datasheet p.2
- RF transceiver chip
- Analog Devices AD9361 RF agile transceiver (in SDR module) datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- RF transceiver
- Analog Devices AD9361
- RF outputs
- 2x
- RF inputs
- 2x
- Other interfaces
- CAN Bus, USB 2.0, PPS input, LVDS GPIO (SpaceWire capable)
- Dimensions
- 80 x 80 x 34.7 mm (with Q8 installed)
- Supply voltage
- 5 V and 12 V
- Power (Typical)
- 7.3 W (two RF transmitters active)
About
The Xiphos Q8 SDR Dock is a daughterboard for the Q8 processor board that integrates an Analog Devices AD9361 RF agile transceiver module, enabling the Q8 to interface with high-bandwidth radio or RF streams. It allows customers to execute high-performance software-defined radio algorithms on either the Q8’s ARM processors or its programmable FPGA fabric.
The SDR Dock provides two RF transmit and two RF receive ports, a CAN bus interface, USB 2.0, PPS timing input, and LVDS GPIO with SpaceWire protocol capability. The AD9361 transceiver covers a wide frequency range with programmable bandwidth, making the board suitable for satellite telemetry/command, inter-satellite links, Internet of Things connectivity, and RF sensing payloads.
The compact form factor and low power consumption make it practical for integration into SmallSats with constrained SWaP budgets.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
