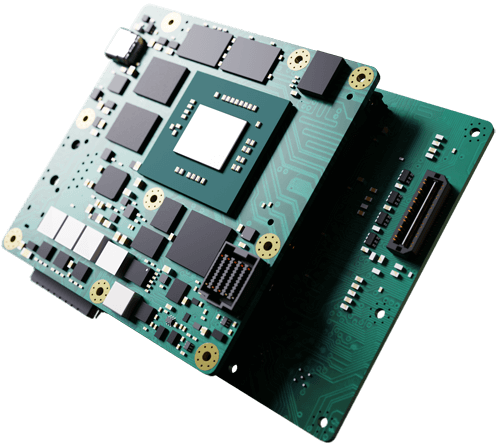

Q8J SDR Daughterboard
Xiphos Technologies
The Xiphos Q8J SDR is an extremely high-performance software-defined radio platform built on the Xilinx Zynq UltraScale+ MPSoC (via the Q8J host board) and the Analog Devices AD9361 RF agile transceiver. The combination of the Q8J’s JESD204B-capable GTH transceivers with the AD9361 enables a tightly coupled SDR architecture with onboard PL-accessible DDR3 memory providing deterministic, […]
Typed specifications26 values
Discloses 3 of 13 fields engineers filter by in this category (category median 5).
- Mass
- 56 g without connectors · datasheet p.2
- Envelope (L×W×H)
- 80 mm x 80 mm x 11.2 mm datasheet p.1
- Data rate
- 6 000 kbps 1 PS GTR transceiver for SATA, PCIe · datasheet p.2 12 500 kbps 16 PL GTH transceivers for JESD204B, PCIe
- Supply voltage
- 6 V min · datasheet p.2 15 V max | 6–8.4 V
- Power consumption
- 6 W typical · datasheet p.2 5 W as little as
- Data interface
- Ethernet datasheet p.2 USB | RS-232 | RS-422 | RS-485
- Operating temperature
- -40 °C min · datasheet p.2 60 °C max
- Function
- SDR platform (user waveforms) datasheet p.1
- Waveform development
- C/C++ API datasheet p.1 vendor SDK | user FPGA bitstream
- Flight heritage
- The Q8JS, the Flight Model (FM) version of the Q8J, has been flying since September 2023 datasheet p.1
- TX/RX chains (as printed)
- 16 PL GTH transceivers (up to 12.5 Gbps) + 4 clock references, 1 PS GTR transceiver (up to 6 Gbps) datasheet p.2
- FPGA / SoC
- Xilinx Zynq UltraScale+ XCZU7EG datasheet p.2
- Processor
- quad core ARM Cortex A53 Application Processing Unit datasheet p.1 Quad-core ARM Cortex A53 Application Processing Unit at up to 1.2 GHz | Dual core ARM Cortex R5 Real Time Processing Unit at up to 500 MHz
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- RF transceiver
- Analog Devices AD9361 RF agile transceiver
- RF outputs
- 2x
- RF inputs
- 2x
- Pl memory
- 1 GB DDR3
- Flash
- 4 GB NAND Flash
- Interfaces
- Gigabit Ethernet, CAN Bus, SPI, GPS input, PPS input, LVDS GPIO
- Dimensions
- 80 x 106 x 23.5 mm (with Q8J)
- Supply voltage
- 6 to 8.4 V
- Power (Typical)
- 7 W (two RF transmitters active)
About
The Xiphos Q8J SDR is an extremely high-performance software-defined radio platform built on the Xilinx Zynq UltraScale+ MPSoC (via the Q8J host board) and the Analog Devices AD9361 RF agile transceiver. The combination of the Q8J’s JESD204B-capable GTH transceivers with the AD9361 enables a tightly coupled SDR architecture with onboard PL-accessible DDR3 memory providing deterministic, low-latency operation essential for real-time radio processing.
Two RF transmit and two RF receive ports connect to external antennas or RF front-ends. Additional interfaces include Gigabit Ethernet, CAN bus, SPI, a GPS input, PPS timing input, and LVDS GPIO for synchronization and control of ancillary RF hardware.
The Q8J SDR is well-suited for satellite telemetry and command communications, launcher communications, Internet of Things connectivity, and RF sensing payloads. At 7W typical power with both transmitters active, it is among the most power-efficient high-performance SDR solutions available for the space market.
