Deployment System 50 kg
KOSMOLAB Launch Services

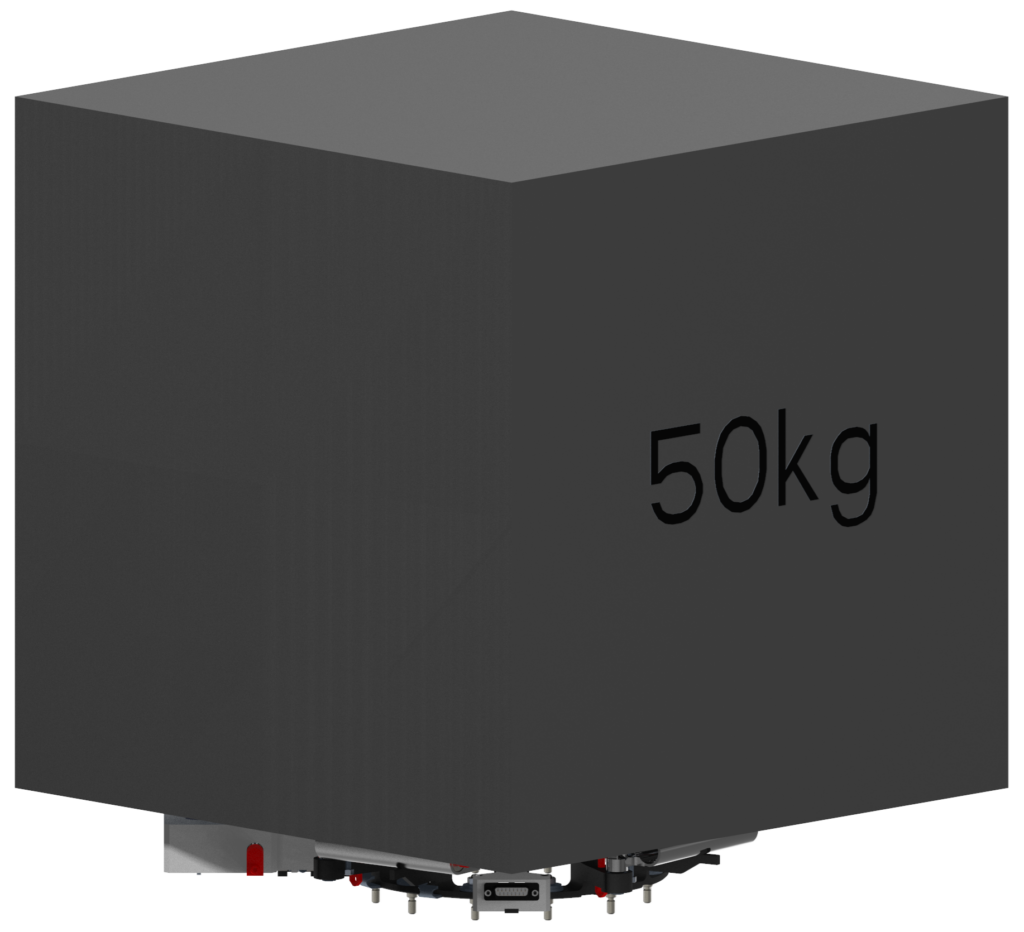

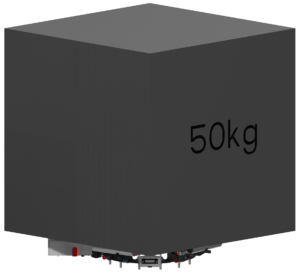

The Deployment System 50 kg (LSO-050) provides smooth, shockless deployment of space satellites weighing up to 50 kg from the upper stage of a launch vehicle.
Key figurescomparable across the catalogue
- Mass
- 4 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Mass
- 4.0 kg
- Max. satellite mass
- 50 kg
- Separation time
- ≤ 1 с
- Separation velocity
- 0.5 — 2.0 м/с
- Angular separation velocity
- ≤ 2 °/с
- Operating temperature
- −60°C to +60°C
About

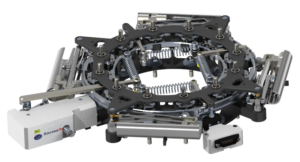

The LSO-050 Deployment System is designed for space satellites weighing up to 50 kg. It features a pyrotechnics-free design, ensuring a smooth and shockless separation of the satellite from the upper stage of the launch vehicle. This system is engineered to provide reliable deployment with precise control over separation parameters. It is suitable for various satellite missions requiring a gentle and controlled release into orbit. The system’s robust design and operational characteristics make it a dependable choice for small satellite deployment.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
