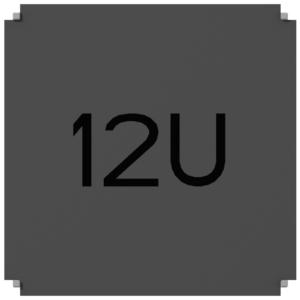

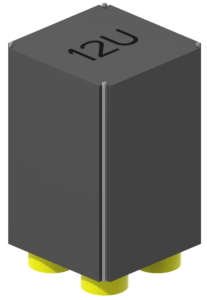

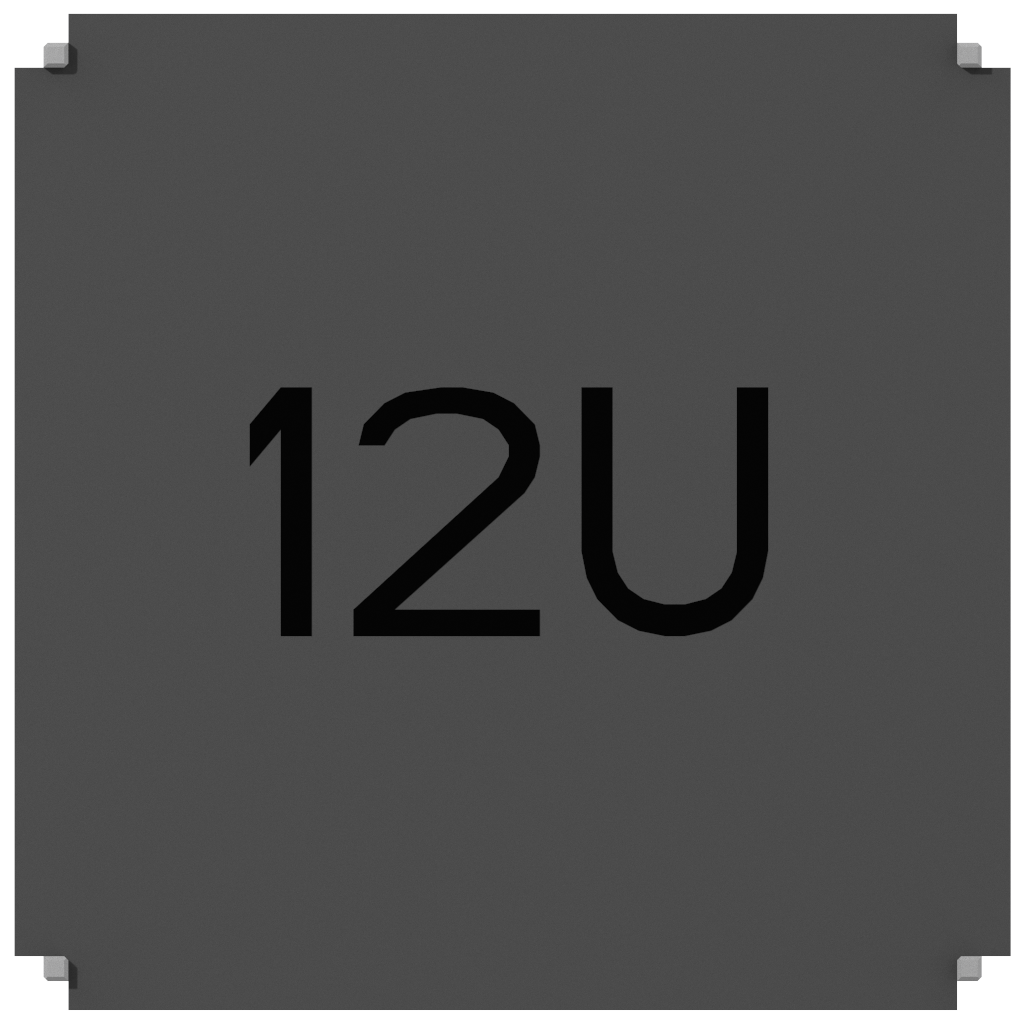

Deployer SERIES 12U
KOSMOLAB Launch Services
The Deployer SERIES 12U is designed for the deployment of a single 12U-class spacecraft, compatible with various launch vehicles including Angara, Soyuz/Fregat, PSLV, and Start-1M.
Key figurescomparable across the catalogue
- Mass
- 8.5 kg
- Largest dimension
- 480 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Dimensions (L×W×H)
- 480 × 290 × 299 mm
- Mass
- 8,5 kg
- Max. satellite mass
- 26 kg
- Separation time
- ≤ 1 с
- Separation velocity
- 0.5 – 2.0 м/с
- Angular separation velocity
- ≤ 2 °/с
- Operating temperature
- −60°C to +60°C
- Payload
- 1 × CubeSat 12U
About
The KosmoLab Deployer SERIES 12U is engineered for the precise deployment of a single 12U-class spacecraft. This deployer is compatible with a range of launch vehicles such as Angara, Soyuz/Fregat, PSLV, and Start-1M, offering versatility for different mission requirements. Customization options are available to ensure the deployer perfectly matches your specific spacecraft requirements. Key specifications include dimensions of 480 × 290 × 299 mm and a mass of 8.5 kg. It can accommodate a maximum satellite mass of 26 kg, with a rapid separation time of less than 1 second. The separation velocity ranges from 0.5 to 2.0 m/s, and the angular separation velocity is kept at or below 2 °/s. The deployer is designed to operate effectively in a wide temperature range, from -60°C to +60°C.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
