Deployer SERIES 2x3U/1x6U
KOSMOLAB Launch Services

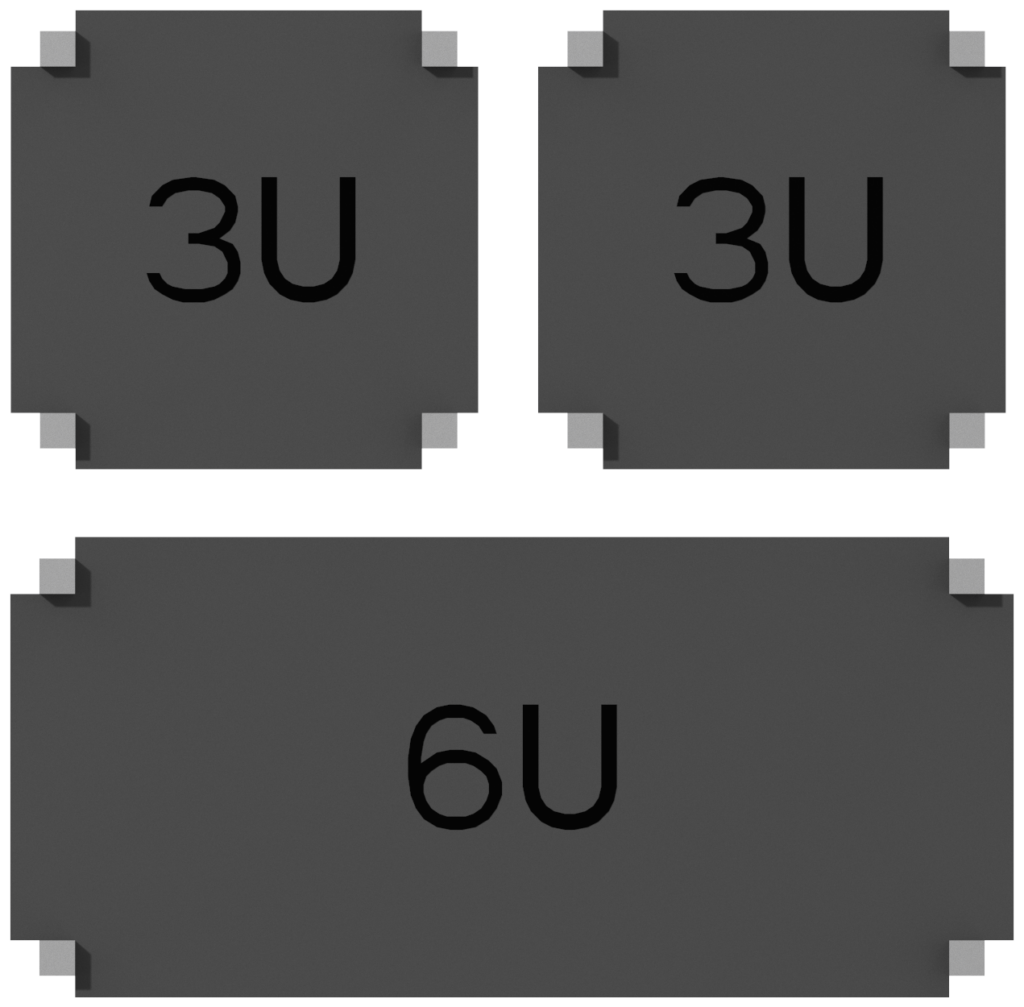

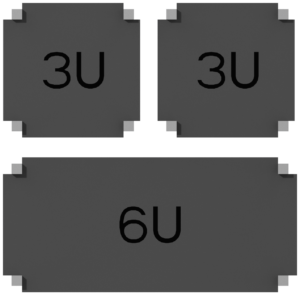

Mixed configuration 2×3U/1×6U enables simultaneous deployment of two 3U and one 6U-class CubeSats in a single launch.
Key figurescomparable across the catalogue
- Mass
- 9.5 kg
- Largest dimension
- 480 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Dimensions (L×W×H)
- 480 × 290 × 299 mm
- Mass
- 9.5 kg
- Max. satellite mass
- 26 kg
- Separation time
- ≤ 1 с
- Separation velocity
- 0.5 – 2.0 м/с
- Angular separation velocity
- ≤ 2 °/с
- Operating temperature
- −60°C to +60°C
- Payload
- 2 × CubeSat 3U + 1 × CubeSat 6U
About

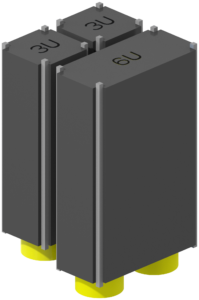

The Deployer SERIES 2x3U/1x6U is designed for the simultaneous deployment of two 3U and one 6U-class CubeSats in a single launch. This system is compatible with various launch vehicles including Angara, Soyuz/Fregat, PSLV, and Start-1M. Customization options are available to meet specific mission requirements. Key specifications include dimensions of 480 × 290 × 299 mm and a mass of 9.5 kg. It can accommodate a maximum satellite mass of 26 kg. The separation time is ≤ 1 second, with a separation velocity ranging from 0.5 to 2.0 m/s and an angular separation velocity of ≤ 2 °/s. The deployer operates effectively in temperatures ranging from −60°C to +60°C. It supports a payload configuration of 2 × CubeSat 3U + 1 × CubeSat 6U.
