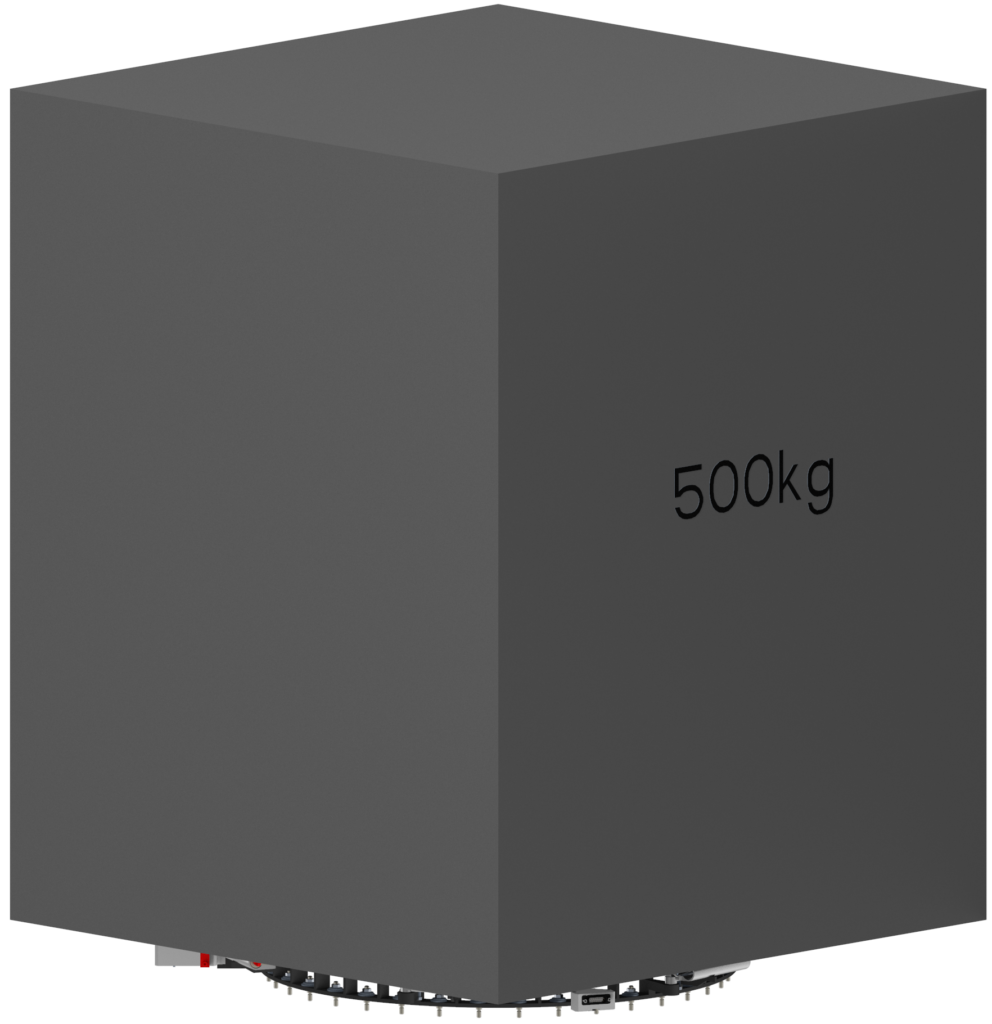

Deployment System 500 kg
KOSMOLAB Launch Services
The Deployment System 500 kg (LSO-500) provides smooth, shockless deployment of space satellites weighing up to 500 kg at the moment of separation from the upper stage of a launch vehicle, without the use of pyrotechnics.
Key figurescomparable across the catalogue
- Mass
- 17 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Mass
- 17 kg
- Max. satellite mass
- 500 kg
- Separation time
- ≤ 1 с
- Separation velocity
- 0.5 — 2.0 м/с
- Angular separation velocity
- ≤ 2 °/с
- Operating temperature
- −60°C to +60°C
About
The KosmoLab Deployment System 500 kg, also known as LSO-500, is designed for space satellites with a mass of up to 500 kg. A key feature of this system is the absence of pyrotechnics, which ensures a smooth and shockless deployment of space satellites. This non-pyrotechnic approach guarantees a gentle separation from the upper stage of the launch vehicle, minimizing any potential impact on the satellite. The system is engineered for reliable performance in the harsh space environment, operating effectively across a wide temperature range. It offers precise control over separation parameters, including velocity and angular velocity, to ensure optimal satellite deployment.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
