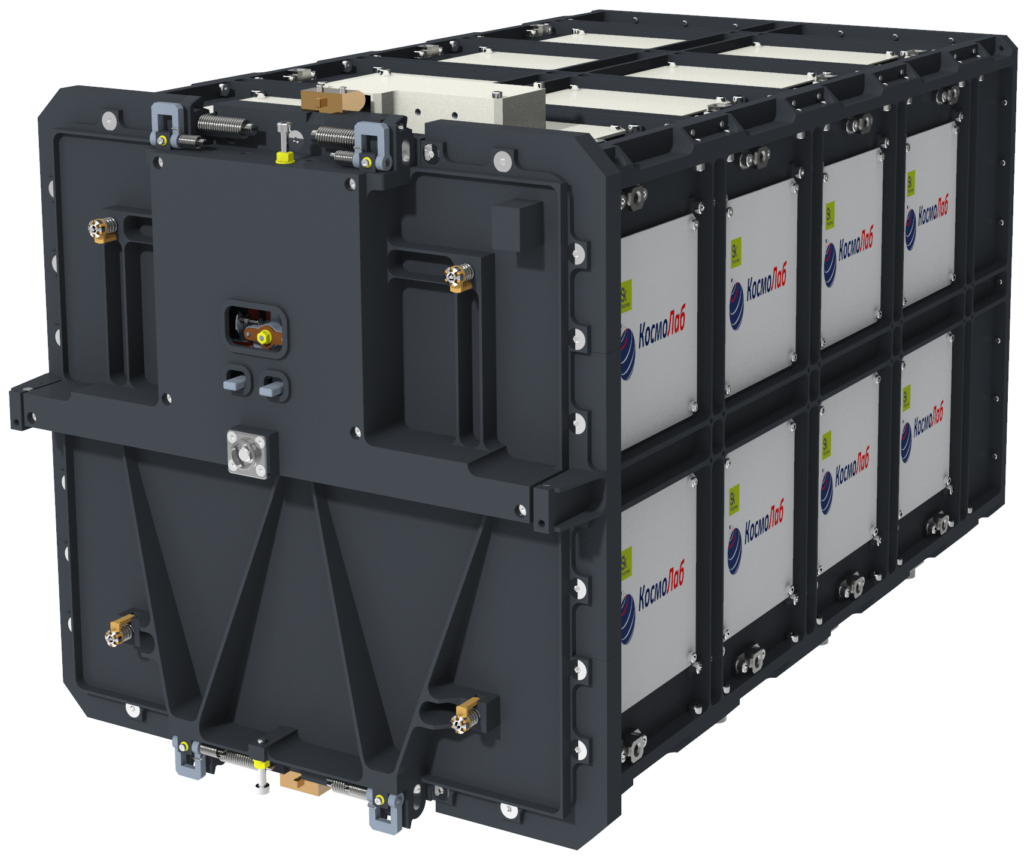

Deployer EXT 16U
KOSMOLAB Launch Services
The Deployer EXT 16U is a CubeSat deployer designed for 16U-class CubeSats, featuring an extended accommodation zone.
Key figurescomparable across the catalogue
- Mass
- 9 kg
- Payload capacity
- 40 kg
- Largest dimension
- 600 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Dimensions (L×W×H)
- 600 × 290 × 299 mm
- Mass
- 9 kg
- Max. satellite mass
- 40 kg
- Separation time
- ≤ 1 s
- Separation velocity
- 0.5 – 2.0 m/s
- Angular separation velocity
- ≤ 2 °/s
- Operating temperature
- −60°C to +60°C
About
The Deployer EXT 16U is a specialized CubeSat deployer configured for 16U-class CubeSats, offering an extended accommodation zone to fit larger payloads. It is compatible with a range of launch vehicles, including Angara/Orion, Soyuz/Fregat, PSLV, and Start-1M, ensuring broad applicability for various missions. Key features include a rapid separation time of less than 1 second, a controlled separation velocity ranging from 0.5 to 2.0 m/s, and a low angular separation velocity of less than 2 degrees per second, ensuring precise and safe deployment of satellites. The deployer is designed to operate in extreme space environments, with an operating temperature range from -60°C to +60°C. Its robust design and compatibility with multiple launch platforms make it a versatile solution for CubeSat deployment.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
