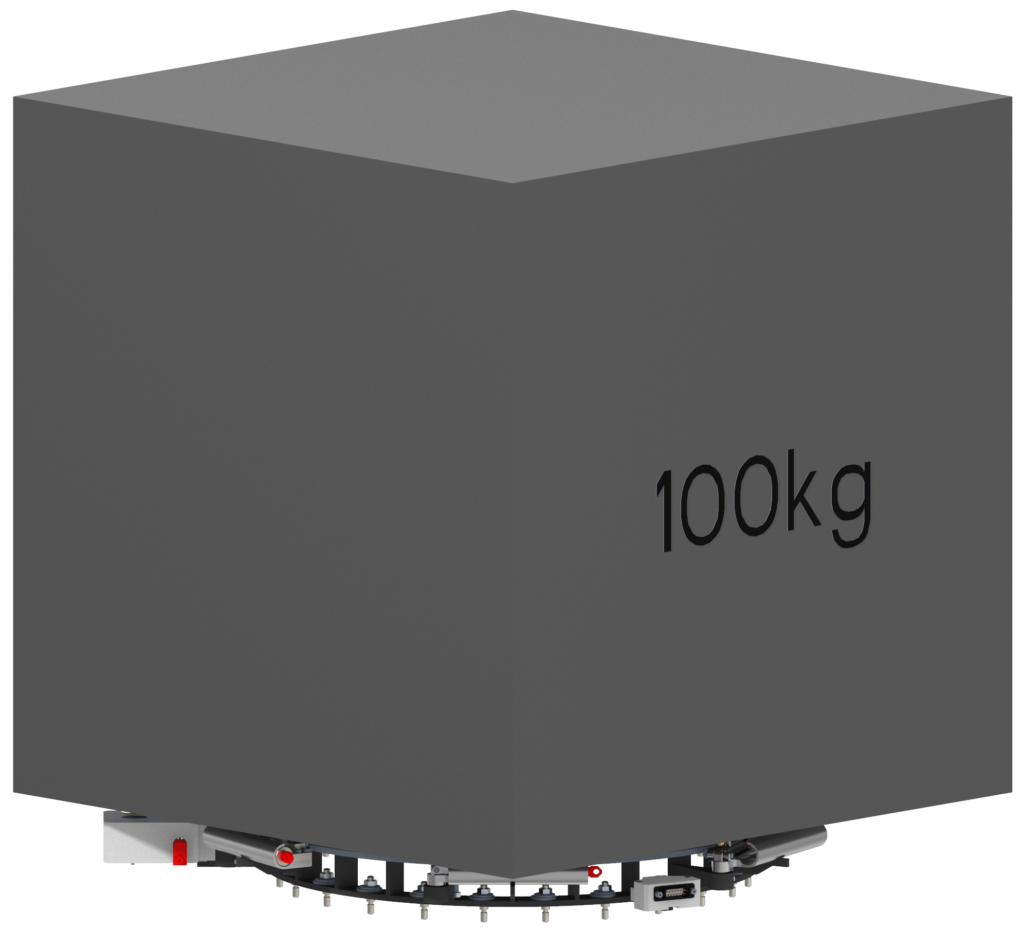

Deployment System 100 kg
KOSMOLAB Launch Services
The KosmoLab Deployment System 100 kg is designed for space satellites up to 100 kg, providing smooth, shockless deployment without pyrotechnics.
Key figurescomparable across the catalogue
- Mass
- 8 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Mass
- 8.0 kg
- Max. satellite mass
- 100 kg
- Separation time
- ≤ 1 с
- Separation velocity
- 0.5 — 2.0 м/с
- Angular separation velocity
- ≤ 2 °/с
- Operating temperature
- −60°C to +60°C
About
The KosmoLab Deployment System 100 kg is specifically engineered for space satellites weighing up to 100 kg. A key feature of this system is the complete absence of pyrotechnics, which ensures a smooth and shockless deployment of space satellites. This design minimizes any potential impact or stress on the satellite at the critical moment of separation from the upper stage of the launch vehicle. The system is built to operate reliably across a wide range of temperatures, from -60°C to +60°C, making it suitable for various space environments. It offers a rapid separation time of less than 1 second and a controlled separation velocity ranging from 0.5 to 2.0 meters per second, with an angular separation velocity of no more than 2 degrees per second.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
