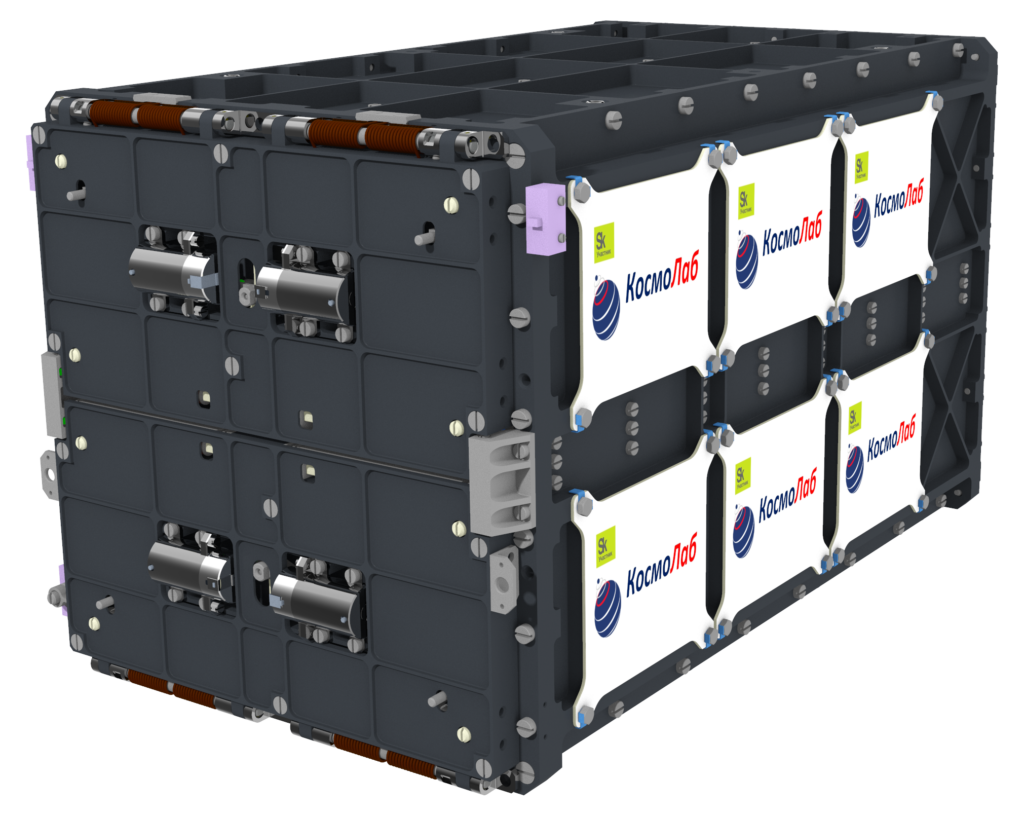

Deployer SERIES 2x6U
KOSMOLAB Launch Services
The Deployer SERIES 2x6U is a CubeSat deployer designed to simultaneously deploy two 6U-class CubeSats, compatible with various launch vehicles.
Key figurescomparable across the catalogue
- Mass
- 9 kg
- Payload capacity
- 26 kg
- Largest dimension
- 480 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Dimensions (L×W×H)
- 480 × 290 × 299 mm
- Mass
- 9 kg
- Max. satellite mass
- 26 kg
- Separation time
- ≤ 1 s
- Separation velocity
- 0.5 – 2.0 m/s
- Angular separation velocity
- ≤ 2 °/s
- Operating temperature
- −60°C to +60°C
- Payload
- 2 × CubeSat 6U
About
The Deployer SERIES 2x6U is a specialized CubeSat deployer engineered for the simultaneous deployment of two 6U-class CubeSats. It is designed to be compatible with a range of launch vehicles, including Angara, Soyuz/Fregat, PSLV, and Start-1M, with customization options available to meet specific CubeSat and launch vehicle requirements. Key features include a rapid separation time of less than 1 second, a separation velocity ranging from 0.5 to 2.0 m/s, and a low angular separation velocity of less than 2 degrees per second. The deployer operates effectively across a wide temperature range, from -60°C to +60°C. Its robust design and customizable nature make it a versatile solution for CubeSat deployment missions.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
