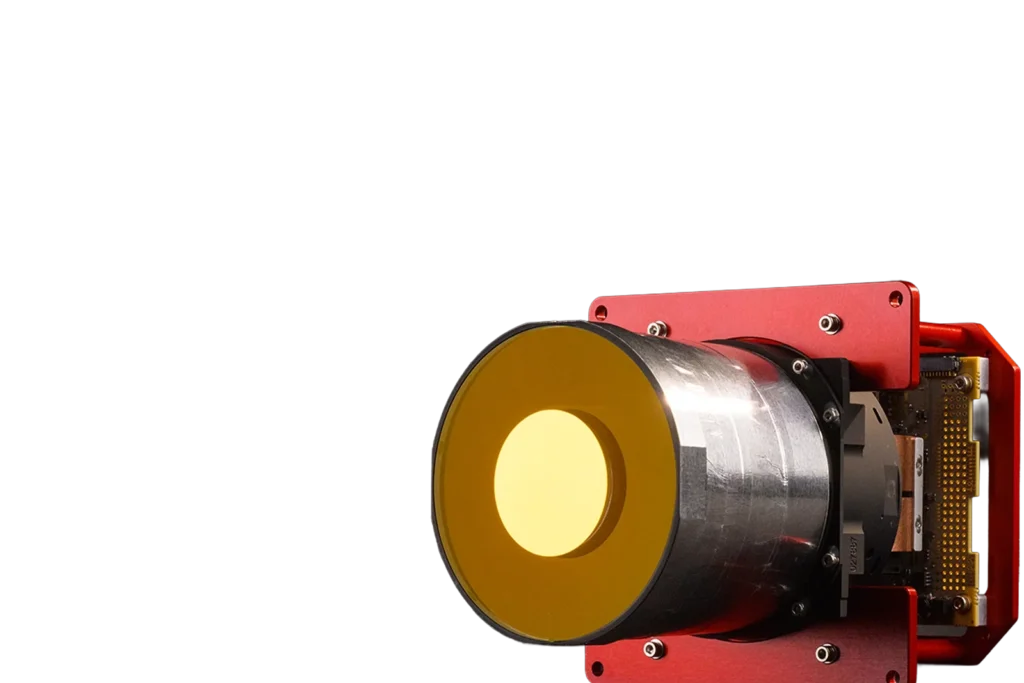

HyperScape100
Simera Sense
The HyperScape100 is a hyperspectral imaging system designed for CubeSats, offering unprecedented imaging capabilities with 32 bands and a 4.75m GSD at 500km.
Typed specifications5 values
Discloses 2 of 14 fields engineers filter by in this category (category median 4).
- Ground sample distance (GSD)
- 4.75 m product page
- Envelope (L×W×H)
- 5.5 µm product page
- Swath width
- 19.4 km product page
- Operating temperature
- -10 °C product page
- Focal length
- 580 mm product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier27 lines, in the manufacturer's own wording
- GSD at 500 km
- 4.75 m
- Swath
- 19.4 km
- Bands
- 32-Bands From 400 Bands
- Form factor
- 1.5U
- Spectral range
- 460–860
- Tdi stages per band
- 1 to 8
- Focal length
- 580 mm
- Aperture
- 95 mm
- Full field of view
- 2.22° (across-track)
- Configuration
- Pushbroom
- Sensor technology
- CMOS global shutter
- Resolution
- 4096 pixels
- Pixel size
- 5.5 µm
- Pixel depth
- 12 bit
- Spectral filter fwhm bandwidth
- 3.5% of central wavelength
- Digital tdi capabilities
- 1 to 8 stages, set individually per band
- Image reduction
- - Binning of RAW data - CCSDS 122.0-B-2 Lossy/Lossless (optional)
- Image preview
- Thumbnailing
- Control interface options
- - I²C - SPI - RS-422 - SpaceWire (ECSS-E-ST-50-12C)
- Data interface options
- - LVDS - SpaceWire (ECSS-E-ST-50-12C)
- Power supply
- 5VDC (±5%), 1.8 A
- Power consumption – idle mode
- 800 mA, 4.00 W
- Power consumption – imaging mode
- 1 550 mA, 7.75 W
- Volume
- 176.5 mm x 98.3 mm x 98.3 mm
- Mass
- 1.26 (±5%) kg
- Operating temperature
- -10°C to +50°C
- Radiation
- Fully functional to 15 kRad
About
The HyperScape100 is a cutting-edge hyperspectral imaging system engineered for CubeSats, pushing the boundaries of small satellite Earth observation. It delivers an unprecedented hyperspectral imaging leap with a Ground Sample Distance (GSD) of 4.75 meters at an altitude of 500 kilometers. The system captures data across 32 bands, selectable from a broader range of 400 bands, covering the spectral range of 460–860. It features 1 to 8 Digital TDI (Time Delay Integration) stages, which can be set individually per band to optimize image quality. The camera operates in a pushbroom configuration using CMOS global shutter sensor technology with a resolution of 4096 pixels and a pixel size of 5.5 µm, providing a 12-bit pixel depth. Its spectral filter offers a FWHM Bandwidth of 3.5% of the central wavelength. For data management, it supports image reduction through binning of RAW data and optional CCSDS 122.0-B-2 Lossy/Lossless compression, along with thumbnailing for image preview. Control interface options include I²C, SPI, RS-422, and SpaceWire (ECSS-E-ST-50-12C), while data interface options are LVDS and SpaceWire (ECSS-E-ST-50-12C). The HyperScape100 is powered by a 5VDC (±5%) supply, drawing 1.8A. Its power consumption is 4.00 W (800 mA) in Idle Mode and 7.75 W (1550 mA) in Imaging Mode. The unit has a compact volume of 176.5 mm x 98.3 mm x 98.3 mm and a mass of 1.26 kg (±5%). It is designed to operate within a temperature range of -10°C to +50°C and is fully functional up to 15 kRad of radiation.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
