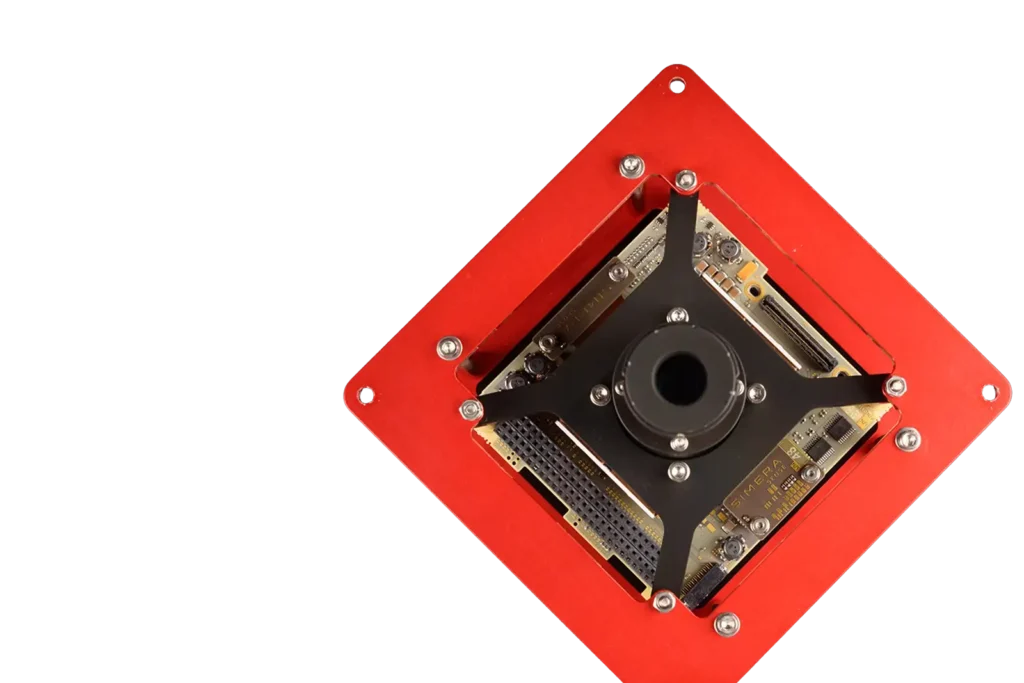

HyperScape50
Simera Sense
The HyperScape50 is a compact 1U hyperspectral imaging system designed for Earth Observation, capable of capturing spectral content across 32 bands from 460–860 nm.
Typed specifications4 values
Discloses 1 of 14 fields engineers filter by in this category (category median 4).
- Envelope (L×W×H)
- 5.5 µm product page
- Spectral bands
- 32 product page
- Operating temperature
- -10 °C product page
- Focal length
- 93.9 mm product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier24 lines, in the manufacturer's own wording
- Focal length
- 93.9 mm
- Aperture
- 11.75 mm
- Full field of view
- 13.68° (across-track)
- Configuration
- Pushbroom
- Sensor technology
- CMOS global shutter
- Resolution
- 4096 pixels
- Pixel size
- 5.5 µm
- Pixel depth
- 12 bit
- Spectral filter
- FWHM bandwidth
- Digital tdi capabilities
- 1 to 8 stages, set individually per band
- Image reduction
- - Binning of RAW data - CCSDS 122.0-B-2 Lossy/Lossless (optional)
- Image preview
- Thumbnailing
- Control interface options
- - I²C - SPI - RS-422 - SpaceWire (ECSS-E-ST-50-12C)
- Data interface options
- - LVDS - SpaceWire (ECSS-E-ST-50-12C)
- Power supply
- 5VDC (±5%), 1.8 A
- Power consumption – idle mode
- 900 mA, 4.50 W
- Power consumption – imaging mode
- 1 100 mA, 7.75 W
- Volume
- 120.5 mm x 95.88 mm x 90.17 mm
- Mass
- 0.51 (±5%) kg
- Operating temperature
- -10°C to +50°C
- Radiation
- Fully functional to 15 kRad
- Spectral range
- 460–860 nm
- Bands
- 32
- Form factor
- 1U
About
The HyperScape50 is a powerful hyperspectral imaging system engineered for global Earth Observation, enabling the capture of detailed spectral content from any point on the planet. It features a compact 1U form factor and operates across a spectral range of 460–860 nm with 32 bands, derived from an initial 400 bands. The camera utilizes a pushbroom configuration with CMOS global shutter sensor technology, offering a resolution of 4096 pixels with a 5.5 µm pixel size and 12-bit pixel depth. It includes digital TDI capabilities with 1 to 8 stages, individually settable per band, and image reduction options such as binning of RAW data and CCSDS 122.0-B-2 Lossy/Lossless (optional). For control, it supports I²C, SPI, RS-422, and SpaceWire (ECSS-E-ST-50-12C) interfaces, while data interfaces include LVDS and SpaceWire (ECSS-E-ST-50-12C). The system is powered by 5VDC and has a mass of 0.51 kg, operating within a temperature range of -10°C to +50°C, and is fully functional up to 15 kRad radiation exposure.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
