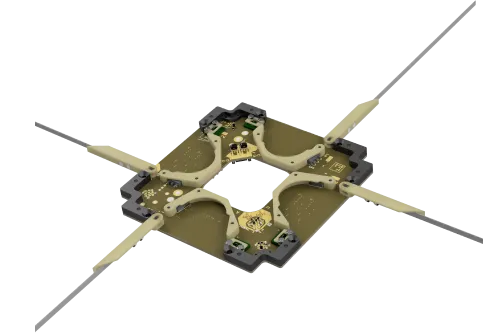

Small Antenna Module (SAM)
Spacemanic s.r.o.
The Small Antenna Module (SAM) is a versatile deployable antenna module for nanosatellite communication systems, offering reliable performance and mission-tailored configurations with plug-and-play integration and deployment redundancy.
Typed specifications50 values
Discloses 7 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- VHF datasheet p.4 UHF
- Peak gain
- 2.6 dBi UHF dipole antenna · datasheet p.4 2.6 dBi UHF dipole antenna gain, ~ | 2.6 dBi UHF turnstile antenna | 2.6 dBi UHF turnstile antenna gain, ~ | 2.3 dBi VHF dipole antenna +1
- Mass
- 55 g nom. · datasheet p.4 55 g ~
- Frequency range
- 380 MHz min · UHF Frequency covering · datasheet p.4 133 MHz min · VHF Frequency covering | 450 MHz max · UHF Frequency covering | 150 MHz max · VHF Frequency covering | 133–150 MHz +3
- Envelope (L×W×H)
- 98 x 98 x 6.2 datasheet p.4 98 x 98 x 10,1 (incl. components)
- Antenna type
- dipole datasheet p.4 crossed dipole or turnstile configurations: UHF cross dipole (turnstile), VHF cross dipol… | dipole configurations: VHF + UHF dipole, 1x/2x UHF or VHF dipole, V-… | cross dipole (turnstile) | V-dipole
- Supply voltage
- 5 V nom. · datasheet p.4 5 V power supply
- Power consumption
- 0.075 W average · datasheet p.4 1.5 W deployment mode (peak) | 1.5 W peak (deployment mode)
- Data interface
- I2C datasheet p.5 I2C CSP v1 | UART debug/CLI, 3.3V level | RS-485 | RS-485 CSP v1 +1
- Operating temperature
- -40–85 °C datasheet p.4
- Lead time
- 12 months product page
- RF connector
- MMCX Molex MMCX 73415-1000 · datasheet p.6
- Fixed or deployable
- deployable datasheet p.4
- Connector
- Molex PicoBlade 53261-0971 datasheet p.5 Molex PicoLock 503763-0691 | Molex MMCX 73415-1000
- Flight heritage
- Flight heritage on multiple missions (e.g. LASARsat, CroCube, GRBBeta and external customers). datasheet p.4
- Satellite class
- CubeSat mounted on the very top or bottom of the CubeSat structure · datasheet p.6
- Missions flown
- 1 datasheet p.4
- Fits satellite size
- 1U 1U SAM · datasheet p.1
- RF ports
- 2 datasheet p.6
- Deployment mechanism
- deployable mechanism with two-level deployment safety feature; RF elements NiTi, element boxes and string holders PEEK, brass hinges; recommended deployment temperature 0 to +40 °C datasheet p.4
- Mounting
- mounted on the very top or bottom of the CubeSat structure; four M2.5x8 CSK head screws into M2.5 clearance holes on two sides; four M2.5x6 screws into M2.5 threaded holes on the other two sides for an additional solar panel datasheet p.6
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Operating temperature
- -40°C to +85°C
- Dimensions
- 98 x 98 x 6.2 mm
- Dimensions (inc. components)
- 98 x 98 x 10.1 mm
- Mass
- 55 g
- Power supply
- 5 V
- Power consumption (average)
- 0.075 W
- Power consumption (peak – deployment mode)
- 1.5 W
- Frequencies (VHF Band)
- 133 – 150 MHz
- Frequencies (UHF Band)
- 380 – 450 MHz
- Interfaces (CSP v1)
- I2C
- Interfaces (CSP v1) (2)
- RS485
- Interfaces (CSP v1) (3)
- UART (Plain text CLI)
- Flight heritage
- Yes
- ITAR free
- Yes
- Lead time
- 12 weeks
About
The Small Antenna Module (SAM) is a versatile deployable antenna module specifically designed for nanosatellite communication systems. It offers reliable performance and mission-tailored configurations, available in multiple VHF and UHF variants. Key features include plug-and-play integration and deployment redundancy, ensuring a clear signal and long reach for continuous connectivity. The product includes the module with an aluminium cover, refurbishment tooling, refurbishment wires, a debug cable, a platform cable, an Interface Control Document, 1 hour of engineering support, and shipping & packaging in a hardcase. It is ITAR free and has flight heritage. Configurations available include UHF + VHF dipole, UHF cross dipole (turnstile), VHF cross dipole (turnstile), UHF dipole, VHF dipole, UHF V-dipole, and VHF V-dipole.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
