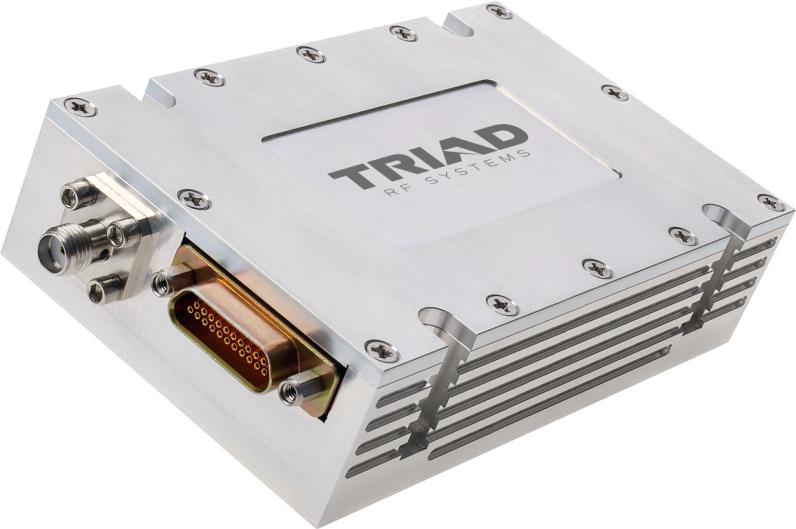

TA1216
Triad RF Systems
300-6000 MHz, 32 W SISO GaN power amplifier covering a very wide bandwidth for military and commercial use.
Typed specifications36 values
Discloses 5 of 13 fields engineers filter by in this category (category median 3).
- Mass
- 269 g datasheet p.2 269 g 9.5 oz
- Frequency range
- 300 MHz min · datasheet p.2 6 000 MHz max | 300–6 000 MHz | 300–6 000 MHz operating frequency
- Envelope (L×W×H)
- 95.4 x 58.4 x 24.1 mm datasheet p.2 95.4 x 58.4 x 24.1 L x W x H; 3.755 x 2.3 x 0.95 in
- TX RF output power
- 31.62 W nom. · saturated power output, CW sweep at design limit, typ. · datasheet p.2 1 W 64QAM Power Output, 20 MHz BW, -27 dB EVM Limit | 15.85 W BPSK Power Output, 20 MHz BW, -7 dB EVM Limit | 32 W headline rating | 31.62 W Saturated Power Output, CW Sweep at Design Limit +2
- Modulation
- 64QAM datasheet p.2 BPSK
- Supply voltage
- 28 V nom. · typ. · datasheet p.2 12 V min | 30 V max | 12–30 V | 12–30 V supply voltage range
- Data interface
- other Temperature Monitor Output, Temp in DegC = (Vout - 0.5V) * 100 · datasheet p.4
- Operating temperature
- -40–85 °C datasheet p.3 -40–85 °C housing temperature
- Function
- other SISO power amplifier (class AB GaN) · datasheet p.1
- Link use
- other military or commercial radio systems, unmanned systems, vehic… · datasheet p.1
- RF connector
- SMA Input / Output · datasheet p.3 SMA RF input, SMA-F | SMA RF output, SMA-F
- Connector
- SMA-F / SMA-F (RF Connectors) datasheet p.3 MDM-21SCBRP (Power / Signal Connector)
- Survival temperature
- -55–85 °C datasheet p.3 -55–85 °C storage temperature
- RF gain
- 55 dB nom. · small signal gain, typ. · datasheet p.2 51 dB min · small signal gain
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Frequency low
- 300 MHz
- Frequency high
- 6000 MHz
- P1db dbm (Typ)
- 42
- Tx gain
- 55 dB
- Supply voltage (Vdc)
- 12-30
- Psat (Typ)
- 45
- Dimensions
- 3.755 x 2.3 x 0.95 in
About
The TA1216 SISO Power Amplifier is a class AB GaN module with an operating frequency range of 300 to 6000 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +12 to +30 VDC and a saturated RF output power of +45 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are key. Features: Over / Under / Reverse Voltage Protection, Temperature Monitor Output, Over-Temperature Protection. Applications: Military or Commercial Radio Systems, Unmanned Systems, Vehicle Systems, Aircraft Systems, Fixed Site Infrastructure.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
