THPR1076
Triad RF Systems
Range Enhanced DTC L-Band radio system, 2-channel MIMO with 40 W total amplified Tx power.
Typed specifications38 values
Discloses 6 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- L 1140-1450 MHz L-Band coverage · datasheet p.1 L TX
- Mass
- 1 474 g datasheet p.4 1 474 g 52 oz
- Frequency range
- 1 140 MHz min · datasheet p.3 1 450 MHz max | 1 140–1 450 MHz operating frequency
- Envelope (L×W×H)
- 139.7 x 137.7 x 71.1 mm datasheet p.4 139.7 x 137.7 x 71.1 L x W x H, without fans installed; 5.5 x 5.42 x 2.8 in
- TX RF output power
- 5 W Per MIMO Stream (20+ Mbps) · datasheet p.3 20 W Per MIMO Stream (5 Mbps) | 40 W total, 2x20 W amplified Tx power | 5 W min · per MIMO stream, 20+ Mbps | 20 W min · per MIMO stream, 5 Mbps
- Data rate
- 5 000 kbps power output per MIMO stream 20 W · datasheet p.3 20 000 kbps min · 20+ Mbps, power output per MIMO stream 5 W
- Supply voltage
- 28 V nom. · typ. · datasheet p.3 16 V min | 32 V max | 16–32 V Input Voltage | 16–32 V supply voltage range +16 to +32
- Power consumption
- 40 W product page
- Data interface
- USB datasheet p.5 USB internal microcontroller | USB radio USB0 | UART RS232 | Ethernet +1
- Operating temperature
- -45 °C min · datasheet p.3 70 °C max | -45–70 °C ambient operating temperature, with fans installed
- Function
- transceiver datasheet p.1
- Link use
- other UAS, UGV and USV video/data links; military MANET; point-to-p… · datasheet p.1
- RF connector
- other Antenna RF Connectors, TNC-F · datasheet p.4 TNC TNC-F antenna RF connectors
- Connector
- TNC-F datasheet p.4 801-011-07M10-2PA | 801-011-07M13-37PA
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Radio core
- DTC
- Band
- L
- Mimo streams
- 2
- Frequency low
- 1140 MHz
- Frequency hi
- 1450 MHz
- Total thpr power
- 40 W
- Dimensions
- 5.5 x 5.42 x 2.8 in
About

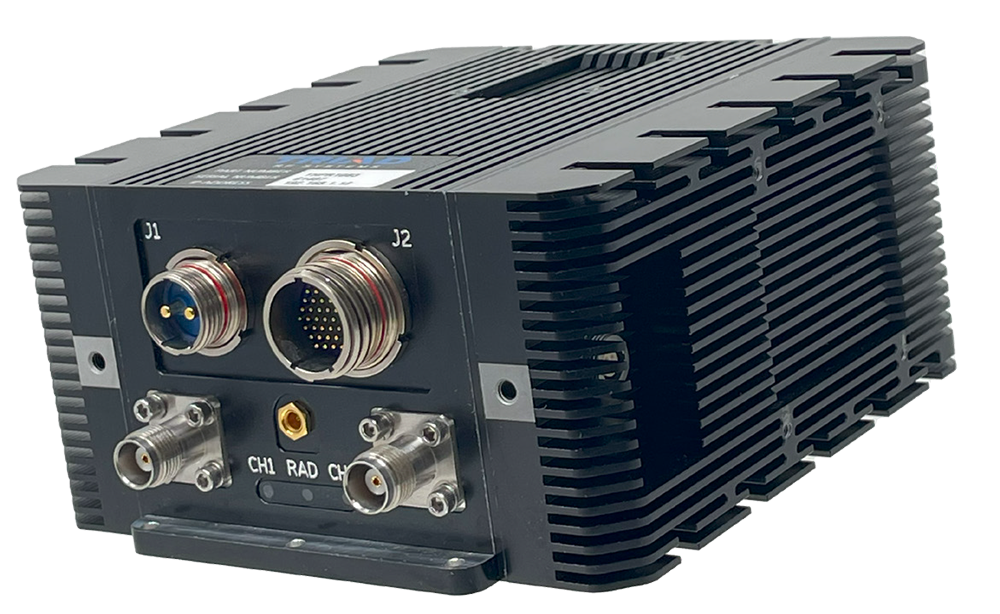

The THPR1076 Triad High Power Radio (THPR) contains a DTC SOL8SDR-C-132043 radio at its core and combines with Triad’s high-power RF subsystems in a low SWaP package. This 2 channel, L-Band amplified radio integrates the necessary DTC radio with Triad’s RF amplification, control circuitry, and interfaces to achieve higher RF output power, greater throughput, and longer link distances than the stand-alone radio. Offering +16 to +32 VDC input voltage, this THPR contains BDAs, RF filtering, and innovative SoC-based monitoring and controls, with real-time power measurement and link diagnostics. Features: 1140-1450 MHz L-Band coverage, 40W (20W per channel) amplified Tx power, integrated DTC SOL8SDR-C-132043 MIMO radio, compatible with other DTC radios and networks, optional cooling fans. Applications: Long distance high data rate ISR links, UAS/UGV/USV video and data links, military MANET, maritime high-throughput LOS/NLOS systems, point-to-point and mesh networking.
