On-Board Data Handling
VECTRONIC Aerospace GmbH
VECTRONIC Aerospace On-Board Data Handling systems are designed for small satellite applications, processing telecommands and providing autonomy with event-triggered processes.
Typed specifications1 values
Discloses 0 of 13 fields engineers filter by in this category (category median 5).
- Flight heritage
- 7 slightly different On-Board Data Handling systems in Orbit and several others waiting for launch product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier4 lines, in the manufacturer's own wording
- Power consumption
- around 1.5 W
- Signal interface
- user definable number of standard asynchronous SCI’s on RS422/RS485 level
- Baud rate
- adjustable up to 1Mbaud
- Flight heritage
- 7 slightly different On-Board Data Handling systems in Orbit and several others waiting for launch
About

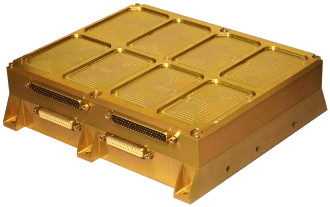

VECTRONIC Aerospace On-Board Data Handling systems are specifically designed for small satellite applications. The system is capable of processing both direct and time-tagged telecommands, and offers enhanced autonomy through user-defined event-triggered processes. It includes standard functionalities for collecting, formatting, and interpreting spacecraft housekeeping data. The system architecture prioritizes high performance and offers optional redundant modules to improve reliability. With a power consumption of approximately 1.5 W, it is well-suited for small satellite operations. The system features interfaces for umbilical lines and Electrical Ground Support Equipment (EGSE), along with a significant number of digital and analogue I/O lines. An HPC command interface is available upon request. The signal interface is highly configurable, allowing for a user-definable number of standard asynchronous SCIs at RS422/RS485 level. Subsystems can be connected in either a star configuration or a bus architecture, and the baud rate is adjustable up to 1 Mbaud. VECTRONIC Aerospace has flight heritage with 7 slightly different On-Board Data Handling systems successfully operating in orbit, with several more awaiting launch.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
