Deployer SERIES 4x3U
KOSMOLAB Launch Services

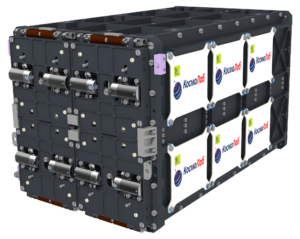

The Deployer SERIES 4x3U enables simultaneous deployment of four 3U-class CubeSats and is compatible with various launch vehicles.
Key figurescomparable across the catalogue
- Mass
- 10 kg
- Largest dimension
- 480 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Dimensions (L×W×H)
- 480 × 290 × 299 mm
- Mass
- 10 kg
- Max. satellite mass
- 26 kg
- Separation time
- ≤ 1 с
- Separation velocity
- 0.5 – 2.0 м/с
- Angular separation velocity
- ≤ 2 °/с
- Operating temperature
- −60°C to +60°C
- Payload

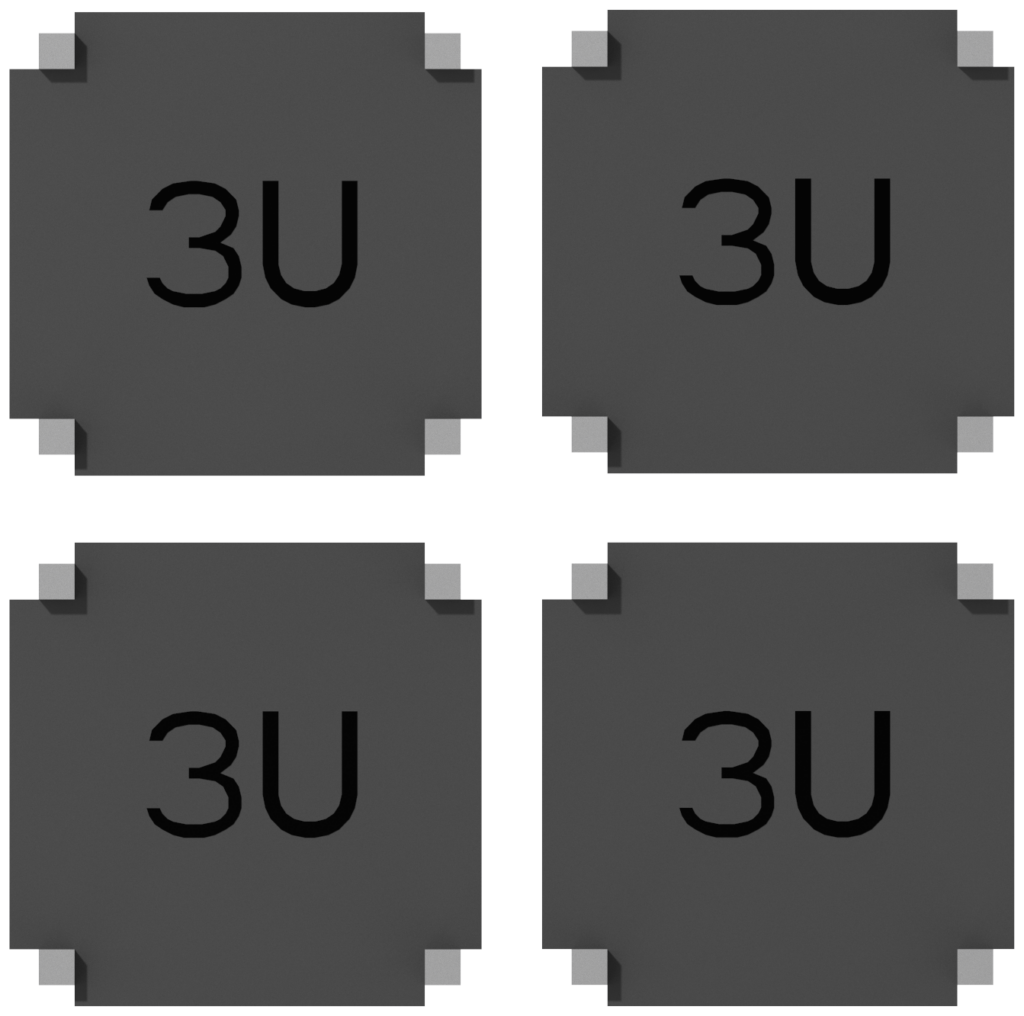

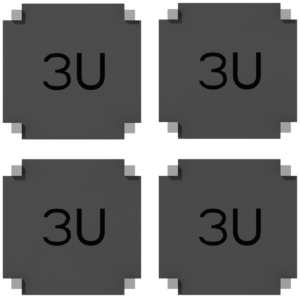

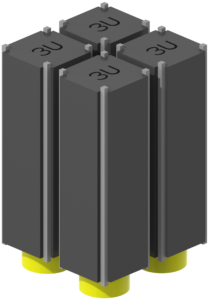

- 4 × CubeSat 3U
About
The Deployer SERIES 4x3U is designed for the simultaneous deployment of four 3U-class CubeSats. This system is compatible with a range of launch vehicles, including Angara, Soyuz/Fregat, PSLV, and Start-1M. Customization options are available to meet specific CubeSat and launch vehicle requirements. The deployer has dimensions of 480 × 290 × 299 mm and a mass of 10 kg. It can accommodate a maximum satellite mass of 26 kg. The separation time is less than or equal to 1 second, with a separation velocity ranging from 0.5 to 2.0 m/s. The angular separation velocity is maintained at less than or equal to 2 °/s. The operating temperature range for the deployer is from -60°C to +60°C.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
