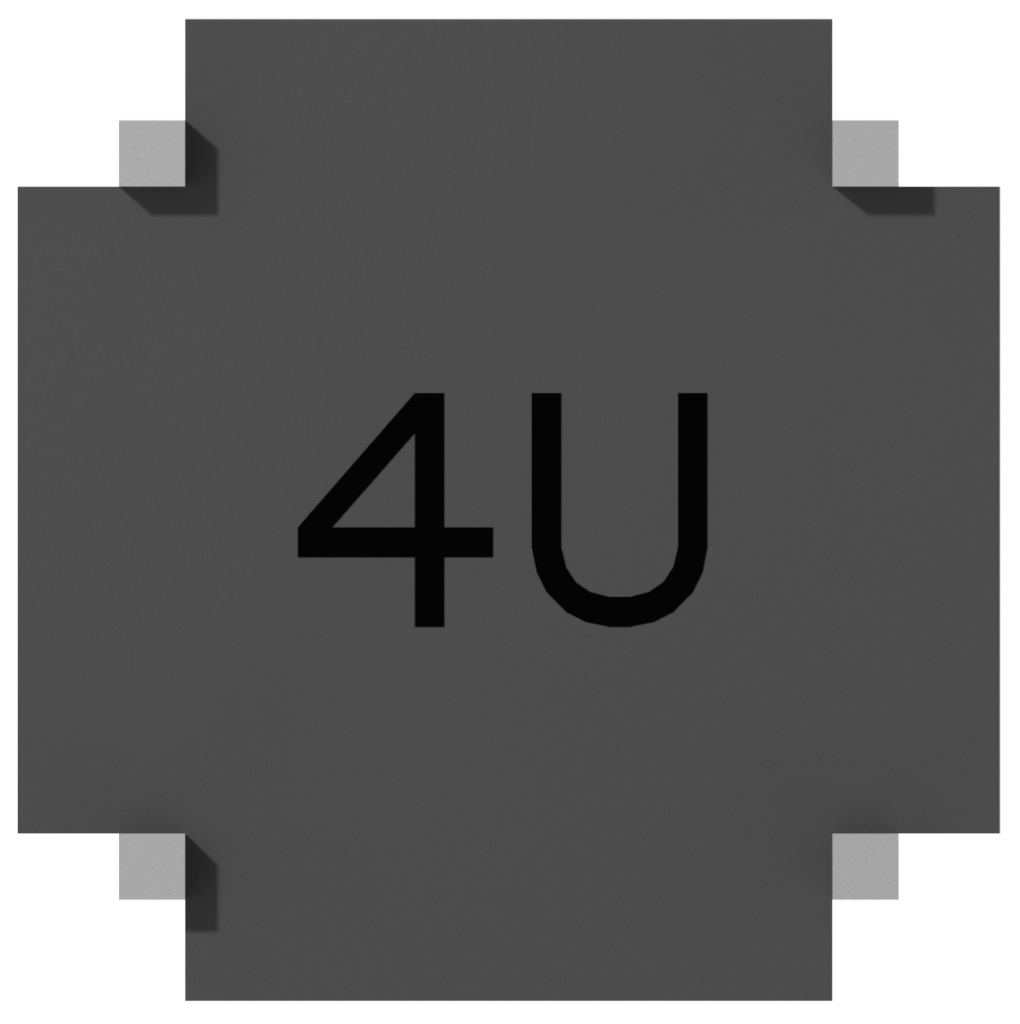

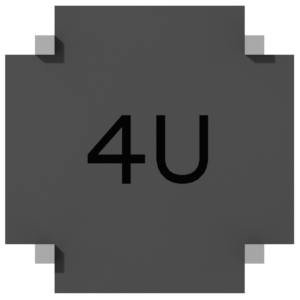

Deployers 4U
KOSMOLAB Launch Services
KosmoLab Deployers 4U provide transport and deployment of 4U-class CubeSats, compatible with various launch vehicles including Angara, Soyuz/Fregat, PSLV, and Start-1M.
Key figurescomparable across the catalogue
- Mass
- 4.7 kg
- Largest dimension
- 557 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Dimensions (L×W×H)
- 557 × 158 × 187 mm
- Mass
- 4.7 kg
- Max. satellite mass
- 6 kg
- Separation time
- <= 1 с
- Separation velocity
- 0.5 — 2.0 м/с
- Angular separation velocity
- <= 2 °/с
- Operating temperature
- −60°C to +60°C
About
KosmoLab Deployers 4U are designed for the transport and deployment of 4U-class CubeSats. These deployers are compatible with a range of launch vehicles, such as Angara, Soyuz/Fregat, PSLV, and Start-1M. Customization options are available to match specific requirements of your CubeSat, allowing for modifications of KosmoLab 3U/4U Deployers to suit unique project needs. The system is engineered for reliable separation with a separation time of less than or equal to 1 second and a separation velocity ranging from 0.5 to 2.0 m/s. It also maintains an angular separation velocity of less than or equal to 2 degrees per second, ensuring precise deployment. The deployers are built to operate in a wide temperature range, from -60°C to +60°C.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
