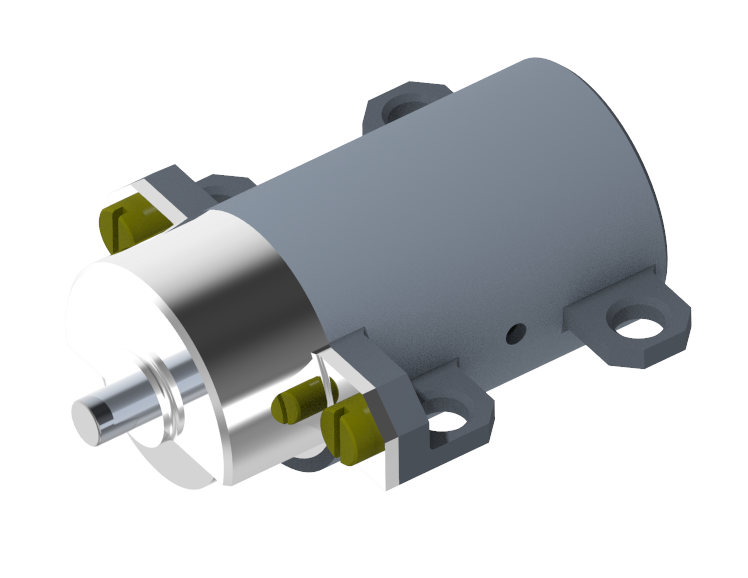

Electric Lock
KOSMOLAB Launch Services
The KosmoLab Electric Lock is designed for the release of actuating mechanisms in space-rocket hardware, with modifications available to meet specific requirements.
Key figurescomparable across the catalogue
- Mass
- 0.1 kg
- Largest dimension
- 48.7 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Dimensions (L×W×H)
- 48.7 × 37.4 × 22.4 mm
- Mass
- ≤ 0.1 kg
- Armature stroke
- ≥ 4.5 mm
- Pull force
- 0.45 ± 0.05 kg
- Operating temperature
- -60°C to +60°C
About
The Electric Lock from KosmoLab is engineered for the reliable release of actuating mechanisms within space-rocket hardware. KosmoLab offers modifications of the Electric Lock to align with your specific requirements and technical specifications. This includes comprehensive development, production, and acceptance tests of the actuating mechanism to ensure optimal performance and reliability. Customers are encouraged to mail their application and required parameters to KosmoLab, who will then provide an optimal and complex solution tailored to their needs. The product is designed for critical applications in the space industry, ensuring precise and controlled release operations.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
