C-RED 2 ER Extended SWIR Camera
First Light Imaging
Extended SWIR camera on 640x512 ER-InGaAs detectors with sensitivity shifted to 1.9 um or 2.2 um, 600 fps full frame.
Typed specifications22 values
Discloses 6 of 14 fields engineers filter by in this category (category median 4).
- Envelope (L×W×H)
- 640 x 512 pixels ER-InGaAs product page
- Sensor resolution
- 0.328 Mpx VGA (640x512 pixels) · datasheet p.1
- Spectral bands
- 1 1.1 µm to 1.9 µm · datasheet p.4 1 1.2 to 2.2 µm
- Data interface
- other CameraLink (CL) interface · datasheet p.3 USB First Light Vision compatible with USB and CL interfaces | CL
- Operating temperature
- -40 °C min · datasheet p.6 -55 °C min
- Camera type
- hyperspectral datasheet p.7 SWIR extended range SWIR (eSWIR) | LWIR (thermal)
- Scan mode
- frame VGA framing camera · datasheet p.1
- Spectral range
- 1 100–1 900 nm C-RED 2 ER 1.9 um version · datasheet p.1 1 100–1 900 nm C-RED 2 ER 1.9µm | 1 300–2 200 nm C-RED 2 ER 2.2 um version (p.3 states 1.2 to 2.2 um) | 1 300–2 200 nm C-RED 2 ER 2.2µm
- Detector
- InGaAs (SWIR) extended range ER-InGaAs detector array · datasheet p.1
- Frame rate
- 600 fps datasheet p.1 600 fps max · up to
- Sensor format (pixels)
- 640 x 512 VGA · datasheet p.1
- Lens mount
- C-mount optical interface · datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Full sensitivity range (QE > 10%)
- 1100-1900 nm (1.9 um model) / 1300-2150 nm (2.2 um model)
- Quantum efficiency > 70%
- 1150-1800 nm (1.9 um model) / 1380-2050 nm (2.2 um model)
- Sensor size
- 640 x 512 pixels ER-InGaAs
- Pixel pitch
- 15 micrometres
- Maximum speed full frame
- 600 fps
- Readout noise
- < 50 e- at -40 C (1.9 um) / < 40 e- at -55 C (2.2 um)
- Dark current
- 20 ke/p/s at -40 C (1.9 um) / 120 ke/p/s at -55 C (2.2 um)
- Quantization
- 14 bit
- Image full well capacity at 600 FPS
- 1500 ke- low gain / 130 ke- medium gain / 34 ke- high gain
- Maximum speed 32 x 4
- 32066 fps min
- Maximum speed 320 x 256
- 1779 fps
- Cooling
- Integrated two-stage thermoelectric cooler, up to 60 C cooling capability
About

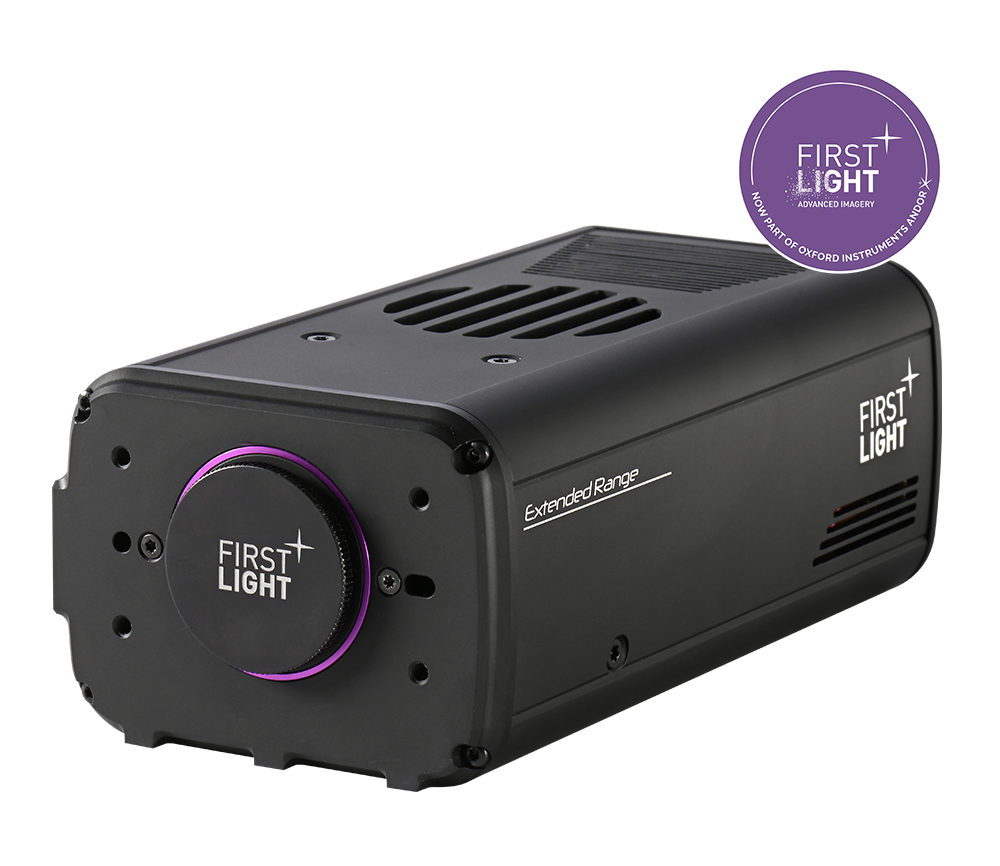

C-RED 2 ER is a highly sensitive extended SWIR camera based on a VGA (640 x 512 pixels) ER-InGaAs detector array. The camera offers framerates up to 600 Hz. The C-RED 2 ER camera can support two detectors with shifted sensitivity up to 1.9 micrometres and to 2.2 micrometres.
C-RED 2 ER is a highly sensitive extended InGaAs camera series for extended SWIR imaging and opens new imaging and sensing opportunities for life science, research, laser measurements, and industrial applications.
The detectors are VGA (640 x 512 pixels) with a 15 micrometre pixel pitch for high resolution, and with peak quantum efficiency above 70%. All models are able to run at 600 fps full frame, and up to 32066 fps in cropping mode. In addition, all models have an integrated two-stage thermoelectric cooler, which enables a cooling capability up to 60 C.
C-RED 2 ER 1.9 um and C-RED 2 ER 2.2 um are complementary to C-RED 2 in terms of sensitivity, as they cover the high end of the SWIR spectrum. The C-RED 2 ER 1.9 um achieves a readout noise below 50 e- while the C-RED 2 ER 2.2 um readout noise is below 40 e-.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
