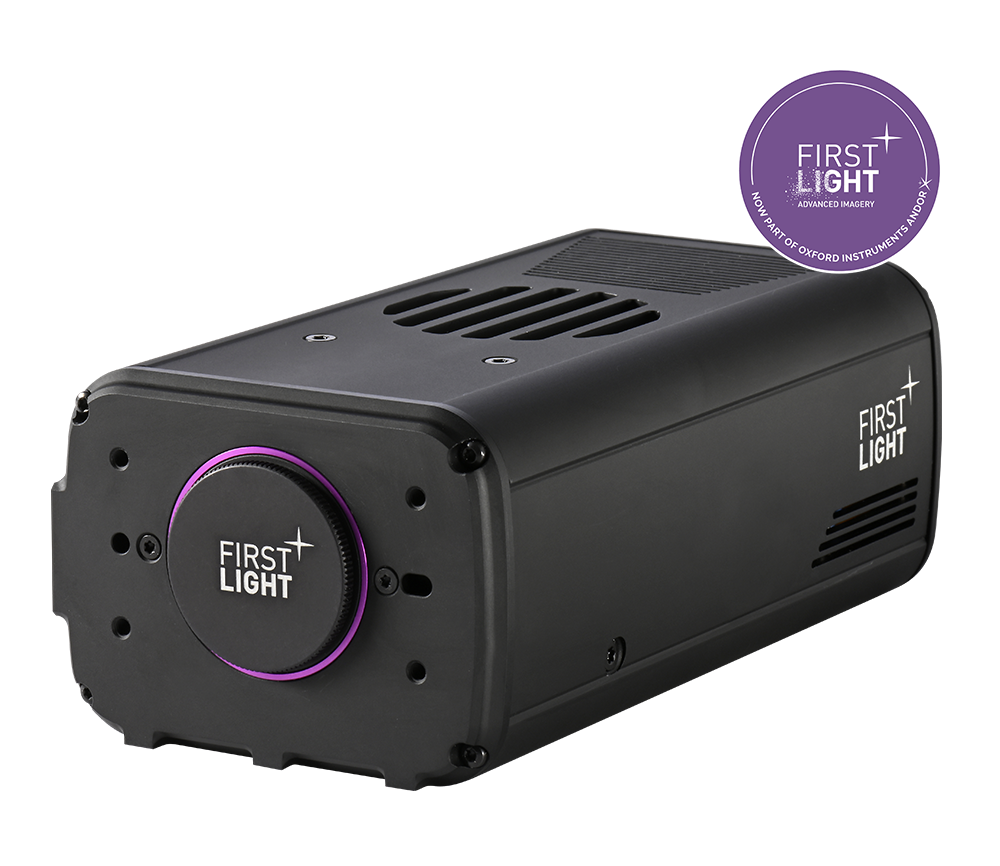

C-RED 2 SWIR Camera
First Light Imaging
High speed low noise SWIR camera running 600 fps full frame with readout noise under 30 electrons and dark current under 600 e/p/s.
Typed specifications31 values
Discloses 6 of 14 fields engineers filter by in this category (category median 4).
- Mass
- 900 g weight · datasheet p.3
- Envelope (L×W×H)
- 640 x 512 pixels, InGaAs PIN photodiode product page
- Sensor resolution
- 0.328 Mpx datasheet p.3
- Supply voltage
- 100–240 V power requirements, 50-60 Hz · datasheet p.5
- Power consumption
- 90 W max · max. power consumption · datasheet p.5
- Data interface
- other CameraLink full output · datasheet p.3 USB USB 3.1 Gen 1 output
- Operating temperature
- -5–35 °C datasheet p.3
- Camera type
- SWIR 0.9 - 1.7 um · datasheet p.1
- Scan mode
- frame full frame / windowing · datasheet p.3
- Spectral range
- 900–1 700 nm datasheet p.1
- Connector
- C-Mount datasheet p.4
- Survival temperature
- -40–70 °C storage temperature · datasheet p.5
- Detector
- InGaAs (SWIR) InGaAs photodiode detector · datasheet p.1
- Bit depth
- 16 bit HDR mode, 93 dB and 16 bits · datasheet p.3 14 bit quantization | 16 bit | 14 bit
- Frame rate
- 32 066 fps 32 x 4 (min) · datasheet p.4 1 779 fps 320 x 256 | 600 fps full frame | 32 066 fps max · 32 x 4 (min) window, CameraLink | 1 779 fps max · 320 x 256 window +4
- Sensor format (pixels)
- 640 x 512 datasheet p.3
- Pixel pitch
- 15 µm pixel pitch · datasheet p.3
- Exposure time
- 0.005–60 000 ms printed as integration pulses shorter than 5 us and long expo… · datasheet p.2
- Lens mount
- C-mount optical interface · datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Spectral range
- SWIR 0.9 - 1.7 micrometres
- Sensor size
- 640 x 512 pixels, InGaAs PIN photodiode
- Pixel pitch
- 15 micrometres
- Maximum speed full frame
- 600 fps
- Readout noise
- < 30 e- at high gain, Tint 50 us, 600 fps full frame
- Dark current at -40 c
- < 600 e/p/s
- Quantization
- 14 bit
- Flat quantum efficiency 1.0-1.65 um
- > 70%
- Operability
- > 99.8% (pixels with signal +/- 0.3 x median at 20 C)
- Image full well capacity
- 1400 ke- low gain / 128 ke- medium gain / 33 ke- high gain
- Maximum speed 32 x 4
- 32066 fps min
- Maximum speed 320 x 256
- 1779 fps
About
C-RED 2 is a revolutionary high speed low noise SWIR camera able to run at 600 fps full frame with a very low noise under 30 electrons and ultra low dark current under 600 e/p/s.
To achieve this performance, C-RED 2 integrates a 640 x 512 InGaAs PIN photodiode detector with 15 micrometre pixel pitch for high resolution, which embeds an electronic shutter with integration pulses shorter than 5 microseconds.
C-RED 2 offers dark optimization for long exposure times up to 60 seconds and high dynamic range of 93 dB and true 16 bits. Designed for high-end low light SWIR applications, C-RED 2 offers new opportunities for science, research and industry.
