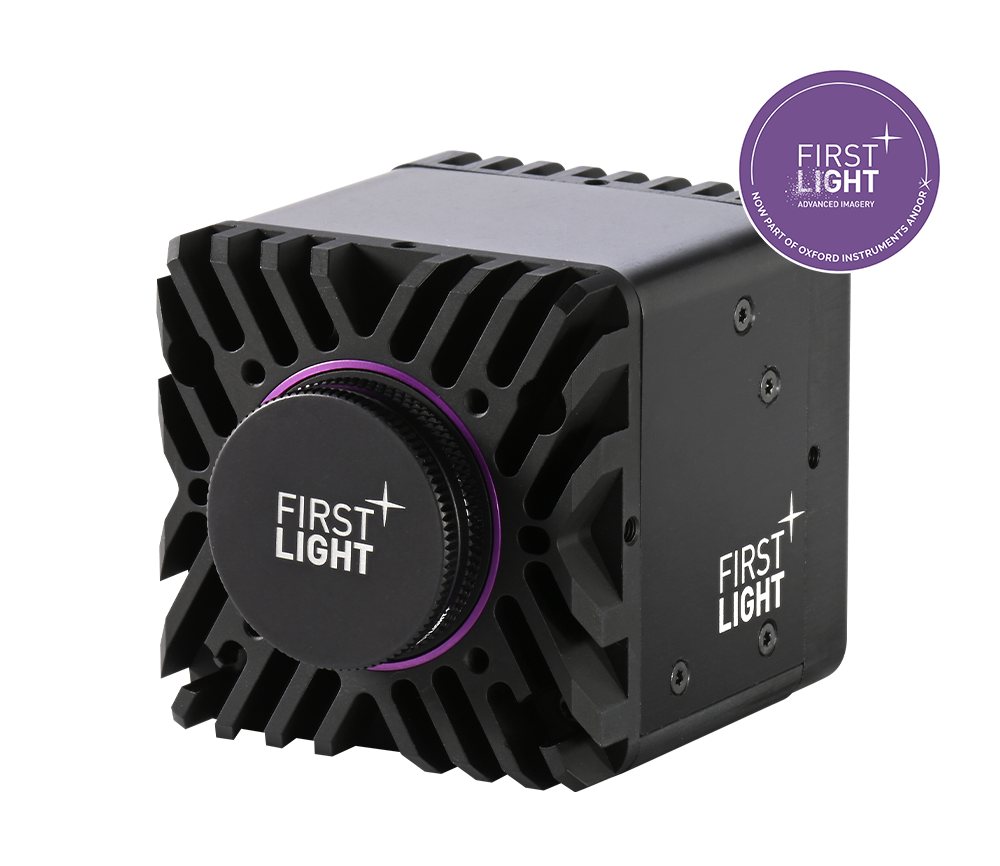

C-RED 3 SWIR Camera
First Light Imaging
Very compact high-speed uncooled VGA SWIR camera for short exposure times, with patented adaptive bias and OEM core version.
Typed specifications36 values
Discloses 6 of 14 fields engineers filter by in this category (category median 4).
- Mass
- 100 g OEM version without housing · datasheet p.4 230 g standard version
- Envelope (L×W×H)
- 640 x 512 pixels, InGaAs PIN photodiode product page 55 x 55 x 60 OEM module, low SWaP | 55x55x60 mm3 OEM version
- Sensor resolution
- 0.33 Mpx datasheet p.2
- Supply voltage
- 100–240 V power requirements, 50-60 Hz · datasheet p.5
- Power consumption
- 18 W Max. power consumption · datasheet p.8 18 W max · max. power consumption
- Data interface
- USB 3.1 Gen 1 datasheet p.4 other CameraLink output | USB USB 3.1 Gen 1 output | CameraLink®
- Operating temperature
- -40–35 °C ambient operating temperature range · datasheet p.3
- Camera type
- SWIR 0.9 - 1.7 um · datasheet p.1
- Scan mode
- frame full frame / windowing (ROI) · datasheet p.2
- Spectral range
- 900–1 700 nm datasheet p.1
- Survival temperature
- -40–60 °C storage temperature · datasheet p.5
- Detector
- InGaAs (SWIR) TECless InGaAs detector · datasheet p.1
- Bit depth
- 16 bit HDR mode, 91 dB and 16 bits · datasheet p.3 14 bit quantization
- Frame rate
- 600 fps full frame mode · datasheet p.4 600 fps Maximum speed Full Frame | 32 066 fps Maximum speed in 32 x 4 (min) | 1 779 fps Maximum speed in 320 x 256 | 32 066 fps windowing (ROI) mode +4
- Sensor format (pixels)
- 640 x 512 datasheet p.3
- Pixel pitch
- 15 µm pixel pitch · datasheet p.1
- Exposure time
- 0.005 ms min · electronic shutter, integration pulses shorter than 5 us, ful… · datasheet p.2
- Lens mount
- C-mount optical interface · datasheet p.3 custom T-Mount optical interface | CS-mount optical interface
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Spectral range
- SWIR 0.9 - 1.7 micrometres
- Sensor size
- 640 x 512 pixels, InGaAs PIN photodiode
- Pixel pitch
- 15 micrometres
- Maximum speed full frame
- 600 fps
- Readout noise
- < 40 e- at high gain, Tint 50 us, 600 fps full frame
- Quantization
- 14 bit
- Flat quantum efficiency 1.0-1.65 um
- > 70%
- Operability
- > 99.5% (pixels with signal +/- 0.3 x median at 20 C)
- Image full well capacity
- 1400 ke- low gain / 120 ke- medium gain / 33 ke- high gain
- Maximum speed 32 x 4
- 32066 fps min
- Maximum speed 320 x 256
- 1779 fps
- Cooling
- Uncooled, with patented adaptive bias
- Optical interface
- C-Mount / CS-Mount / T-Mount; OEM core version without housing
About
Specially designed for short exposure time applications, C-RED 3 is a very compact high-speed VGA uncooled camera for short wave infrared (SWIR) imaging.
C-RED 3 uses a 640 x 512 InGaAs PIN photodiode detector with 15 micrometre pixel pitch for high resolution, which embeds an electronic shutter with integration pulses shorter than 5 microseconds. The cooling system has been removed and the electronics squeezed to give a low size, weight and power consumption camera. C-RED 3 offers high performance at short integration times, below 10 ms.
A patented adaptive bias allows the camera to be used in any variable temperature environment. Autonomous, ultra compact and also available for OEM, C-RED 3 offers a solution for every application and every budget.
Easy integration: the camera can be easily integrated in a system thanks to the holes on the bottom, the side or the front, and has a C-Mount / CS-Mount / T-Mount optical interface for the objective. The core version, without housing, is even easier to fit into any custom system.
