C-RED New Space SWIR Camera Core
First Light Imaging
SWIR camera core on a space-approved 640x512 InGaAs sensor for satellite optical payloads, 600 fps full frame and up to 32066 fps windowed.
Typed specifications31 values
Discloses 8 of 9 fields engineers filter by in this category (category median 4).
- Envelope (L×W×H)
- 640 x 512 pixels (0.3 Mp), InGaAs product page
- Sensor resolution
- 0.3 Mpx datasheet p.2
- Spectral bands
- 1 0.9 - 1.7 µm · datasheet p.2
- Supply voltage
- 100–264 V power requirements, 50-60 Hz mains supply · datasheet p.3
- Power consumption
- 0.5 W Sensor · datasheet p.3 6 W stack | 0.5 W min · sensor | 13.9 W max · sensor
- Data interface
- CameraLink® datasheet p.3 other CameraLink high-throughput interface
- Operating temperature
- 65 °C max · ambient · datasheet p.3 70 °C max · backend | 90 °C max · CPU | 60 °C max · sensor | -20–70 °C interface
- Camera type
- SWIR 0.9 - 1.7 um · datasheet p.1
- Scan mode
- frame full frame / windowing (cropping) mode · datasheet p.2 other Space optical payloads, Earth observations, Environmental mon…
- Spectral range
- 900–1 700 nm datasheet p.1
- Survival temperature
- -40 °C min · datasheet p.4 60 °C max | -40–60 °C storage temperature
- Satellite class
- CubeSat key applications: Cubesats · datasheet p.1
- Detector
- InGaAs (SWIR) VGA InGaAs sensor · datasheet p.2
- Bit depth
- 16 bit High Dynamic Range mode, 93 dB and true 16 bits · datasheet p.2 14 bit quantization
- Frame rate
- 32 066 fps 32 x 4 (min) pixels windowing · datasheet p.2 1 779 fps 320 x 256 pixels | 600 fps full frame 640 x 512
- Sensor format (pixels)
- 640 x 512 datasheet p.2
- Pixel pitch
- 15 µm pixel pitch · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Spectral range
- SWIR 0.9 - 1.7 micrometres
- Sensor size
- 640 x 512 pixels (0.3 Mp), InGaAs
- Pixel pitch
- 15 micrometres
- Quantization
- 14 bit
- Readout noise
- < 30 e- at high gain, Tint 50 us, 600 fps full frame at 5 C
- Flat quantum efficiency 1.1-1.65 um
- > 70%
- Operability
- > 99.8% (pixels with signal +/- 0.3 x median at 20 C)
- Image full well capacity
- 1.4 Me- low gain / 115 ke- medium gain / 34 ke- high gain
- Frame rate full frame
- 600 fps
- Frame rate 320 x 256
- 1779 fps
- Frame rate 32 x 4
- 32066 fps min
- Dynamic range
- 93 dB, true 16 bit
About

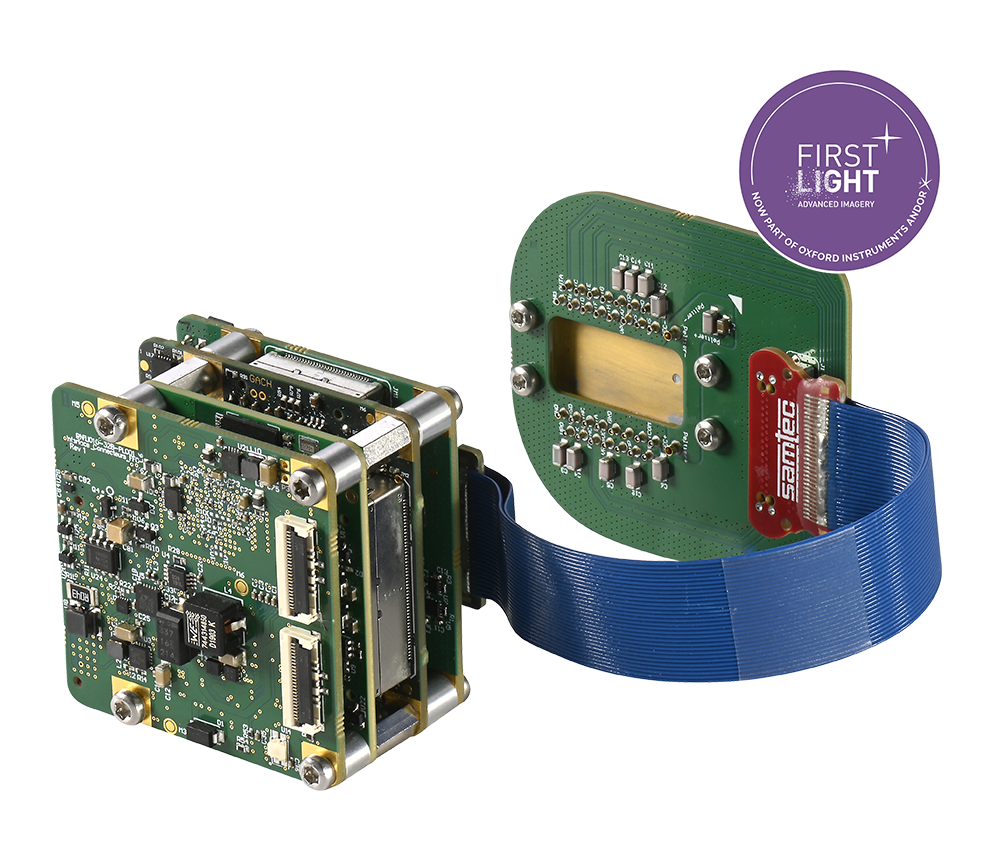

C-RED New Space is a SWIR camera core specifically designed to uphold optical excellence and withstand the extreme conditions of space operations.
It is based on a VGA InGaAs space-approved sensor with a resolution of 640 x 512 pixels and a 15 micrometre pixel pitch, for a successful seamless integration into any system, specifically satellite optical payloads. The camera offers extensive customization in hardware, electronic design and firmware to ensure optimal performance and support the demanding conditions of space operations.
The camera offers a full frame acquisition speed of 600 frames per second and up to 32066 frames per second in 32 x 4 windowing mode. Its high frame rate optimizes temporal resolution, making it invaluable for applications that involve rapid changes or movements. This high framerate is combined with extreme sensitivity and high dynamic range, without compromises.
C-RED New Space offers a readout noise below 30 electrons and a 93 dB true 16 bit high dynamic range mode: it enables imaging and sensing in ultra low light conditions and various light intensities. Additionally, the camera can operate across a large operational temperature range, making it suitable for challenging environments. Its advanced thermal design ensures low and repeatable noise, as well as maintained quantum efficiency performances.
