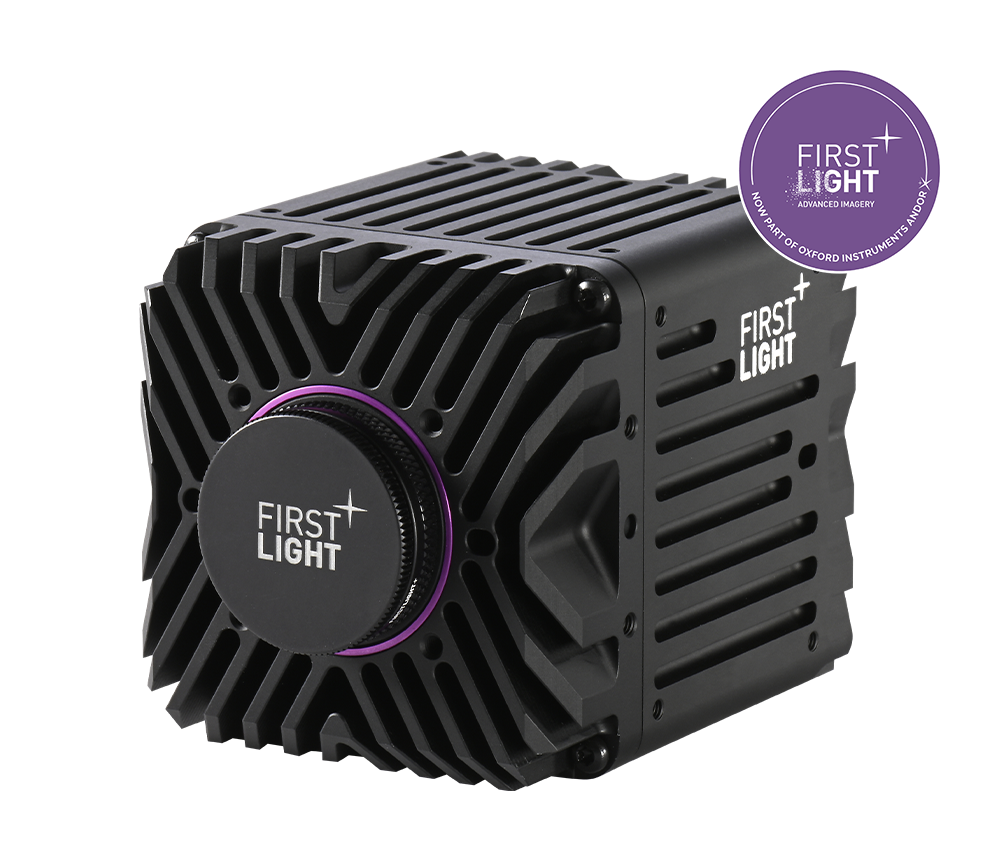

C-RED 2 Lite SWIR Camera
First Light Imaging
Compact fanless TEC-stabilized SWIR camera running 600 fps with under 30 electrons readout noise, optionally water-cooled.
Typed specifications34 values
Discloses 7 of 14 fields engineers filter by in this category (category median 4).
- Mass
- 460 g weight · datasheet p.3
- Envelope (L×W×H)
- 65 x 65 x 78.1 mm datasheet p.5
- Sensor resolution
- 0.328 Mpx datasheet p.3
- Spectral bands
- 1 datasheet p.3
- Supply voltage
- 85 V min · datasheet p.9 264 V max | 85–264 V power requirements, 47-63 Hz
- Power consumption
- 25 W Max. · datasheet p.8 25 W max · max. power consumption
- Data interface
- other CameraLink output · datasheet p.3 USB USB 3.1 Gen 1 output | other Output
- Operating temperature
- -40 °C min · datasheet p.3 48 °C max | -40–48 °C ambient operating temperature range
- Camera type
- SWIR 0.9 - 1.7 um · datasheet p.1
- Scan mode
- frame full frame / windowing · datasheet p.3
- Spectral range
- 900–1 700 nm datasheet p.1
- Survival temperature
- -40 °C min · datasheet p.9 70 °C max | -40–70 °C storage temperature
- Detector
- InGaAs (SWIR) 640 x 512 TEC InGaAs detector · datasheet p.2
- Bit depth
- 16 bit HDR mode, 93 dB and 16 bits · datasheet p.3 14 bit quantization
- Frame rate
- 600 fps full frame · datasheet p.3 32 066 fps max · 32 x 4 (min) window, CameraLink | 1 779 fps max · 320 x 256 window | 600 fps max · maximum speed full frame 640 x 512 | 9 999 fps max · USB 3 output
- Sensor format (pixels)
- 640 x 512 datasheet p.3
- Pixel pitch
- 15 µm pixel pitch · datasheet p.1
- Exposure time
- 0.005 ms min · electronic shutter, integration pulses shorter than 5 us · datasheet p.2
- Lens mount
- C-mount optical interface · datasheet p.3 CS-mount optical interface
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Spectral range
- SWIR 0.9 - 1.7 micrometres
- Sensor size
- 640 x 512 pixels, InGaAs PIN photodiode
- Pixel pitch
- 15 micrometres
- Maximum speed full frame
- 600 fps
- Readout noise
- < 30 e- at high gain, Tint 50 us, 600 fps full frame at 5 C
- Quantization
- 14 bit
- Flat quantum efficiency 1.0-1.65 um
- > 70%
- Operability
- > 99.8% (pixels with signal +/- 0.3 x median at 35 C)
- Maximum speed 32 x 4
- 32066 fps min
- Maximum speed 320 x 256
- 1779 fps
- Cooling
- Fanless TEC stabilization; optional water-cooling plate
About
C-RED 2 Lite is a compact high speed low noise TEC-stabilized SWIR camera, able to run at 600 fps with 30 electrons readout noise. With an optimized algorithm for precise sensor temperature stabilization, C-RED 2 Lite does not make any compromise on camera performances.
The most recent addition to the C-RED family, C-RED 2 Lite is the stabilized version of C-RED 2 with no fan. It can also be water-cooled for better performances with an optional cooling plate. With an optimized algorithm for precise sensor temperature stabilization, C-RED 2 Lite does not make any compromise on camera performances despite environmental fluctuations.
The camera integrates a 640 x 512 InGaAs PIN photodiode detector with 15 micrometre pixel pitch for high resolution, which embeds an electronic shutter with integration pulses shorter than 5 microseconds. C-RED 2 Lite is specially designed for quantitative applications such as laser beam profiling, hyperspectral imaging and thermography.
