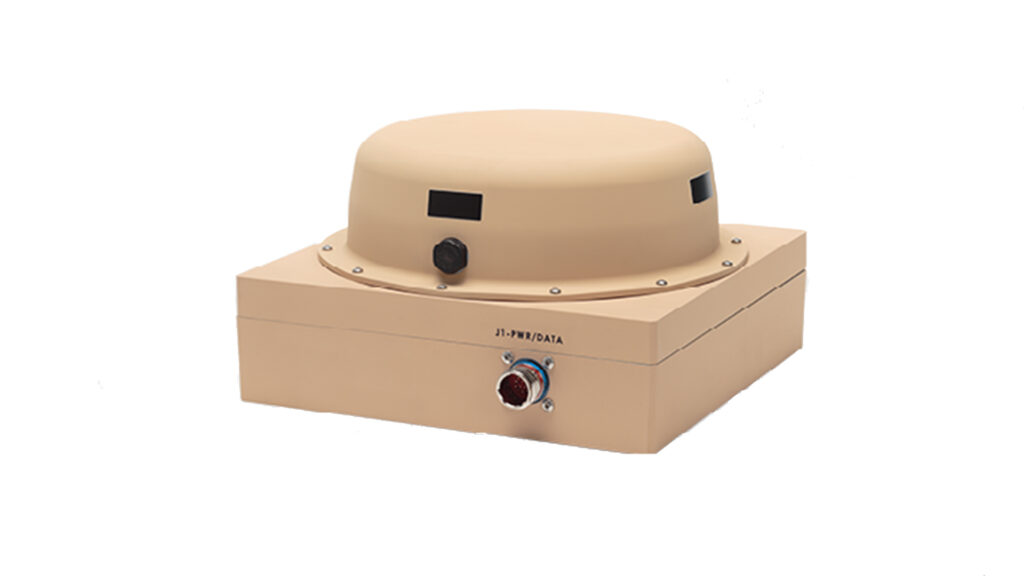

L-Band Terminals
Viasat, Inc.
Viasat's L-band mobile transceivers increase capacity for greater throughput capabilities, providing instant, accurate, friend-or-foe position mapping and communications for split-second decisions.
Typed specifications31 values
Discloses 5 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- L commercial L-band satellites · datasheet p.2
- Mass
- 1 088.62 g Aviation Modem assembly · datasheet p.2 1 270.06 g Aviation RF assembly | 2 721.55 g Ground Mobile
- Envelope (L×W×H)
- 4.50 x 4.50 x 5.95 in. Aviation Modem assembly · datasheet p.2 11.00 x 4.00 x 3.56 in. Aviation RF assembly | 8.75 x 8.75 x 4.75 in. Ground Mobile
- Data rate
- 122 kbps Forward Link, Inmarsat-4, 200 kHz channel · datasheet p.2 2.8 kbps Return Link, per transceiver, Inmarsat-4, 200 kHz channel | 122 kbps min · forward link, Inmarsat-4, 200 kHz channel, and higher | 2.8 kbps min · return link per transceiver, Inmarsat-4, 200 kHz channel, and…
- Modulation
- DVB-S2 Forward Link · datasheet p.2 Spread GMSK, turbo-coded Return Link | GMSK Return Link Waveform | GMSK return link, spread GMSK
- Supply voltage
- 20 V min · datasheet p.2 33 V max | 20–33 V | 20–33 V prime power
- Power consumption
- 2.5 W max · datasheet p.2
- Operating temperature
- -40–71 °C datasheet p.2
- Function
- transceiver datasheet p.1
- Link use
- ground terminal vehicular / aviation mobile transceiver · datasheet p.1
- Link protocol
- DVB-S2 forward link waveform based on DVB-S2 · datasheet p.2
- Survival temperature
- -55–85 °C datasheet p.2 -55–85 °C storage
- Random vibration
- MIL-STD 461, 464 and 810 Compliant datasheet p.2
- Missions flown
- 60 000 datasheet p.1
- Channel coding (FEC)
- turbo return link · datasheet p.2
- Encryption
- AES-256 bulk encryption of user and control data plane, FIPS-140-2 Le… · datasheet p.2
- Channel bandwidth
- 200 kHz datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
About
Viasat’s L-band mobile transceivers are designed to enhance situational awareness for warfighters by increasing capacity for greater throughput capabilities and delivering faster refresh rates for position location updates. These transceivers are currently deployed on over 100,000+ tactical platforms within the U.S. military, powering next-generation situational awareness systems like the Blue Force Tracking 2 (BFT2) program. They offer flexible customization to meet diverse mission requirements, operating on agnostic systems for both sovereign and coalition-interoperable networks, across ground and space segments. The BFT2 system, specifically, provides faster position location information (PLI) refresh rates, timely command & control (C2) communications across the battlefield, and improved network efficiency, ultimately reducing the Department of Defense’s total operational expenditure for this capability.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
