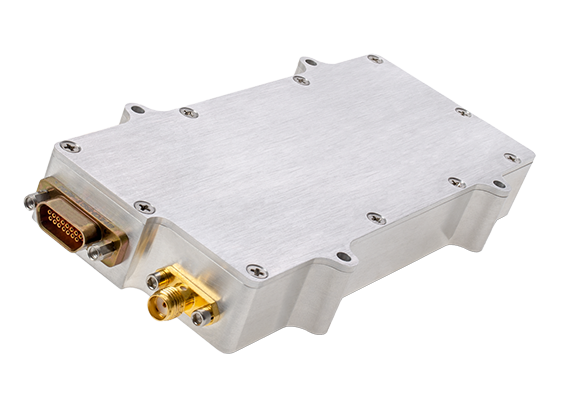

TTRM1116
Triad RF Systems
1200-1400 MHz, 40 W GaN bi-directional amplifier (BDA) with integrated Tx/Rx switching.
Typed specifications60 values
Discloses 8 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- UHF TX/RX · datasheet p.1
- Mass
- 198.45 g with heatsink · datasheet p.2 113.4 g without heatsink
- Frequency range
- 1 200 MHz min · Operating · datasheet p.1 1 200 MHz min · TX/RX | 1 400 MHz max · Operating | 1 400 MHz max · TX/RX | 1 200–1 400 MHz operating frequency
- Envelope (L×W×H)
- 4.93 x 2.53 x 0.7 in datasheet p.2 4.93 x 2.53 x 0.7 L x W x H
- TX RF output power
- 39.81 W nom. · TX PSat, typ. · datasheet p.1 40 W headline rating | 39.81 W PSat Power Output | 17 W min · 802.11g OFDM 16QAM 36 Mbps, EVM <= -21 dB | 10 W min · 802.11g OFDM 64QAM 54 Mbps, EVM <= -27 dB +2
- Data rate
- 36 000 kbps TX, 16QAM OFDM · datasheet p.3 54 000 kbps TX, 64QAM OFDM | 36 000 kbps TX, 802.11g 20 MHz BW, OFDM 16QAM | 54 000 kbps TX, 802.11g 20 MHz BW, OFDM 64QAM | 9 000 kbps TX, 802.11g 20 MHz BW, OFDM BPSK +3
- Modulation
- OFDM, 64QAM datasheet p.3 64QAM 802.11g OFDM power table | OFDM listed among supported signal types; 802.11g power table | OFDM, 16QAM | 16QAM 802.11g OFDM power table +5
- Supply voltage
- 12 V nom. · typ. · datasheet p.1 10 V min · Operating | 28 V max · Operating | 10–28 V operating voltage
- Data interface
- RS-232 5V TTL TX/RX Control Line · datasheet p.2
- Operating temperature
- -40 °C min · datasheet p.2 85 °C max | -40–85 °C housing temperature
- Function
- transceiver datasheet p.0 other bi-directional amplifier (class AB GaN, PA + LNA with Tx/Rx s…
- Link use
- other military and commercial applications · datasheet p.1
- Link protocol
- proprietary datasheet p.1
- RF connector
- SMA RF input, SMA-F · datasheet p.2 SMA RF output, SMA-F
- Connector
- DC/control: 15 pin Micro-D female (Triad cable CBL37) datasheet p.2 15 Pin Micro-D DC / Control Connector | SMA-F / SMA-F RF Connectors (Input / Output)
- Duplex
- half manual or automatic Tx/Rx switching · datasheet p.1
- Channel bandwidth
- 20 000 kHz 802-11G · datasheet p.3 20 000 kHz 802.11g test signal bandwidth
- RF gain
- 12 dB nom. · RX gain, typ. · datasheet p.1 19 dB min · TX gain | 20 dB nom. · TX gain, typ.
- Noise figure
- 1 dB nom. · RX, typ. · datasheet p.1 1.5 dB max · RX
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Frequency low
- 1200 MHz
- Frequency high
- 1400 MHz
- Tx gain
- 20 dB
- Supply voltage (Vdc)
- 10-28
- Rx noise figure
- 1 dB
- Rx gain
- 12 dB
- Output freq lo
- 1200 MHz
- Output freq hi
- 1400 MHz
- Psat (Typ)
- 46
- Dimensions
- 4.93 x 2.53 x 0.7 in
About
The TTRM1116 BDA module has been engineered to support any signal type, from simple CW/FM signals to complex, highly modulated carriers such as 64 and 256QAM. This module uses the latest GaN transistor technology to achieve highly linear power with low distortion, or peak power at high efficiencies to meet any radio system’s requirements. Triad employs the latest RF simulation and design methods to offer products with the lowest size, weight, and DC power consumption in the industry. Features: Over / Under / Reverse Voltage Protection, Manual Gain Control, Manual or Automatic Tx/Rx Switching Available, Internal Bypass Relay, Received Signal Strength Indicator Output. Applications: Simple CW to Highly Modulated Signals, Commercial / Military Radio Systems, Software Defined Radios, General Purpose RF Amplification.
