REAC-053 V2 SX 5kN Nitinol Release Actuator

• Release Load5 kN
• Ultimate Load7.5 kN
• Mass226–230 g

Miniature low-shock resettable HDRA with 5 kN release load using Nitinol (TiNi) shape memory alloy, standard temperature range…

REAC-153 V2 SX 15kN Nitinol Release Actuator

• Release Load15 kN
• Ultimate Load22.5 kN
• Mass300 g

Low-shock resettable HDRA with 15 kN release load using Nitinol shape memory alloy, standard temperature range (-90 to…

REAC-353 V2 EX 35kN SMARQ Release Actuator

• Release Load35 kN
• Ultimate Load52.5 kN
• Proof Load43.5 kN

Low-shock resettable hold-down and release actuator for space with 35 kN release load. SMARQ shape memory alloy, pyro-compatible…

REAC-153 V2 SX 15kN SMARQ Release Actuator

• Release Load15 kN
• Ultimate Load22.5 kN
• Proof Load18.7 kN

Low-shock resettable hold-down and release actuator with 15 kN release load. SMARQ shape memory alloy, standard SX variant,…

REAC-053 V2 SX 5kN SMARQ Release Actuator

• Release Load5 kN
• Ultimate Load7.5 kN
• Mass226–230 g

Miniature low-shock resettable hold-down and release actuator with 5 kN release load. SMARQ shape memory alloy, smallest in…

PAS 432S Separation System

• Interface size17" (432 mm)
• Maximum payload massUp to 200 kg
• Release mechanismCBOD-LT™ Low Shock

Beyond Gravity 17" low-shock clamp band separation system for satellites up to 200 kg, first applied on the…

PAS 381S Separation System

• Interface size15" (381 mm)
• Interface standardESPA 15" compatible
• Release mechanismCBOD™ Low Shock

Beyond Gravity 15" low-shock clamp band separation system for small spacecraft compatible with ESPA 15" adapter interface.

GPOD CubeSat Deployer

• Available sizes1U, 2U, 3U, 3U+, customized
• Deployment targetCubeSats (rail-type)
• InstallationOn rocket or host satellite

GAUSS flexible CubeSat deployer available in 1U, 2U, 3U, 3U+, and customized versions for use aboard rockets or…

SAU&RON Separation System

• Available interfaces8", 15", 24" (ESPA standard)
• Total massStarting from < 1.4 kg
• Ride-ON mass (flyaway)< 0.35 kg

Family of spacecraft separation rings available in 8", 15", and 24" interfaces — low-shock, fully qualified for LEO…

RAMI CubeSat Deployer

• Supported form factors0.25U, 0.5U, 1U, 1.5U, 2U, 3U, 6U, 12U
• Actuator redundancyMultiple redundant actuation lines
• Optional interfaceBattery charging and communication with CubeSat

Reliable and Advanced Mission Injector — modular CubeSat deployer supporting 0.25U to 12U form factors with redundant actuation.

Mercury-6 CubeSat Dispenser

• Form factor6U
• CubeSat typeRail-type
• QualificationNASA GEVS

Lightweight 6U CubeSat dispenser qualified to NASA GEVS levels with flight-proven heritage.

Mercury-12 CubeSat Dispenser

• Form factor12U
• CubeSat typeRail-type
• AvailabilityAvailable Q1 2024

Lightweight 12U CubeSat dispenser accommodating 12U rail-type CubeSats for rideshare missions.

Maverick NLAS Dispenser

• Form factor6U (or 2×3U)
• CubeSat typeRail-type
• HeritageNASA Ames NLAS / Flight-proven

Ruggedized 6U CubeSat dispenser drawing from NASA Ames NLAS heritage, accommodates rail-type or 2×3U CubeSats.

Mercury-3 CubeSat Dispenser

• Form factor3U
• CubeSat typeRail-type
• QualificationNASA GEVS

Lightweight 3U CubeSat dispenser qualified to NASA GEVS qualification levels with flight-proven heritage.

DSOD Satellite Orbital Deployer Series

• Configurations1U, 3U, 6U, 12U, 16U CubeSat
• Release mechanismNon-pyrotechnic HDRM
• TelemetryOnboard sensors for deployment confirmation and ejection velocity

Space-qualified CubeSat orbital deployers (1U, 3U, 6U, 12U, 16U) with non-pyrotechnic HDRM, onboard telemetry sensors, and ISRO PSLV…

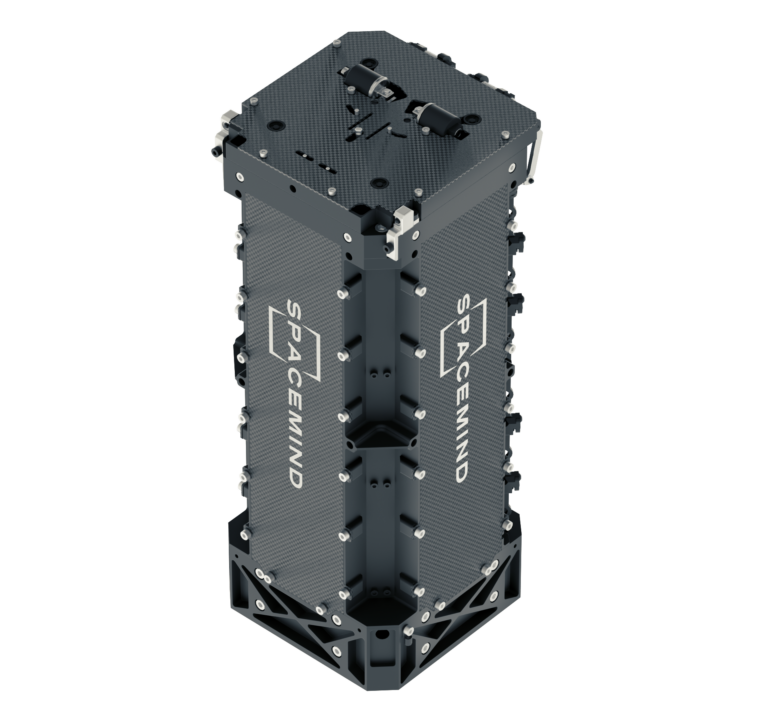

SMPOD03 NOIR CubeSat Deployer

1U–3U CubeSat deployer with redundant fail-safe NEA actuation, redundant deployment confirmation, aluminum + carbon fiber construction, up to…

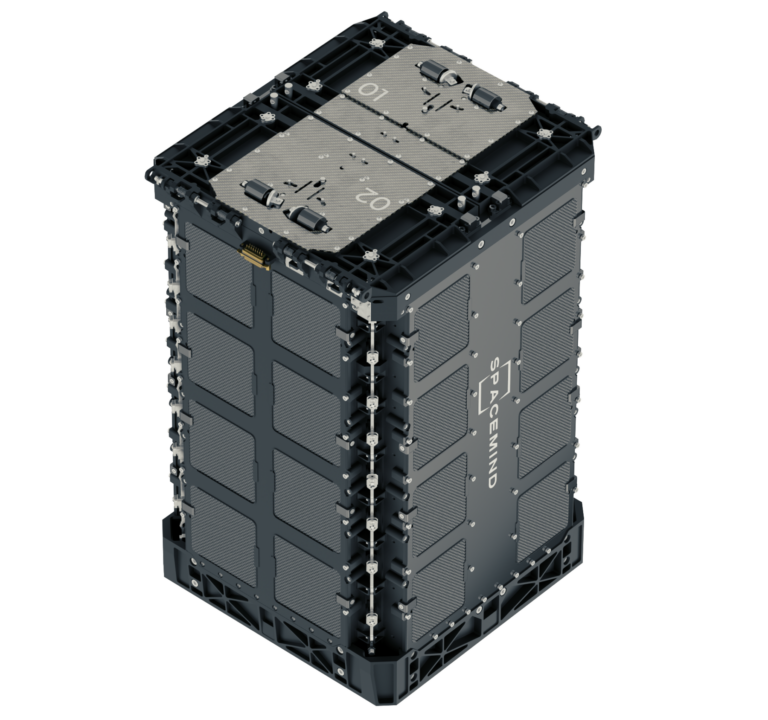

SMPOD16-C CASPIAN Multi-CubeSat Deployer

• CapacityUp to 4 CubeSats (standard and XL dimensions)
• Maximum Payload Size16U per slot
• ClampingUp to 3 rails per CubeSat, dedicated sledge per payload

Multi-CubeSat deployer for up to 4 payloads up to 16U with dedicated sledges per payload, redundant NEA actuation,…

Equalizer Flex

Streamlined integration hardware for rapid orbital deployment (upcoming product, detailed specifications not yet published).
