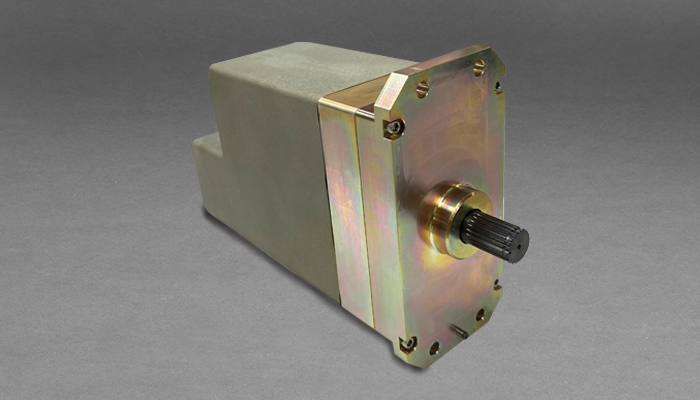

Model 965 Rotary Actuator
Moog Space Defense Group
The Model 965 is a high-torque rotary servo electromechanical actuator that integrates position loop servo control electronics with a digital communications interface, providing angular excursion up to ±90 degrees.
Typed specifications19 values
Discloses 6 of 9 fields engineers filter by in this category (category median 2).
- Mass
- 5.22 kg typ. · Weight · datasheet p.2 5.22 kg
- Travel range per axis
- -90–90 deg electrical stroke, +/-90 +/-1 deg electronically limited · datasheet p.2 -105–105 deg mechanical stroke, +/-105 +/-2 deg non jamming stops
- Output torque
- 282 462.5 mN·m nom. · peak stall torque, electronically limited · datasheet p.2 248 567 mN·m power point @ 45 deg/sec
- Supply voltage
- 21–32 V Operating Voltage · datasheet p.2
- Data interface
- RS-485 4 wire RS-485 full duplex · datasheet p.2
- Operating temperature
- -40–71 °C Operating · datasheet p.2
- Export status
- ITAR falls under the jurisdiction of the ITAR · datasheet p.4
- Mechanism type
- single-axis rotary actuator datasheet p.1
- Axes
- 1 datasheet p.1
- Motor type
- brushless DC (BLDC) brushless permanent magnet motor with integrated holding brake · datasheet p.2
- Backlash
- 1 deg max · with +/-125 lb-in reversing torque · datasheet p.2
- Holding torque (unpowered)
- 15 mN·m max · unpowered backdrive torque · datasheet p.2
- Drive electronics
- integrated integrated position servo loop control electronics · datasheet p.2
- Satellite class
- CubeSat datasheet
- Slew speed
- 70 °/s no load @ 28 VDC · datasheet p.2 45 °/s power point at 2,200 lb-in
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Operating Voltage
- 21 to 32 VDC
- Operating Temperature Range
- -40° to +71° C
- Operating Altitude Range
- 11,500 to 38,000 ft
- Weight
- 11.5 lb max
- Mechanical Stroke
- ±105 ±2° non jamming stops
- Electrical Stroke
- ±90 ±1°- electronically limited
- No Load Speed @ 28 VDC
- 70° / sec
About
The Model 965 Rotary Servo Actuator is one of the highest torque rotary servo electromechanical actuators available, featuring integrated position loop servo control electronics and a digital communications interface. This actuator provides an angular excursion up to ±90 degrees in its current configuration. Customers can program the positional state of the actuator in case of communication loss, offering flexibility for system integration. Key features include integrated position servo loop control with digital communications, non-jamming mechanical stops, a brushless permanent magnet motor design with an integrated holding brake, high temperature capability, and electronic stops that limit input command. It also utilizes a four-wire RS-485 full duplex signal interface. The robust structural design, mechanical stops, and low weight to power performance are significant benefits, and the actuator is customizable. Typical applications include control surfaces requiring servo actuation in unmanned air vehicles (tactical, medium long endurance, MALE/HALE), target drones (control surfaces, speed brakes), utility actuation (throttle control, doors, spoilers), and electric aircraft, eVTOL, eSTOL, air taxis, and urban air mobility vehicles for tilting mechanisms, flight control, and landing gear.
