Propulsion — Space Hardware Marketplace

VACCO V1E10689-01 ½” Bi-Directional Latch Valve-Low Pressure

A flight-qualified ½” bi-directional low-pressure latch valve with all-titanium construction, two integral microswitches, and a cycle life exceeding…

VACCO V1E10453-01 3/8” Low Pressure Propellant Latch Valve

A flight-qualified, all-titanium 3/8-inch low-pressure propellant latch valve with a 150,000 cycle life, designed for high reliability and…

VACCO V1E10362-01 Low Pressure Dual Coil 3/8” Latch Valve

A 3/8” low-pressure latch valve with dual coils for redundancy, featuring all-titanium construction, flight qualification, and an integral…

VACCO V1E10691-01 ½” Bi-Directional Latch Valve-Low Pressure

A ½” bi-directional latch valve designed for low-pressure applications, featuring all-titanium construction and proven torque tube technology for…

VACCO V1E10454-01 ¼” Low Pressure Latch Valve

A flight-qualified, all-titanium 1/4-inch low-pressure latch valve designed for high reliability and quick response, featuring a 40µ absolute…

VACCO V1E10405-05 Low Pressure ¼” Latch Valve

A flight-qualified, all-titanium 1/4" low-pressure latch valve with an integral microswitch, designed for high reliability and quick response.

VACCO V1E10405-04 Low Pressure ¼” Latch Valve

A flight-qualified, all-titanium 1/4" low-pressure latch valve with an integral microswitch, designed for high reliability and quick response.

VACCO V1E10362-04 Low Pressure Dual Coil 3/8” Latch Valve

A flight-qualified, all-titanium 3/8” latch valve with dual coils for redundancy, designed for high reliability and tight leakage…

Check Valves and Relief Valves

• ConfigurationsSingle, parallel, and series redundant
• Relief Valve TypeSingle-seat, non-propulsive
• Flight HeritageGPS-III, Cygnus, SLS, Boeing HS601/702, SDO, H-ITV

VACCO's flight-qualified check valves and relief valves provide fluid control and system protection for satellite and spacecraft propulsion…

VACCO Propellant Latch Valve

• Operating Pressureup to 5000 psia (350 bar)
• FlowLow to High
• Introduction Year1988

The VACCO Propellant Latch Valve is a fluid control component designed for spacecraft and satellite applications, offering variations…

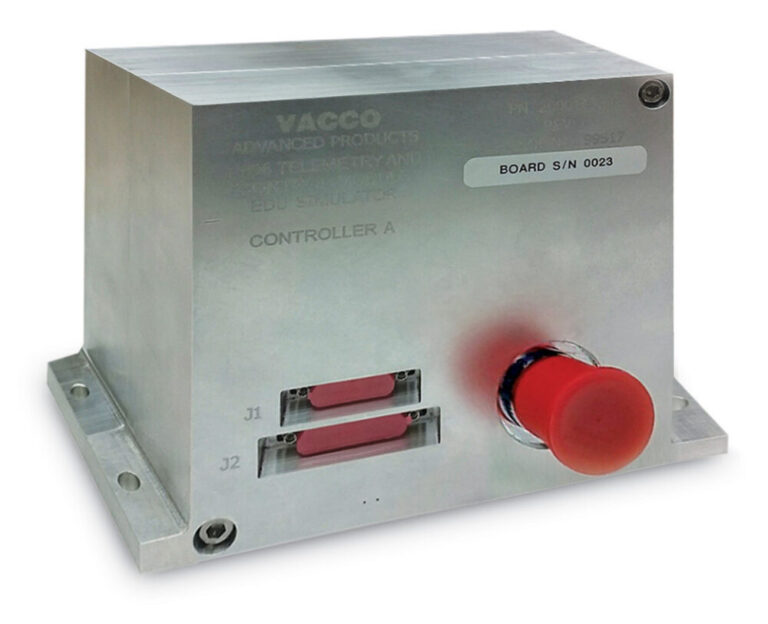

Redundant SmallSat Propulsion Controller

• Valve drivers10 valve drivers with automatic stepdown voltage (per controller)
• Heater drivers10 Heater Drivers (per controller)
• Temperature sensing4 Thermistors & 10 Thermocouples (per controller)

A fully redundant, radiation-tolerant propulsion system controller module from VACCO optimized for SmallSats and CubeSats, providing independent primary…

NASA C-POD Micro Propulsion System

The NASA C-POD Micro Propulsion System is a self-contained reaction control module designed for 3U CubeSats, providing precise…

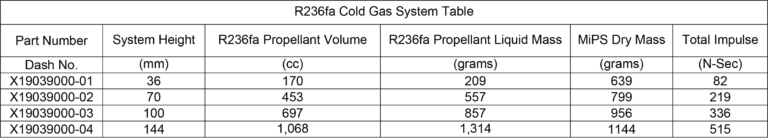

Standard Micro Propulsion System (MiPS)

VACCO's Standard MiPS is a modular cold gas propulsion system providing attitude control and delta-V for CubeSats and…

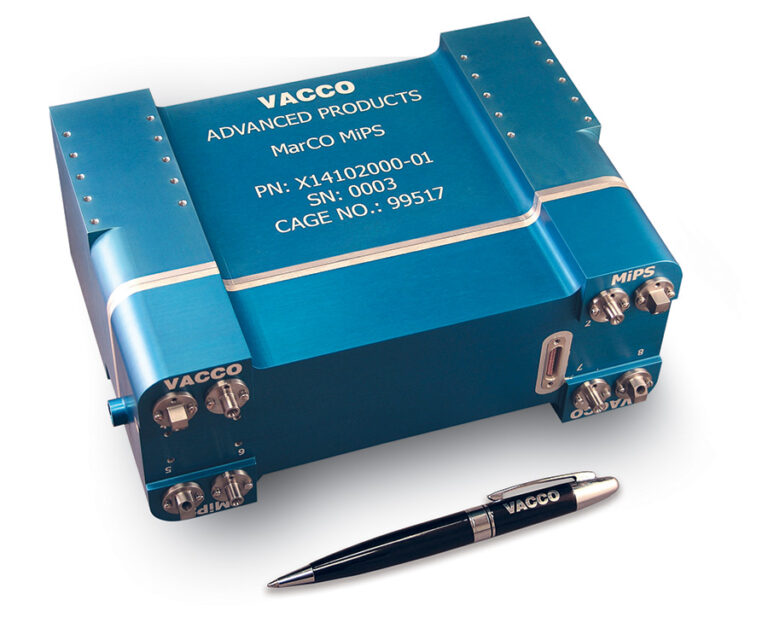

VACCO JPL MarCO Micro Propulsion System

The VACCO JPL MarCO Micro Propulsion System is a smart, self-contained propulsion module designed for 6U CubeSats, featuring…

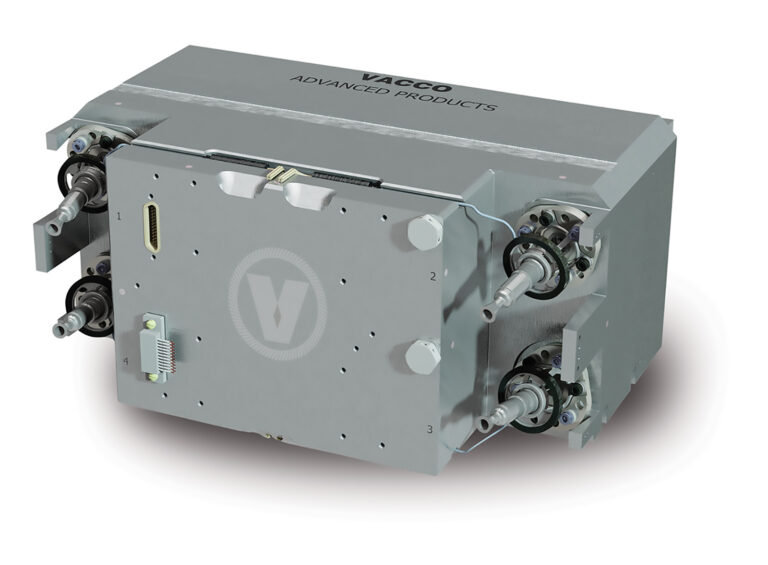

Green mono-propellant Micro Propulsion System (MiPS)

The VACCO Green MiPS is a self-contained 3U mono-propellant propulsion system for CubeSats, featuring four 100 mN thrusters…

Integrated Propulsion System (IPS)

VACCO's Integrated Propulsion System (IPS) is a complete, bolt-on propulsion module for SmallSats, providing attitude control and delta-V…

VACCO ArgoMoon MiPS

The VACCO ArgoMoon MiPS is a hybrid micro propulsion system combining green mono-propellant and cold gas propulsion for…

VACCO Surface Tension Elements / Propellant Management Devices (PMD)

• TechnologyWintec fine woven metal mesh surface tension elements (STE)
• FunctionGas/liquid separation for propellant management devices (PMD) in zero gravity
• ApplicationsSatellite propellant tank PMDs, cruise missile fuel systems

Wintec fine-mesh surface tension elements that separate free gas from liquid propellant for zero-gravity propellant management devices in…
